Tire Pressure Warning System








TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code.

Tire Pressure Warning System

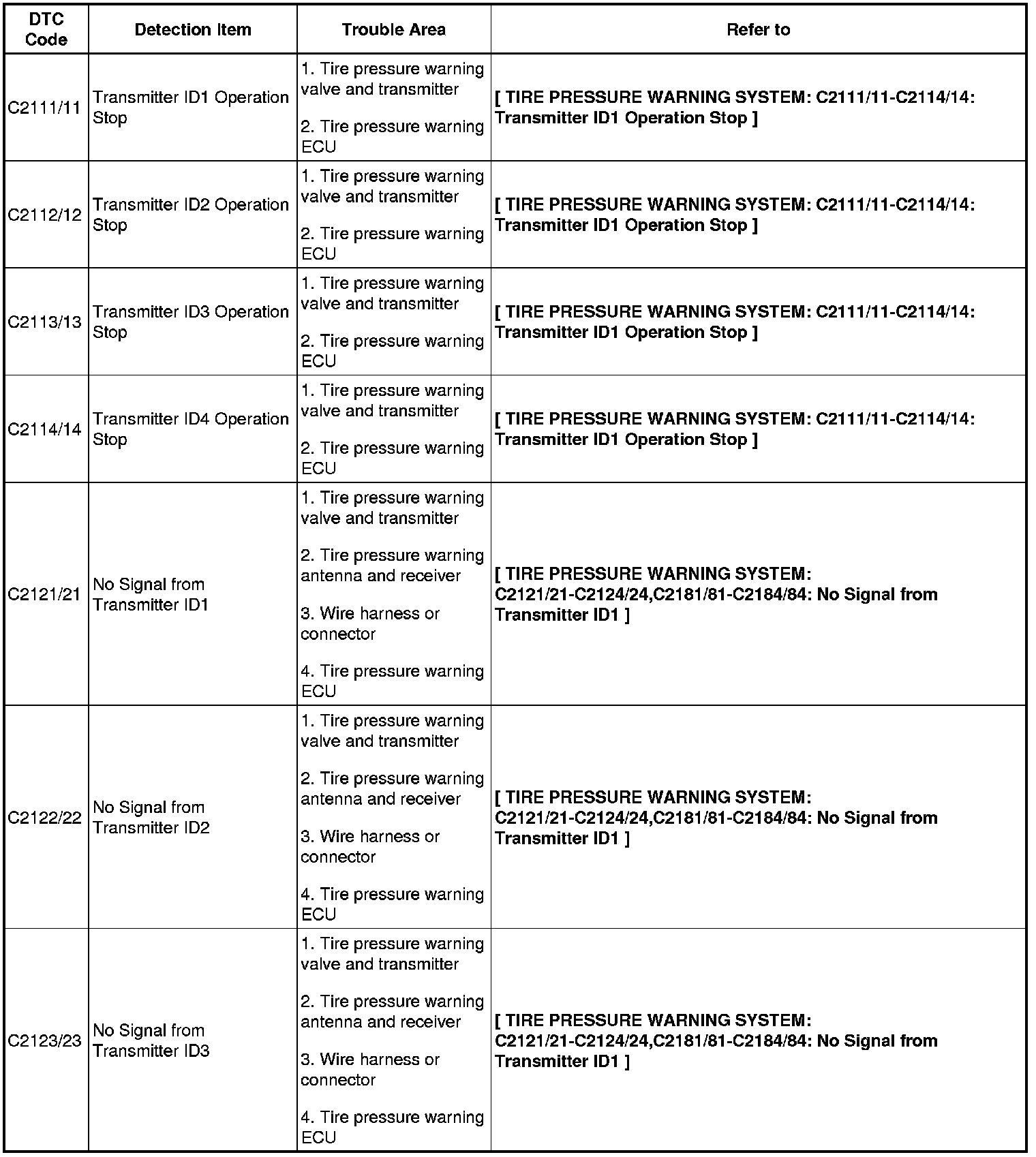

C2111 - C2123:

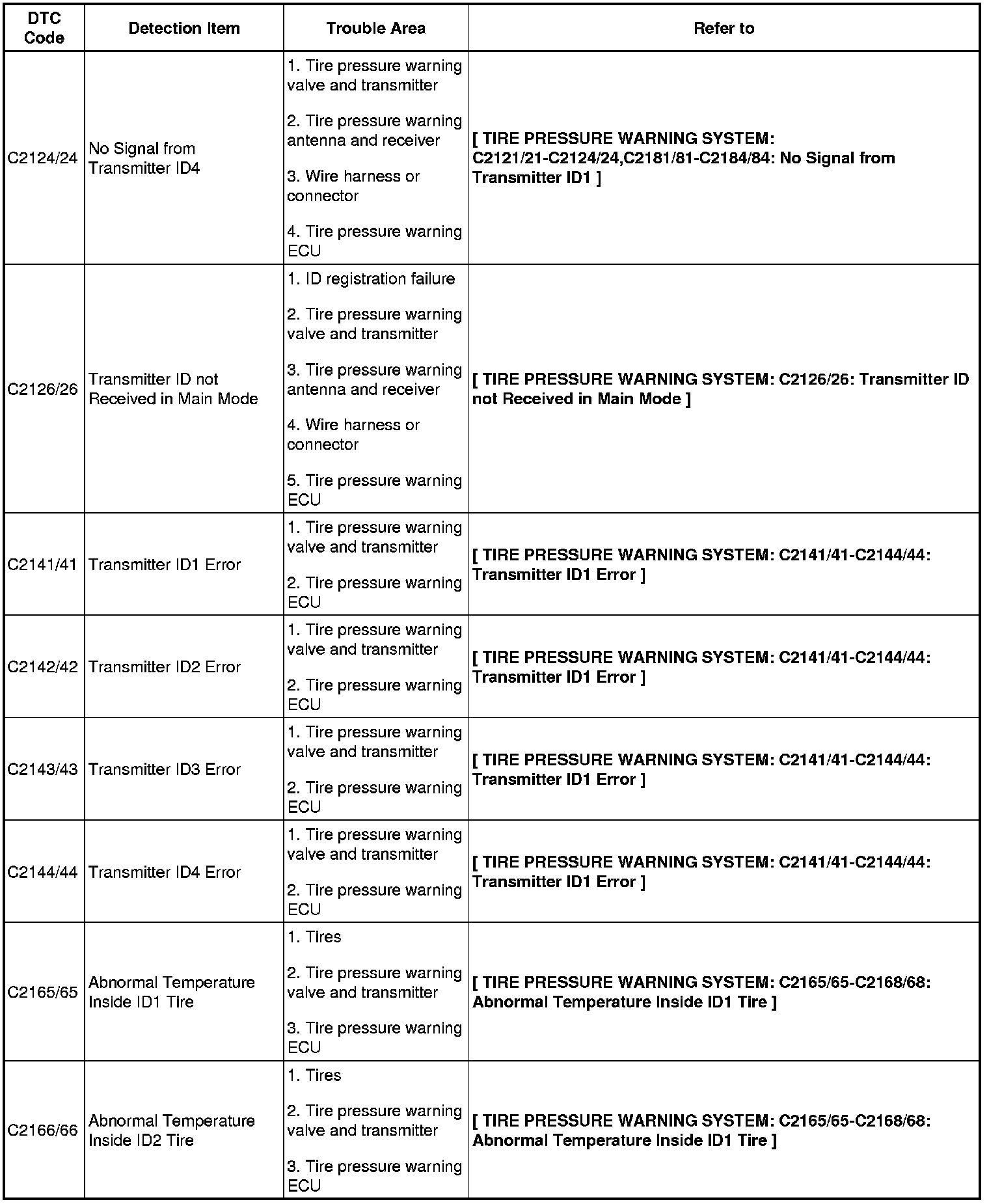

C2124 - C2166:

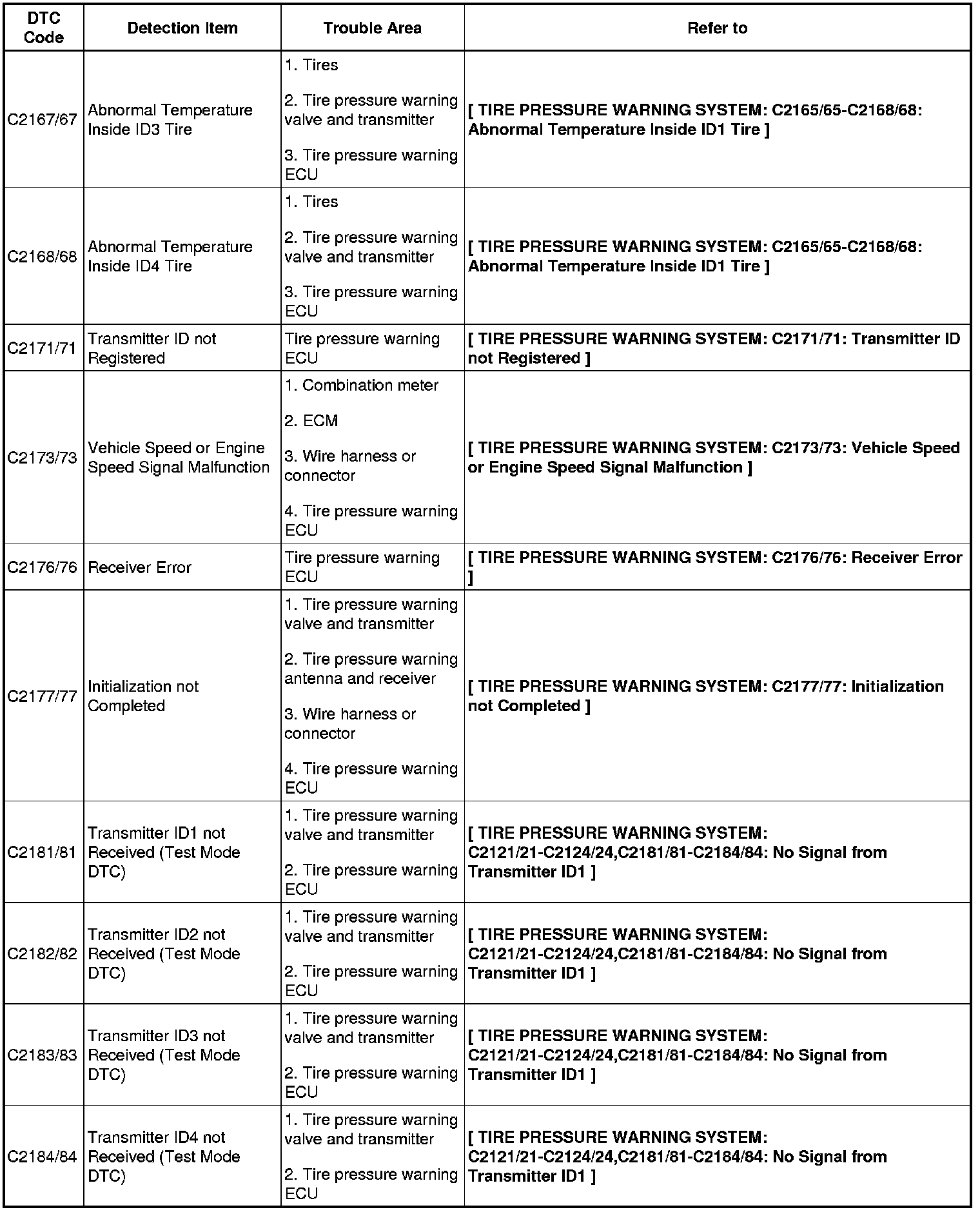

C2167 - C2184:

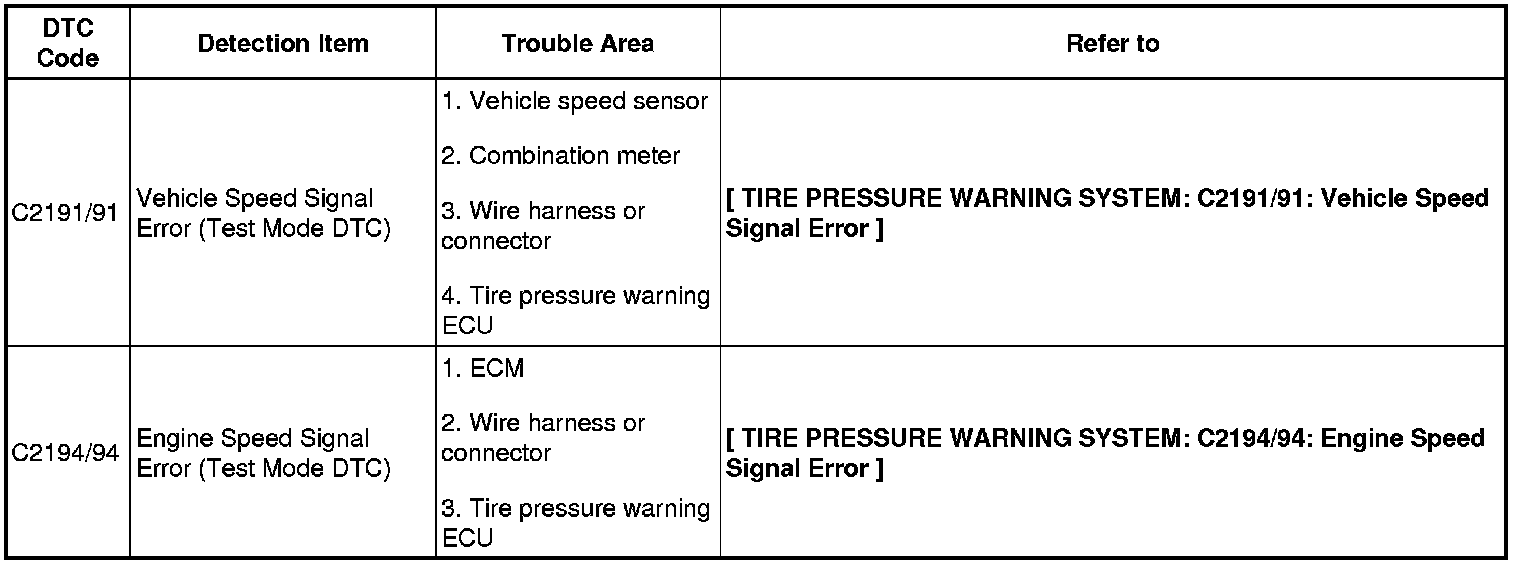

C2191 - C2194:
