AUDIO / VIDEO: RADIO ANTENNA CORD: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
5. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
6. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Removal
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Removal
8. REMOVE COMBINATION METER ASSEMBLY Removal
9. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) Removal
10. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) Removal
11. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag) Removal
12. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag) Removal
13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Removal
14. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
15. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
16. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY Removal
17. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal
18. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY Removal
19. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal
20. REMOVE RADIO RECEIVER WITH BRACKET (w/o Navigation System) Removal
21. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Navigation System) Removal
22. REMOVE NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System) Removal

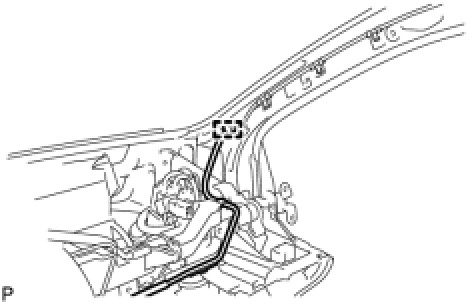

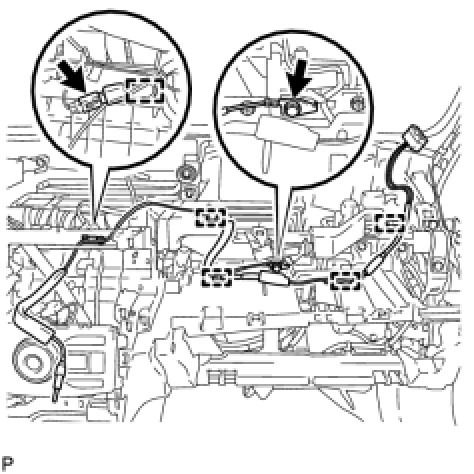

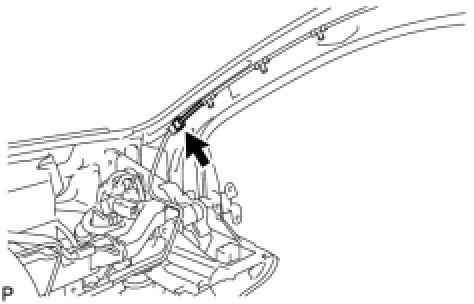

23. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY





(a) Disconnect the connector.





(b) Disengage the clamp.





(c) Remove the bolt.
(d) Disconnect the connector.
(e) Disengage the 5 clamps and remove the No. 2 antenna cord sub-assembly.
