AUDIO / VIDEO: RADIO RECEIVER: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
5. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Removal
6. REMOVE RADIO RECEIVER WITH BRACKET

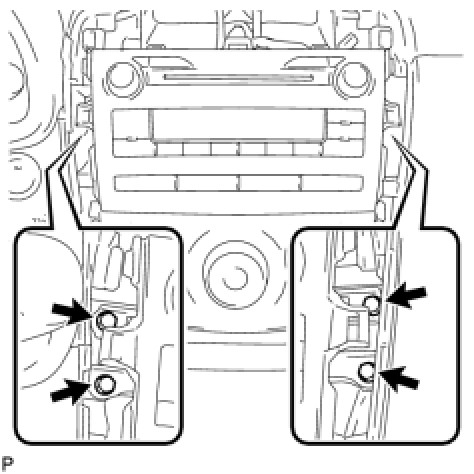

(a) Remove the 4 bolts.

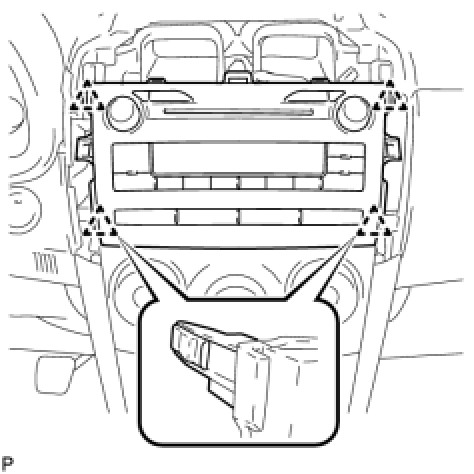

(b) Pull the radio receiver with bracket toward the rear of the vehicle and disengage the 4 clips.
(c) Disconnect each connector and remove the radio receiver with bracket.
7. REMOVE NO. 2 RADIO BRACKET

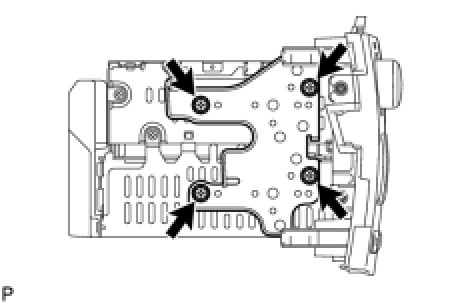

(a) Remove the 4 screws and No. 2 radio bracket.
8. REMOVE NO. 1 RADIO BRACKET





(a) Remove the 4 screws and No. 1 radio bracket.
9. REMOVE RADIO RECEIVER ASSEMBLY
