AUDIO / VIDEO: REAR PACKAGE TRAY SPEAKER: REMOVAL

REMOVAL

1. REMOVE SPARE WHEEL COVER Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY LH
3. REMOVE REAR SEAT HEADREST ASSEMBLY RH
4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
5. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
6. REMOVE REAR SEATBACK ASSEMBLY LH Removal
7. REMOVE REAR SEATBACK ASSEMBLY RH Removal
8. REMOVE REAR DOOR SCUFF PLATE LH Removal
9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR SEAT SIDE GARNISH LH Removal
11. REMOVE ROOF SIDE INNER GARNISH BOARD LH Removal
12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal
13. REMOVE REAR DOOR SCUFF PLATE RH Removal
14. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
15. REMOVE REAR SEAT SIDE GARNISH RH Removal
16. REMOVE ROOF SIDE INNER GARNISH BOARD RH Removal
17. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH Removal
18. REMOVE PACKAGE TRAY TRIM BELT HOLE COVER Removal
19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Spoiler) Removal
20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Spoiler) Removal

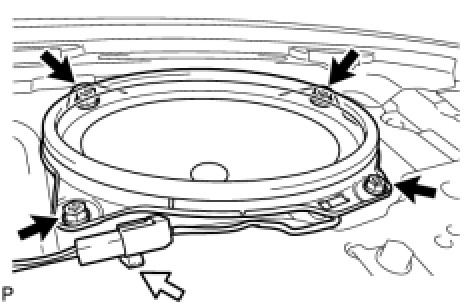

21. REMOVE REAR SPEAKER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 4 bolts and rear speaker assembly.
NOTE: Do not touch the cone part of the speaker.
