Pinout Values and Diagnostic Parameters

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

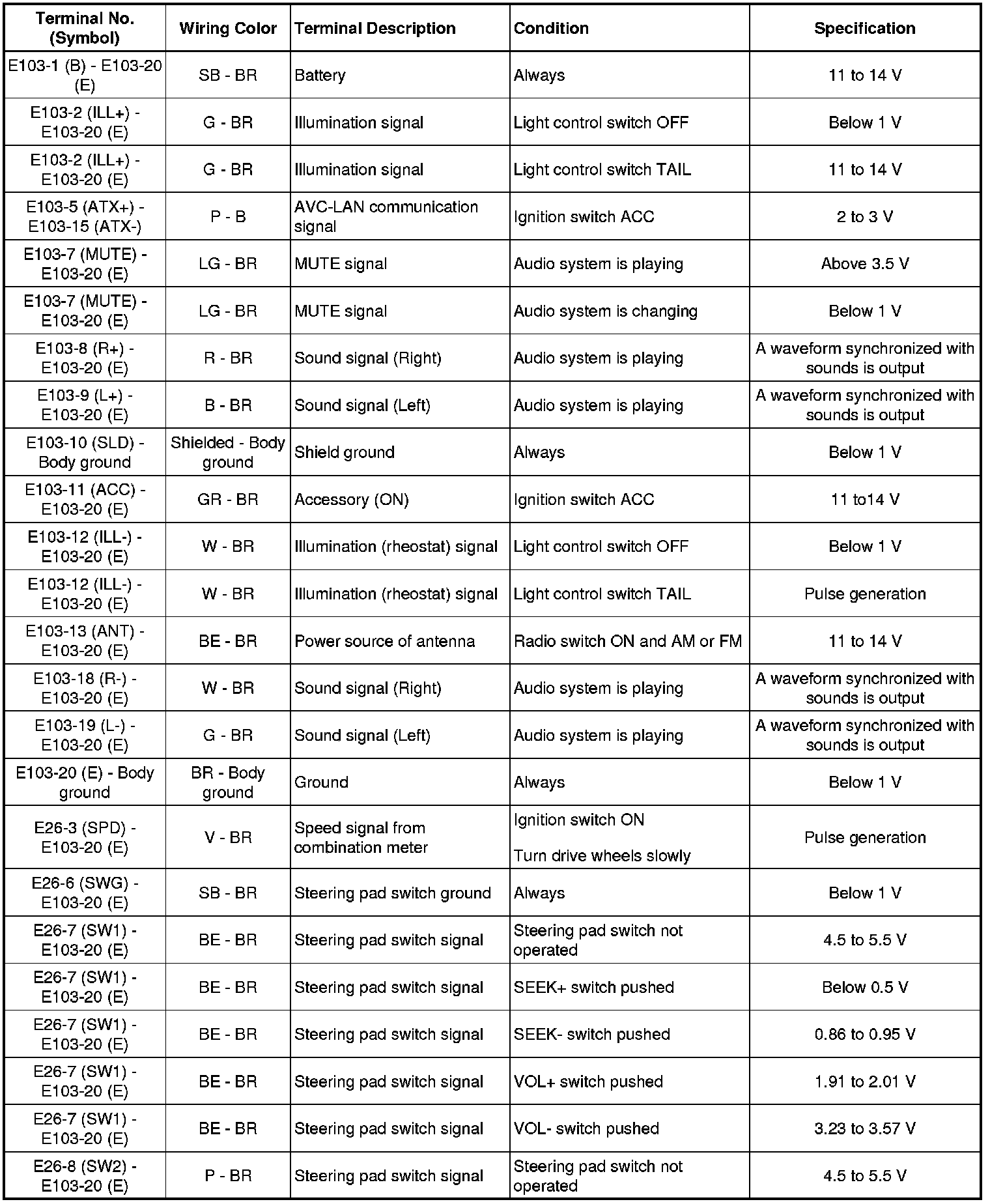

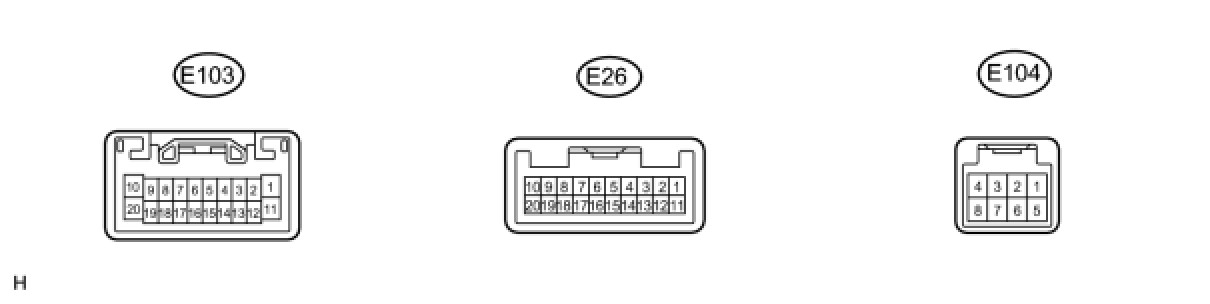

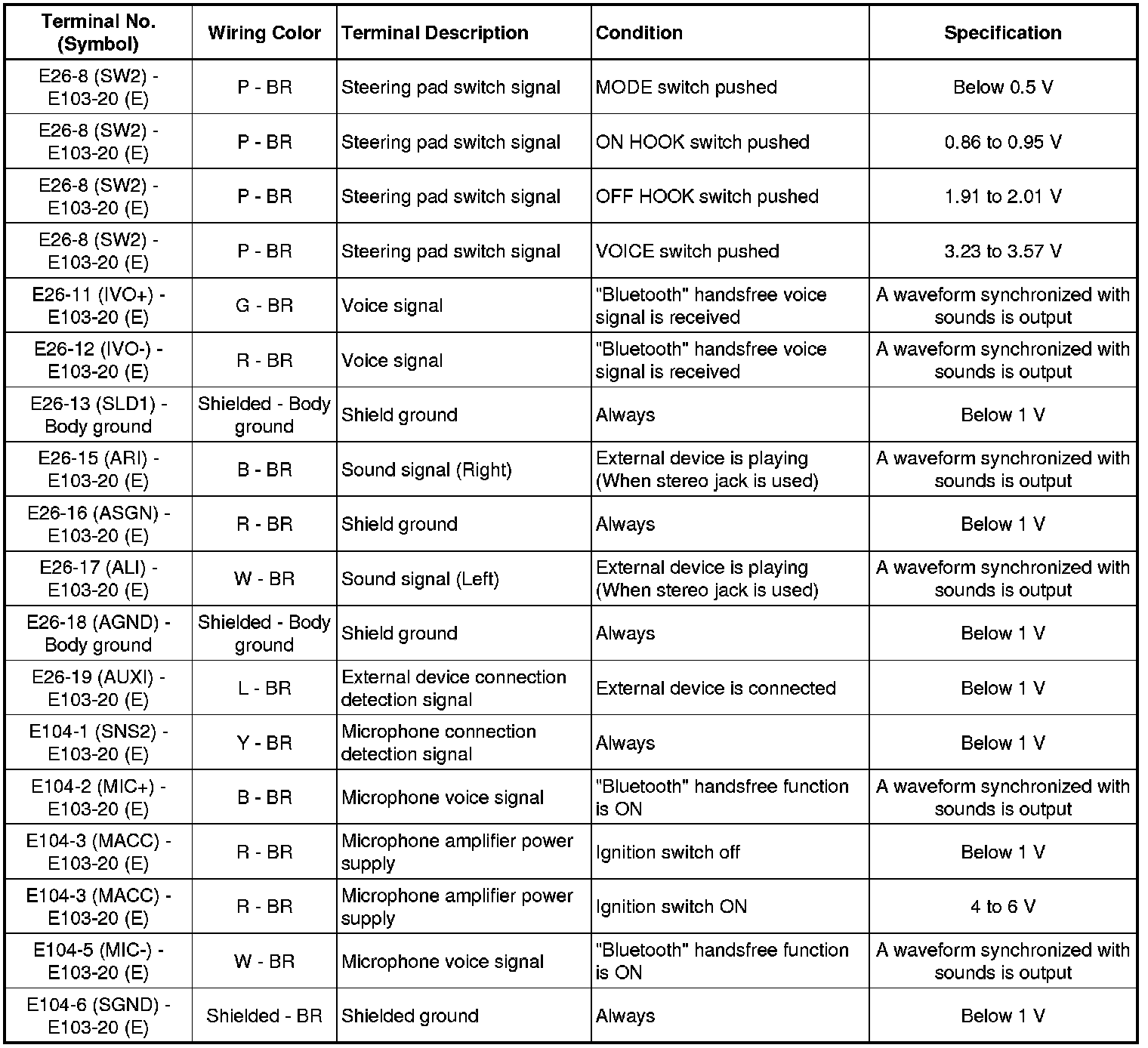

1. RADIO RECEIVER (for 8 Speakers)

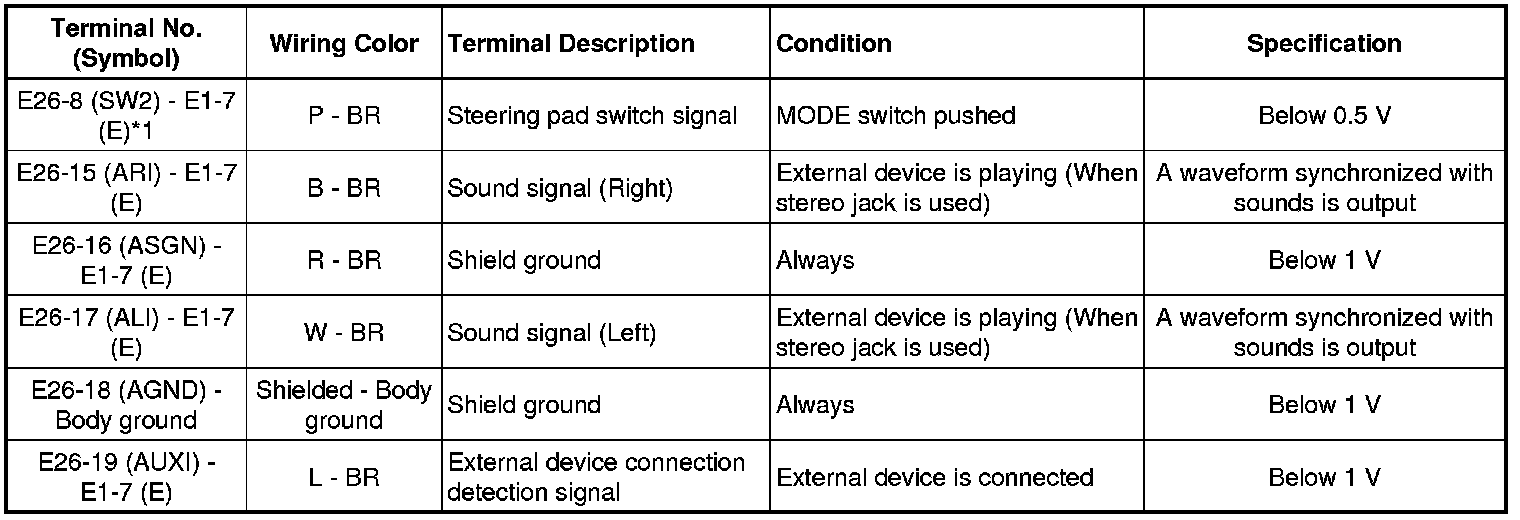

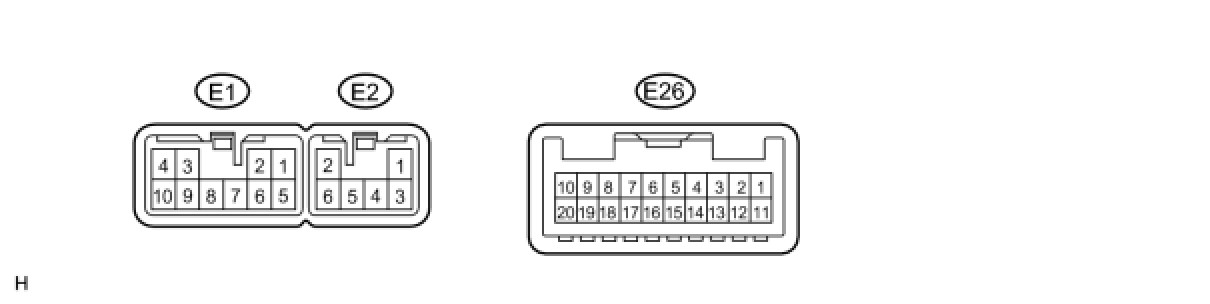

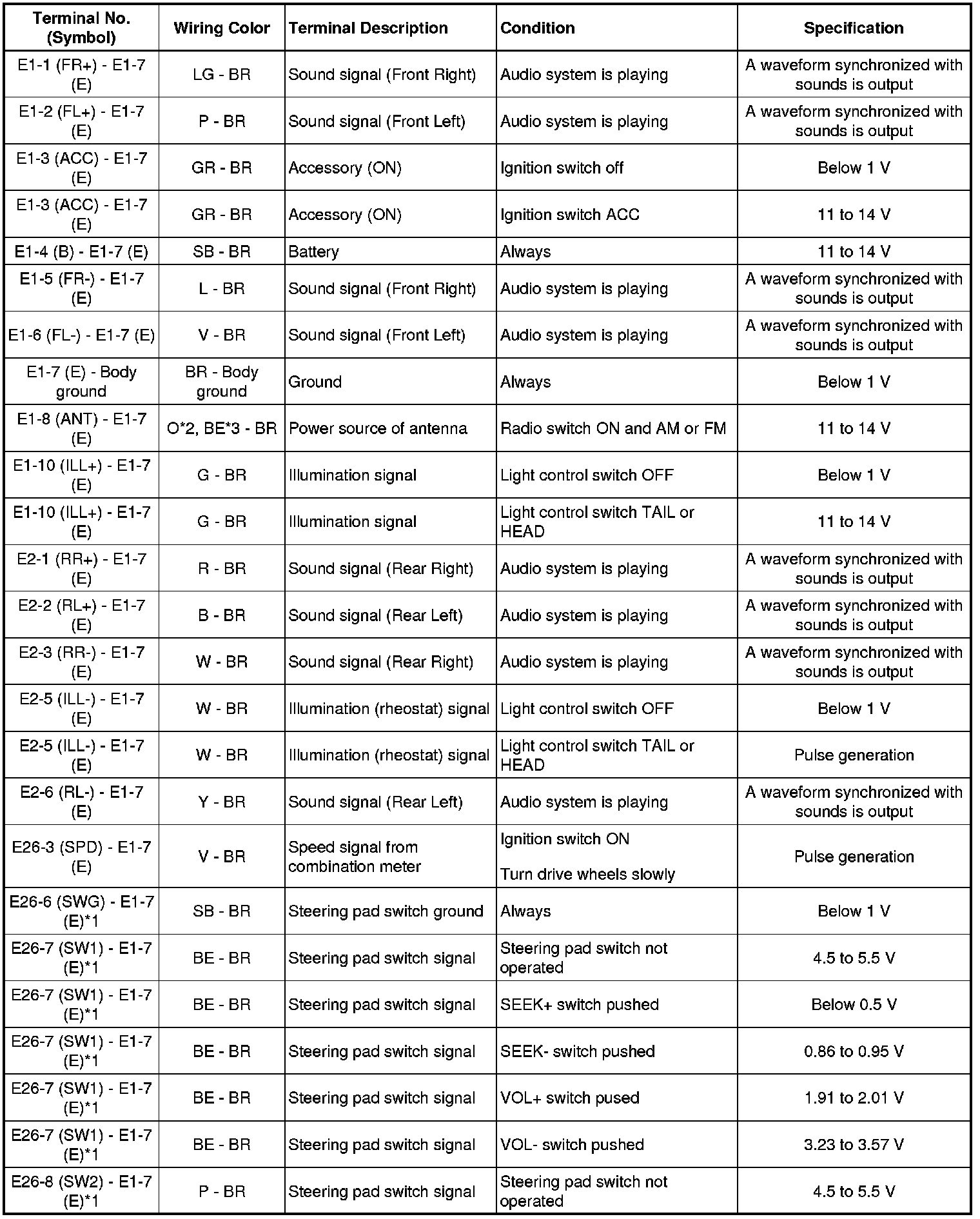

2. RADIO RECEIVER (Except for 8 Speakers)













- *1: w/ Steering Pad Switch
- *2: TMC Made
- *3: Except TMC Made

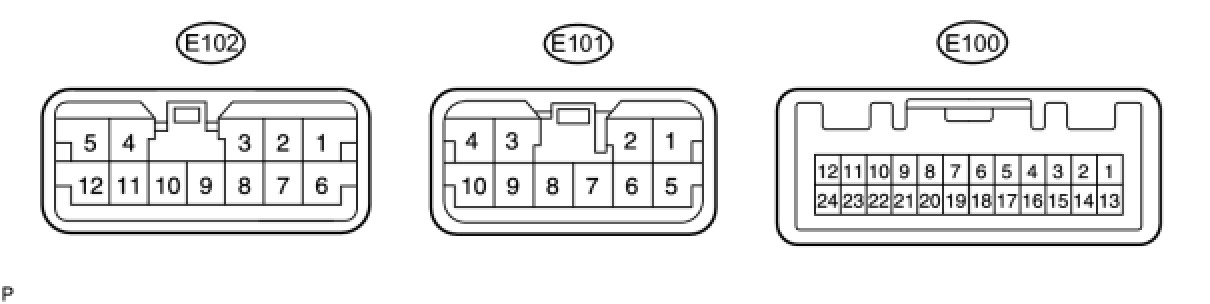

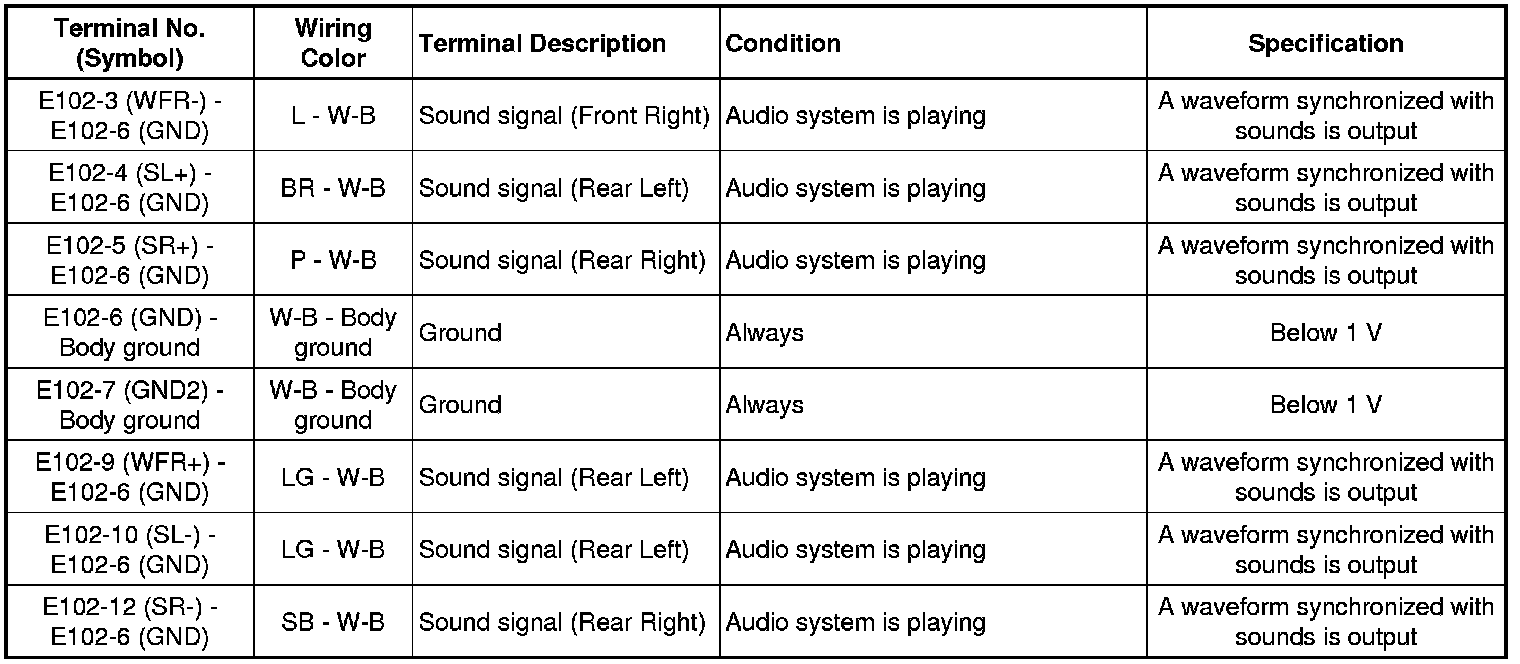

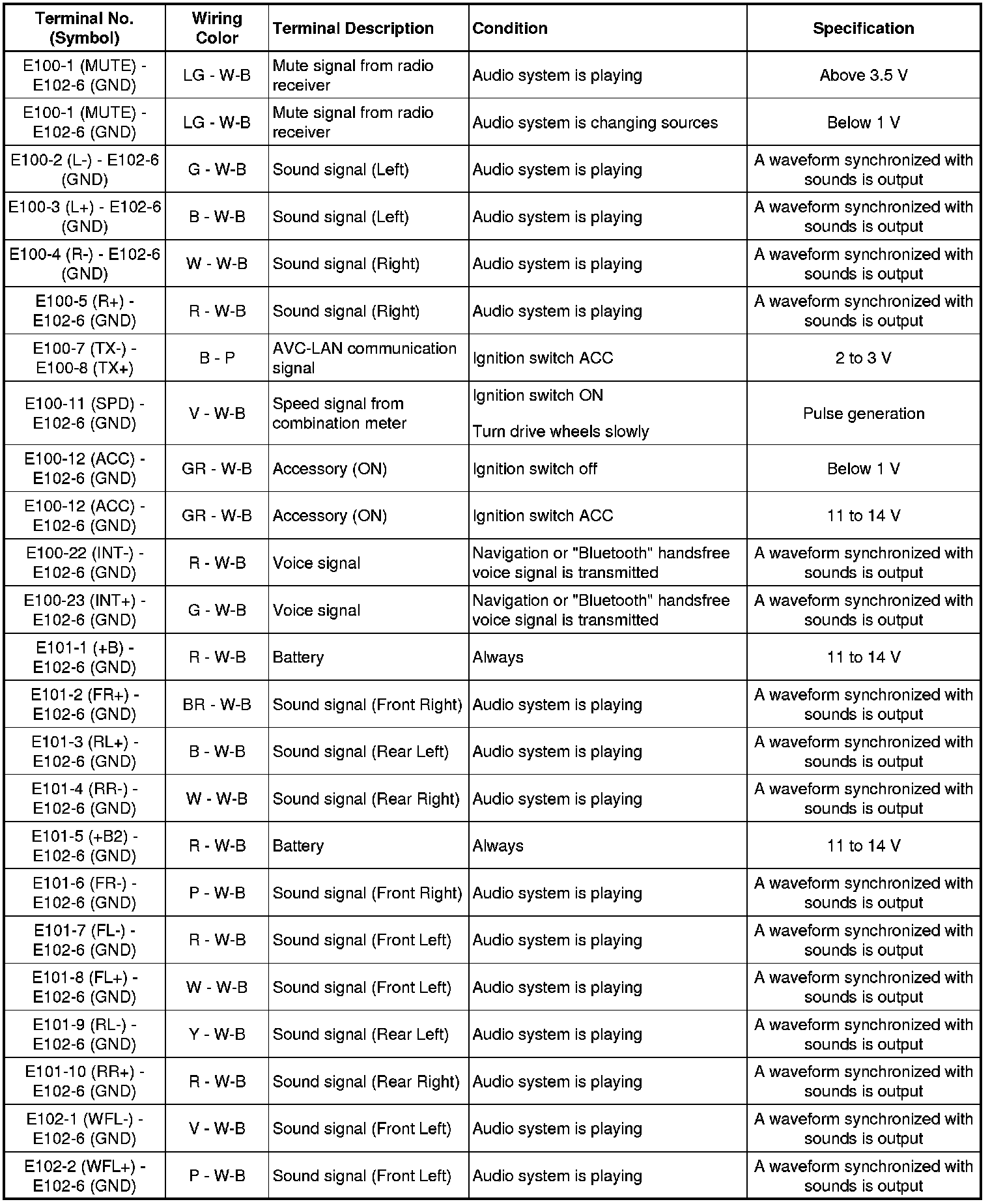

3. STEREO COMPONENT AMPLIFIER (for 8 Speakers)
