Removal

EXTERIOR PANELS / TRIM: REAR BUMPER: REMOVAL

REMOVAL

1. REMOVE REAR QUARTER PANEL MUDGUARD LH (w/ Rear Fender Mudguard)

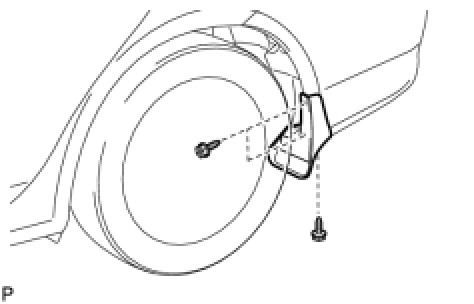

(a) Remove the 3 screws and rear quarter panel mudguard LH.
2. REMOVE REAR QUARTER PANEL MUDGUARD RH (w/ Rear Fender Mudguard)
HINT: Use the same procedure for the RH side and LH side.

3. REMOVE REAR BUMPER ASSEMBLY

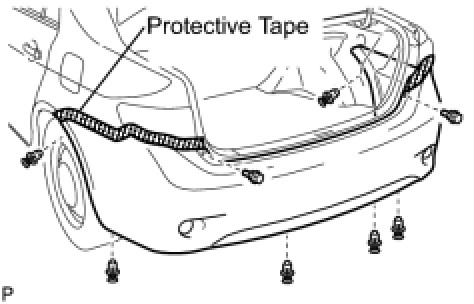

(a) Put protective tape around the rear bumper assembly.
(b) Remove the 6 clips and 2 bolts.

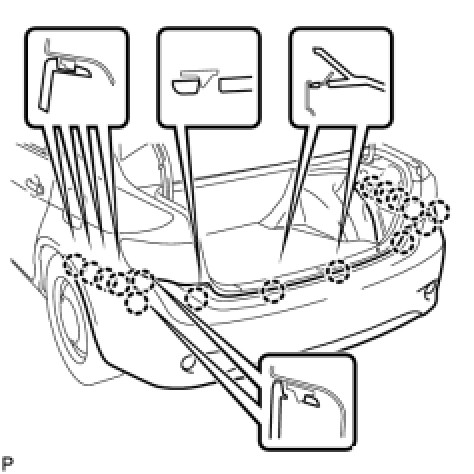

(c) Disengage the 16 claws and remove the rear bumper assembly.
