Removal








INTERIOR PANELS / TRIM: LOWER INSTRUMENT PANEL: REMOVAL

REMOVAL

1. PRECAUTION
Lower Instrument Panel
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
7. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Removal
8. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Removal
9. REMOVE COMBINATION METER ASSEMBLY Removal
10. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) Removal
11. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) Removal
12. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)
HINT: Use the same procedure for the RH side and LH side.

13. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag) Removal
14. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Removal
15. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal
16. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal
17. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY Removal
18. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT: Use the same procedure for the RH side and LH side.

19. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY Removal
20. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal
21. REMOVE RADIO RECEIVER WITH BRACKET (w/o Navigation System) Removal

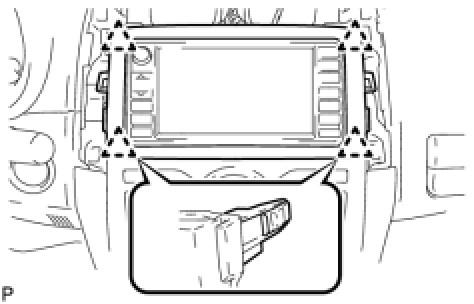

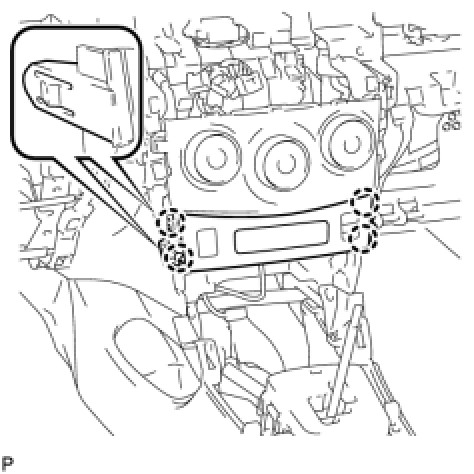

22. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Navigation System)





(a) Disengage the 4 clips and remove the center instrument cluster finish panel sub-assembly.
23. REMOVE NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System) Removal

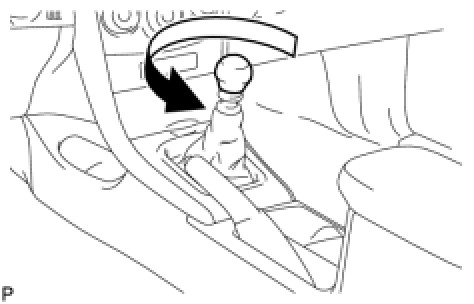

24. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)





(a) Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

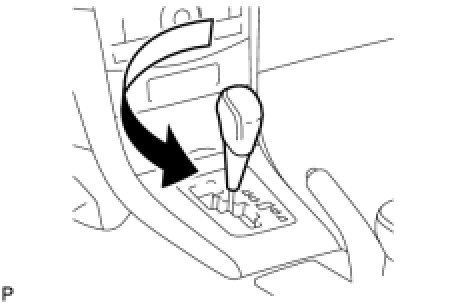

25. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)





(a) Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.

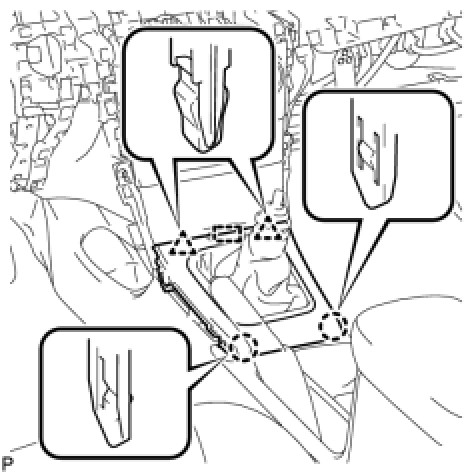

26. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)





(a) Disengage the 2 claws and 2 clips.
(b) Disengage the guide and remove the center No.1 instrument cluster finish panel assembly.

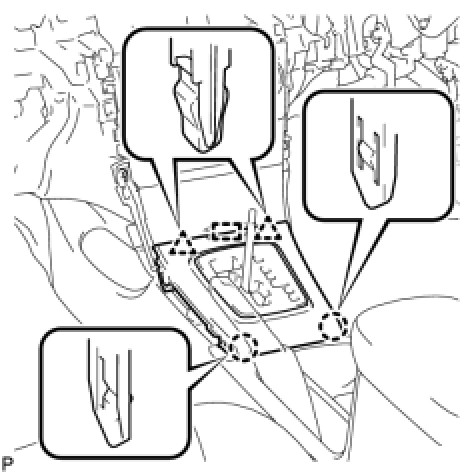

27. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)





(a) Disengage the 2 claws and 2 clips.
(b) Disengage the guide and remove the center No.1 instrument cluster finish panel assembly.

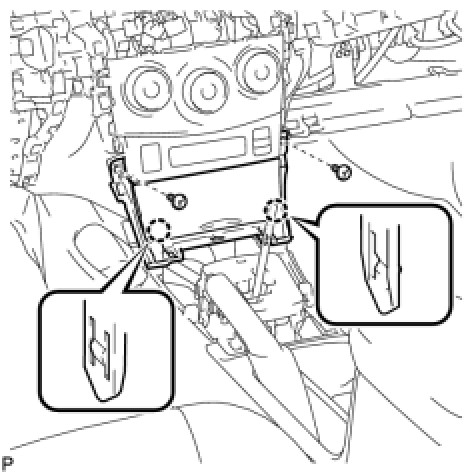

28. REMOVE INSTRUMENT PANEL BOX ASSEMBLY





(a) Remove the 2 screws [B].
(b) Disengage the 2 claws.
(c) Disconnect the connector and remove the instrument panel box assembly.
29. REMOVE INSTRUMENT PANEL HOLE COVER





(a) Disengage the 4 claws.
(b) Disconnect each connector and remove the instrument panel hole cover.
30. REMOVE AIR CONDITIONING PANEL ASSEMBLY (for Manual Air Conditioning System) Removal
31. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System) Removal
32. REMOVE FRONT DOOR SCUFF PLATE LH Removal
33. REMOVE COWL SIDE TRIM BOARD LH Removal
34. REMOVE FRONT NO. 1 CONSOLE BOX INSERT





(a) Disengage the 3 claws.
(b) Disengage the guide and remove the front No. 1 console box insert.

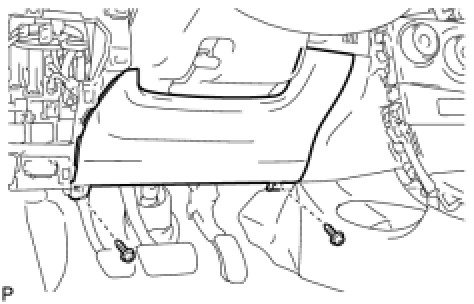

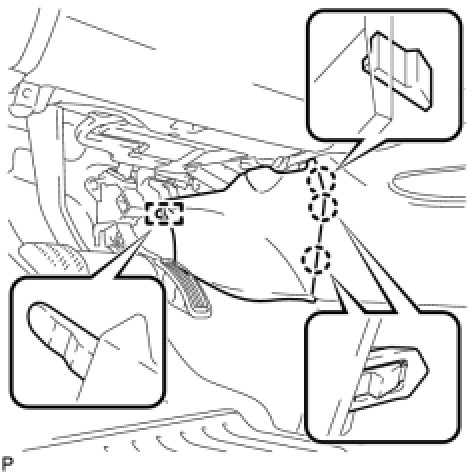

35. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY





(a) Remove the 2 screws [B].

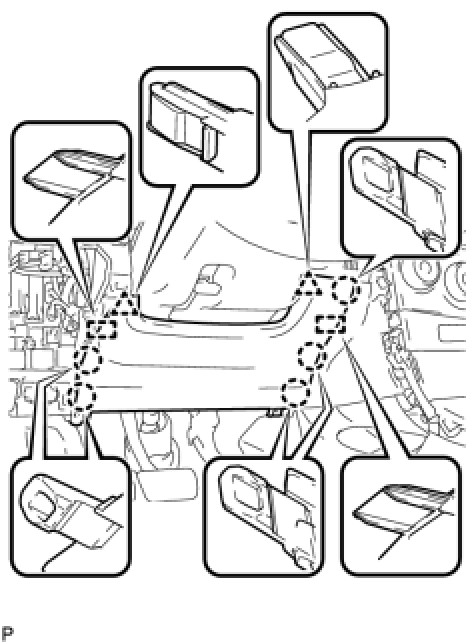

(b) Disengage the 5 claws, 2 guides and 2 clips, and then remove the lower instrument panel finish panel sub-assembly.

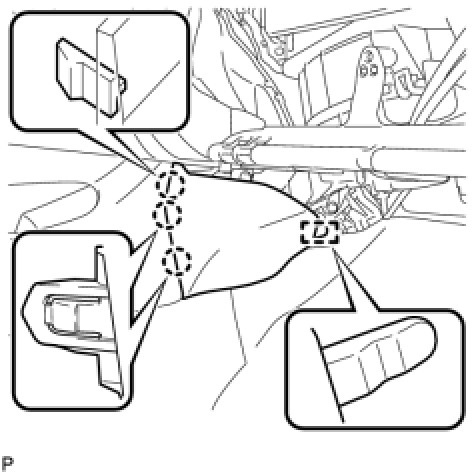

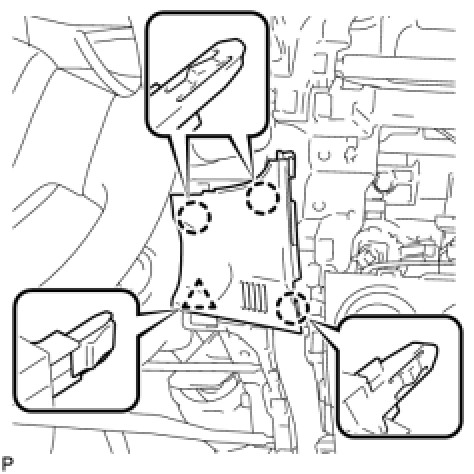

36. REMOVE NO. 1 SWITCH HOLE BASE (w/o Smart Key System)





(a) Disengage the 3 claws and clip, and then remove the No. 1 switch hole base.

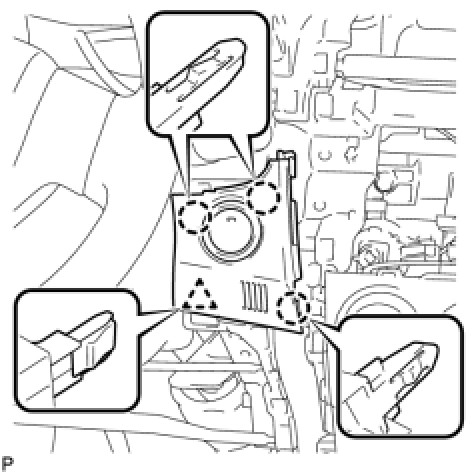

37. REMOVE NO. 1 SWITCH HOLE BASE (w/ Smart Key System)





(a) Disengage the 3 claws and clip.
(b) Disconnect the connector and remove the No. 1 switch hole base.
38. REMOVE FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and LH side.

39. REMOVE COWL SIDE TRIM BOARD RH
HINT: Use the same procedure for the RH side and LH side.

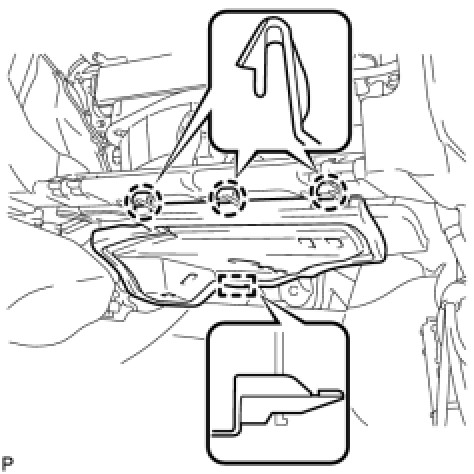

40. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)





(a) Disengage the 3 claws.
(b) Disengage the guide and remove the No. 2 instrument panel under cover sub-assembly.
41. REMOVE FRONT NO. 2 CONSOLE BOX INSERT





(a) Disengage the 3 claws.
(b) Disengage the guide and remove the front No. 2 console box insert.
42. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal
43. REMOVE CONSOLE BOX CARPET Removal
44. REMOVE CONSOLE BOX ASSEMBLY (for Manual Transaxle) Removal
45. REMOVE CONSOLE BOX ASSEMBLY (for Automatic Transaxle) Removal
46. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY Removal

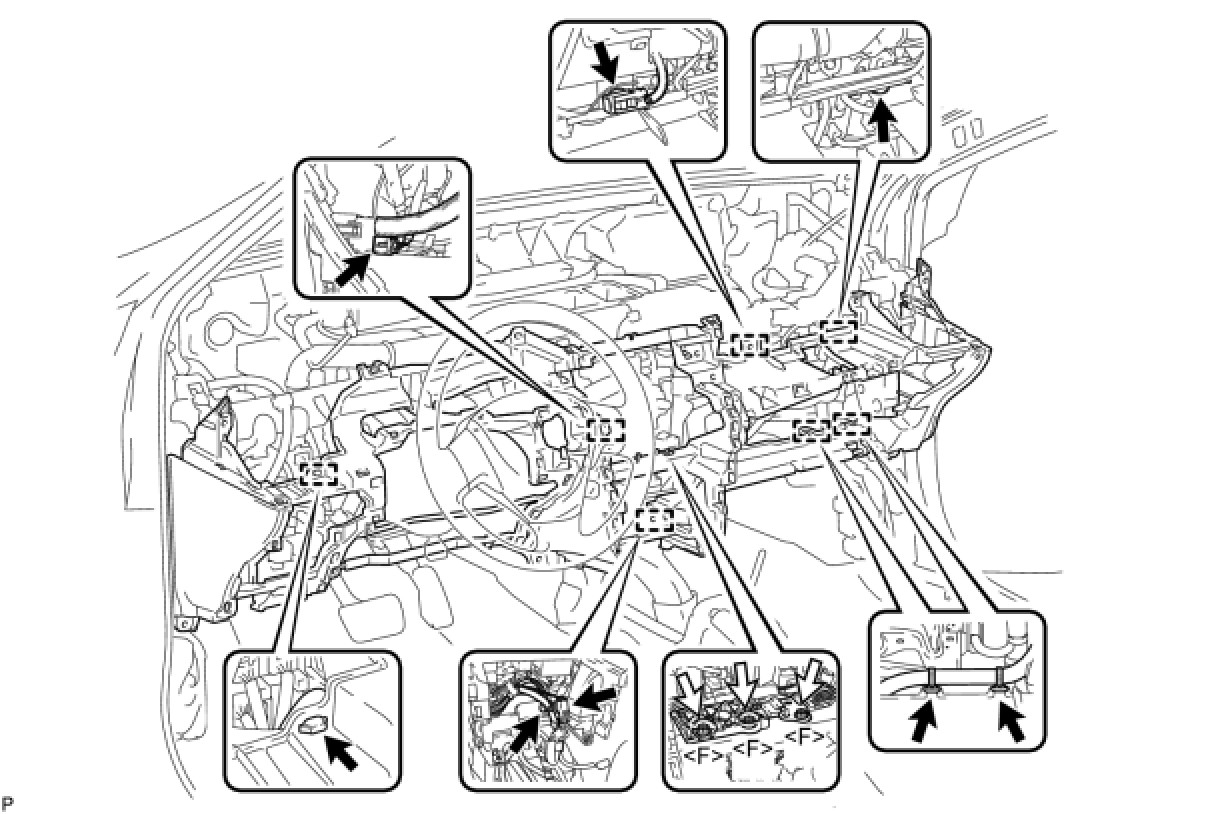

47. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

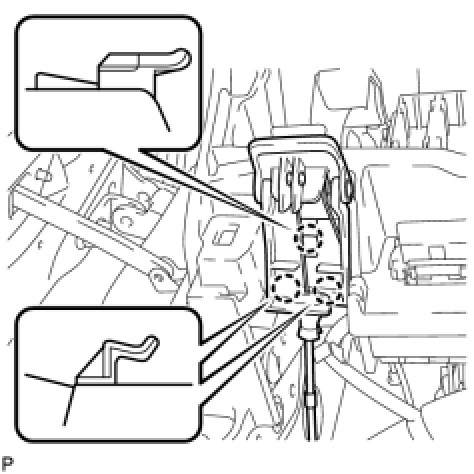

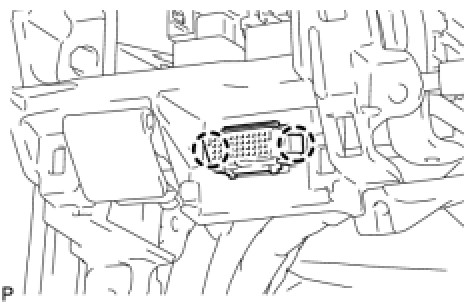

(a) Disengage the 2 claws and DLC3.





(b) Disengage the 3 claws and remove the hood lock control cable assembly.
(c) Disengage each clamp.
(d) Disconnect each connector.

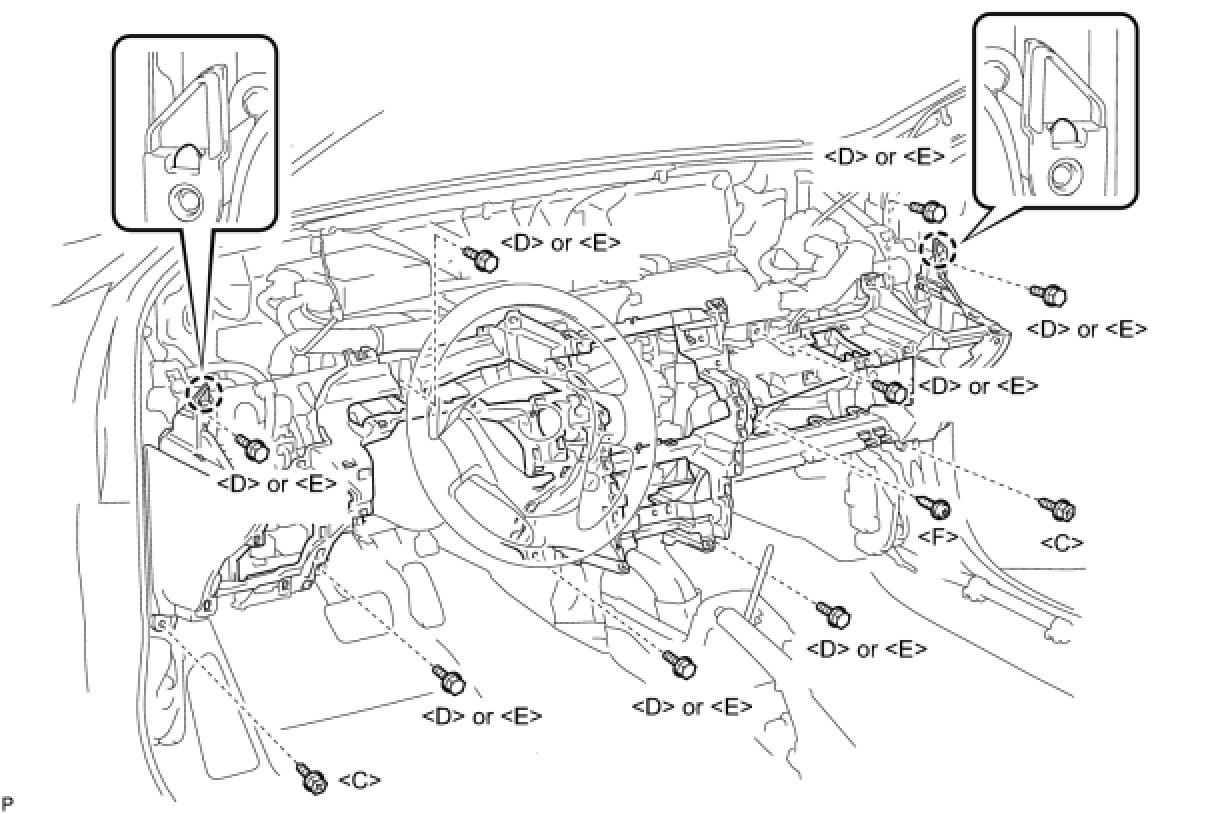

(e) Remove the 3 screws [F].





(f) Remove the screw [F].
(g) Remove the 2 bolts [C].
(h) Remove the 8 screws [D] or [E].
(i) Disengage the 2 claws and remove the lower instrument panel sub-assembly.
