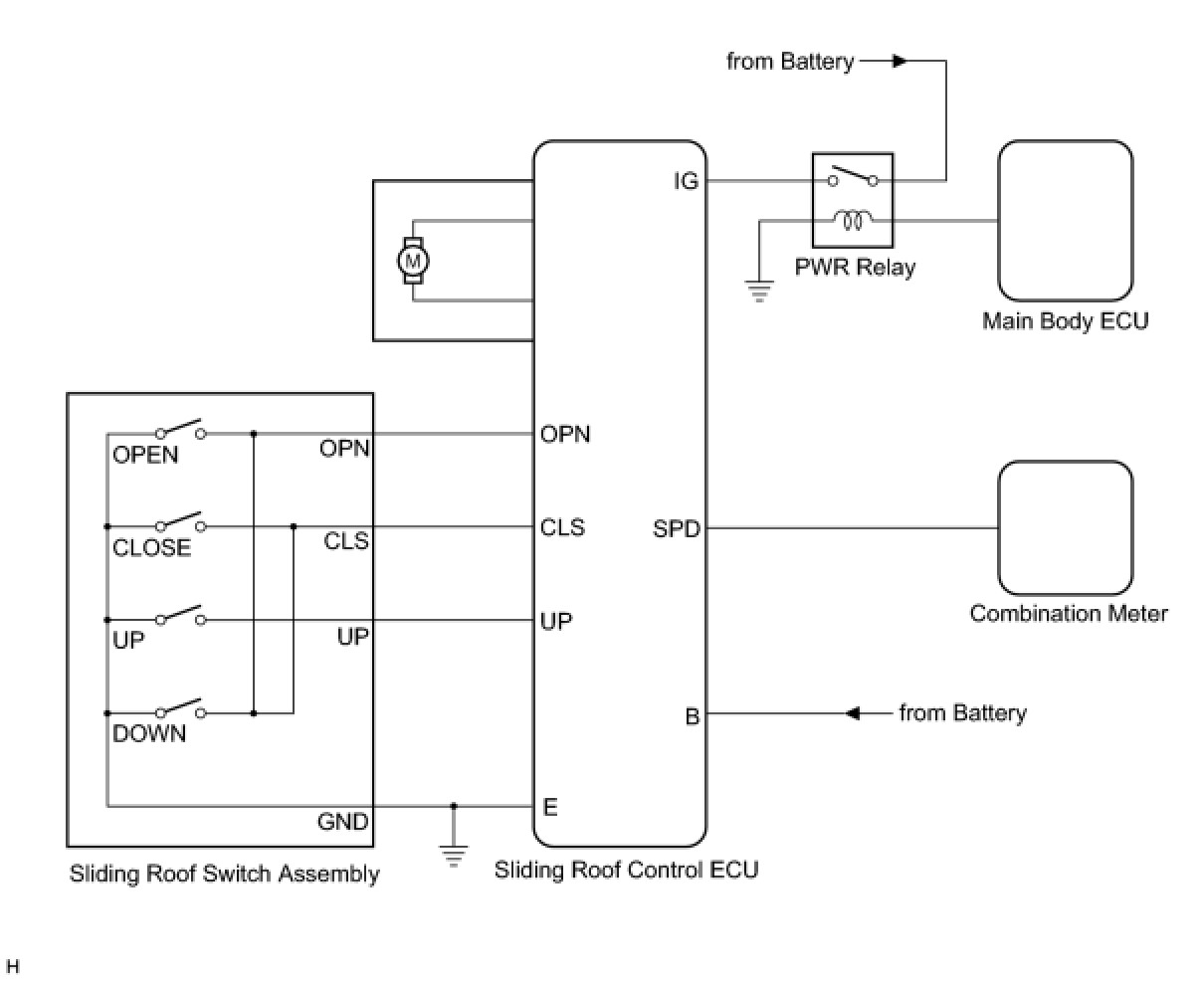

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM






SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL

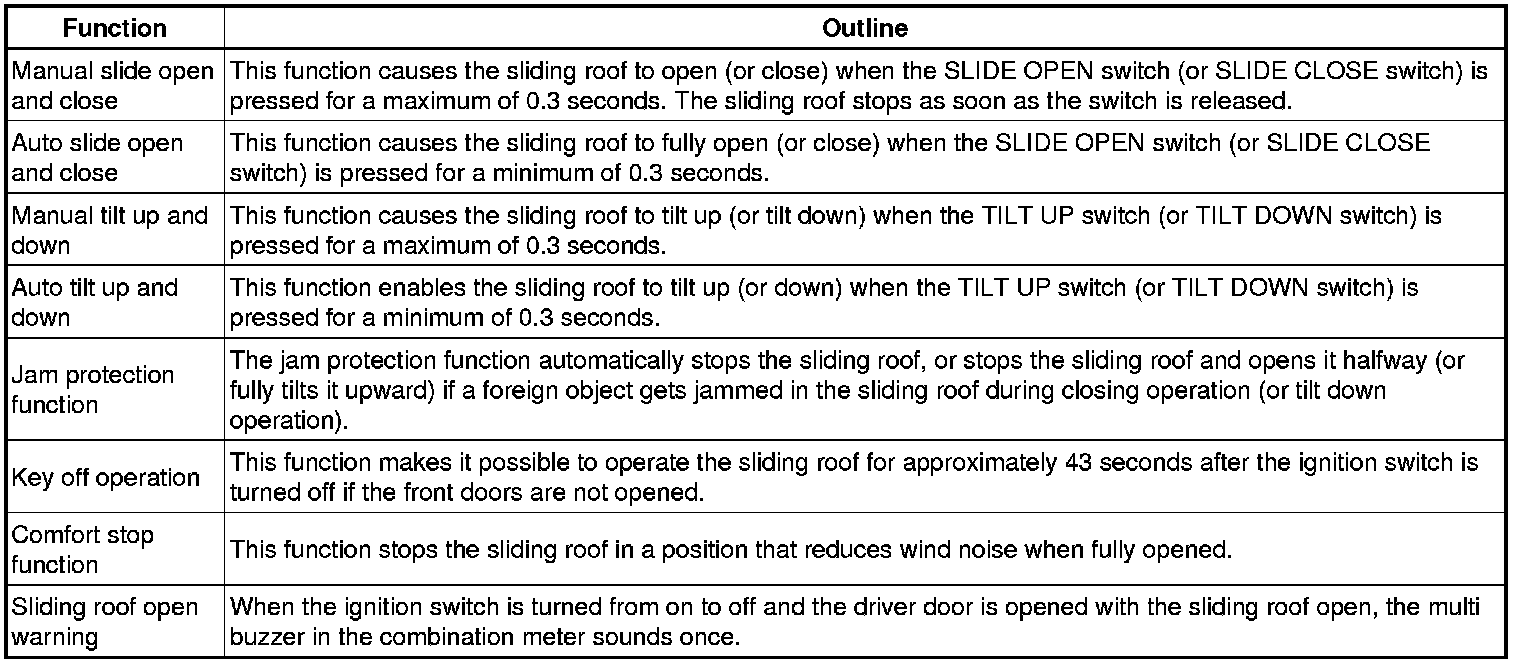

This system has the following functions: manual slide open and close, auto slide open and close, manual tilt up and down, auto tilt up and down, jam protection, and key off operation.

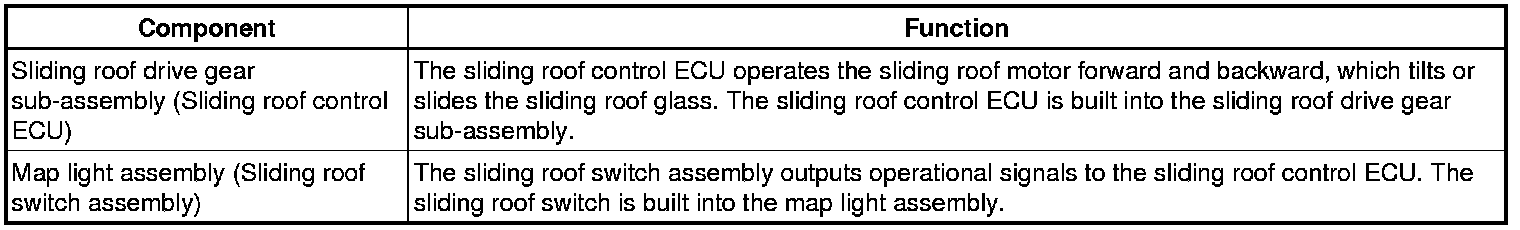

2. FUNCTION OF MAIN COMPONENT






3. SYSTEM OPERATION
The sliding roof has the following features.
