Disassembly

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: DISASSEMBLY

DISASSEMBLY

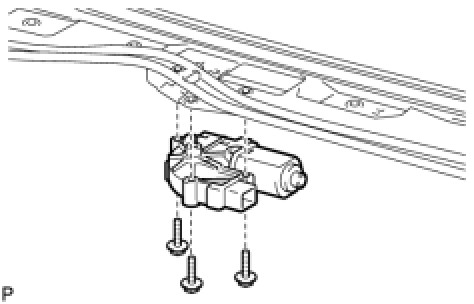

1. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY





(a) Remove the 3 bolts and sliding roof drive gear sub-assembly.

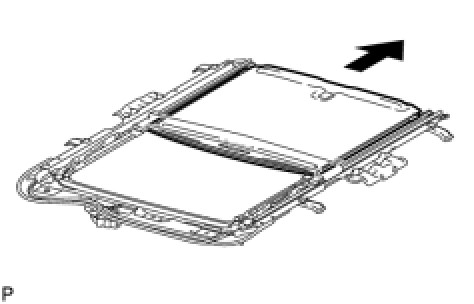

2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY





(a) Slide and remove the sunshade trim sub-assembly.
