Reassembly

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: REASSEMBLY

REASSEMBLY

1. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

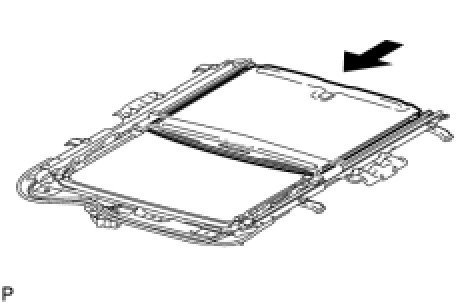

(a) Insert the sunshade trim into the sliding roof housing sub-assembly.
2. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY





(a) Install the sliding roof drive gear sub-assembly with the 3 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
