Power Seat Motor: Testing and Inspection

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY





(a) Check the operation of the lumbar support adjuster.

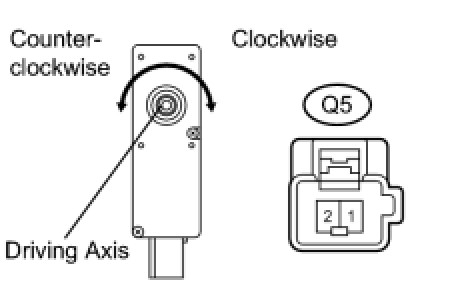

(1) Check if the lumbar support adjuster operates smoothly when the battery voltage is applied to the lumbar support adjuster motor connector terminals.

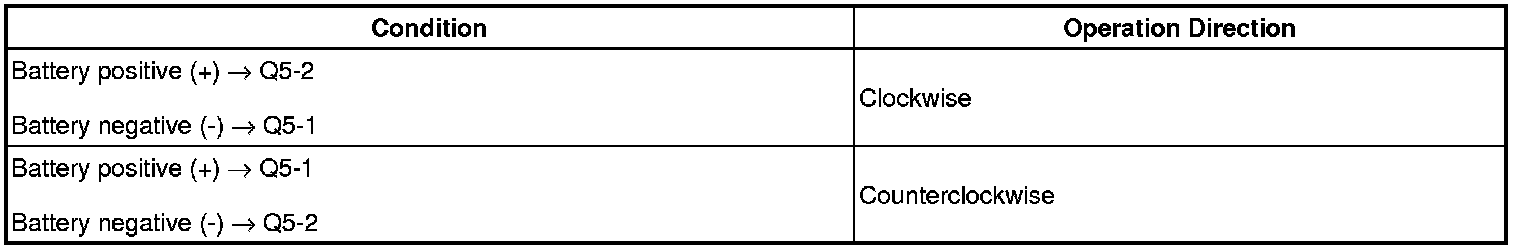

OK:






If the result is not as specified, replace the lumbar support adjuster.
