Removal

SEAT: SEAT HEATER SWITCH: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH Removal
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal
5. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Removal
6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Removal
7. REMOVE INSTRUMENT PANEL BOX ASSEMBLY Removal
8. REMOVE INSTRUMENT PANEL HOLE COVER Removal
9. REMOVE SEAT HEATER SWITCH

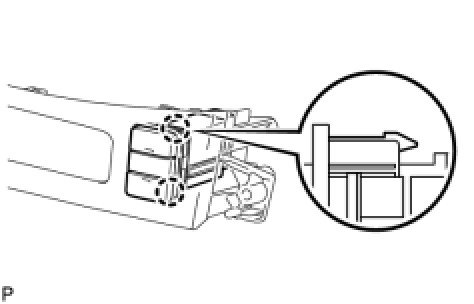

(a) Disengage the 2 claws and remove the seat heater switch.
