Installation

EXTERIOR PANELS / TRIM: REAR SPOILER: INSTALLATION

INSTALLATION

1. INSTALL REAR SPOILER ASSEMBLY
HINT: When installing the rear spoiler assembly, using a heat light and then heat the vehicle body and rear spoiler assembly.

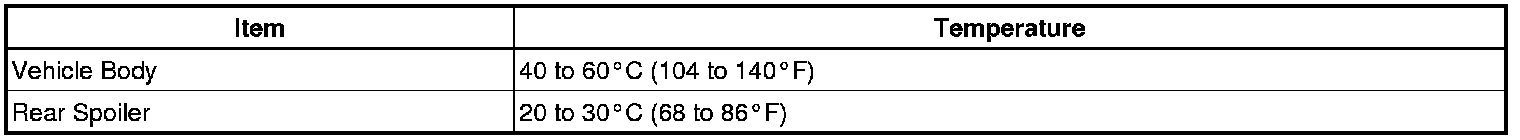

Heating Temperature:





NOTE: Do not heat the vehicle body and rear spoiler assembly excessively.

(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Using a heat light, carefully heat the vehicle body and rear spoiler assembly.
(c) Remove the release paper from the face of the rear spoiler assembly.
HINT: After removing the release paper, keep the exposed adhesive free from foreign matter.





(d) Engage the 2 clips and install the rear spoiler assembly.





(e) Install the 2 bolts.
(f) Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
