ABS (w/o VSC, TMC Made)

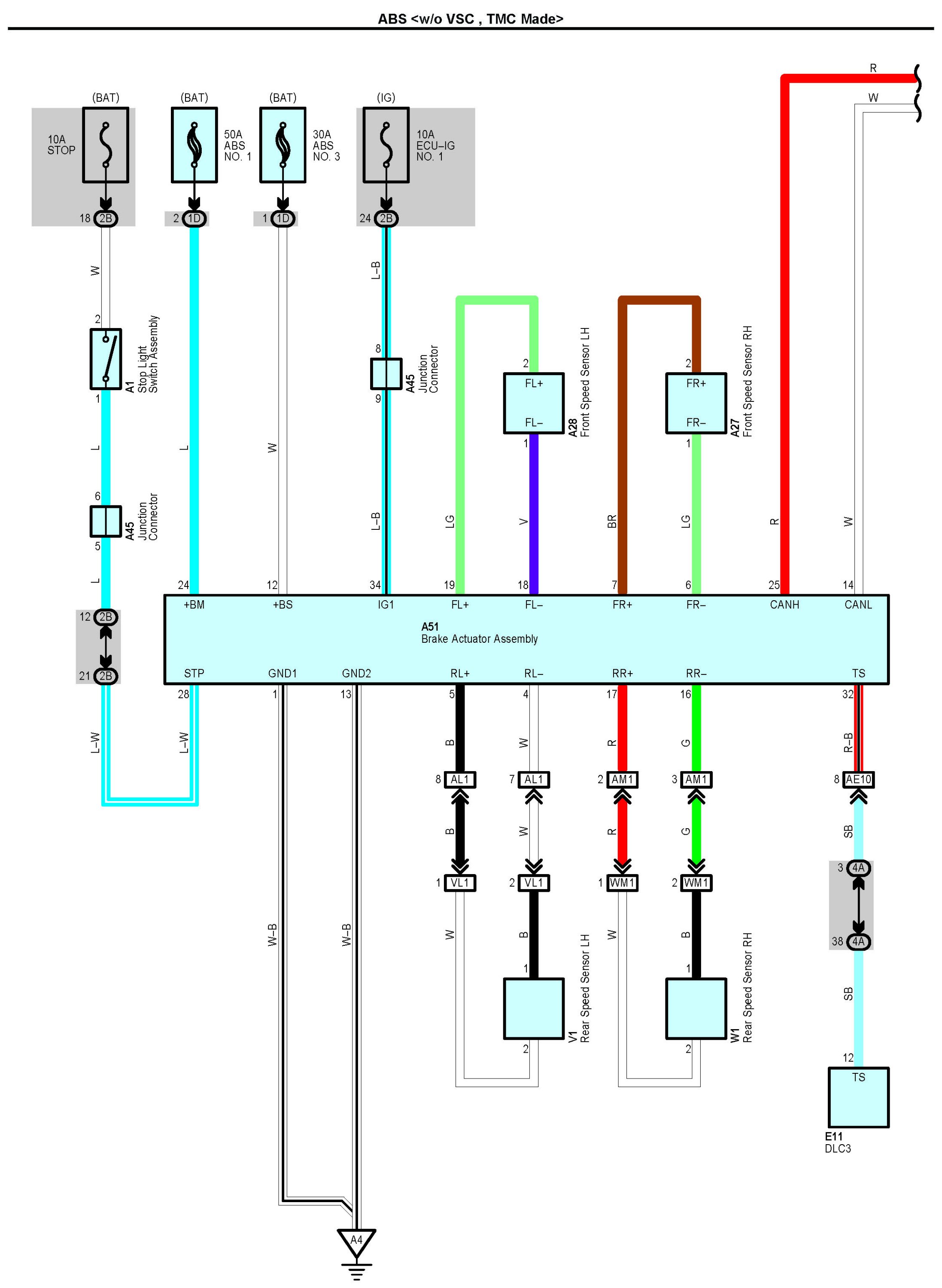

ABS <w/o VSC, TMC Made> Part 1:

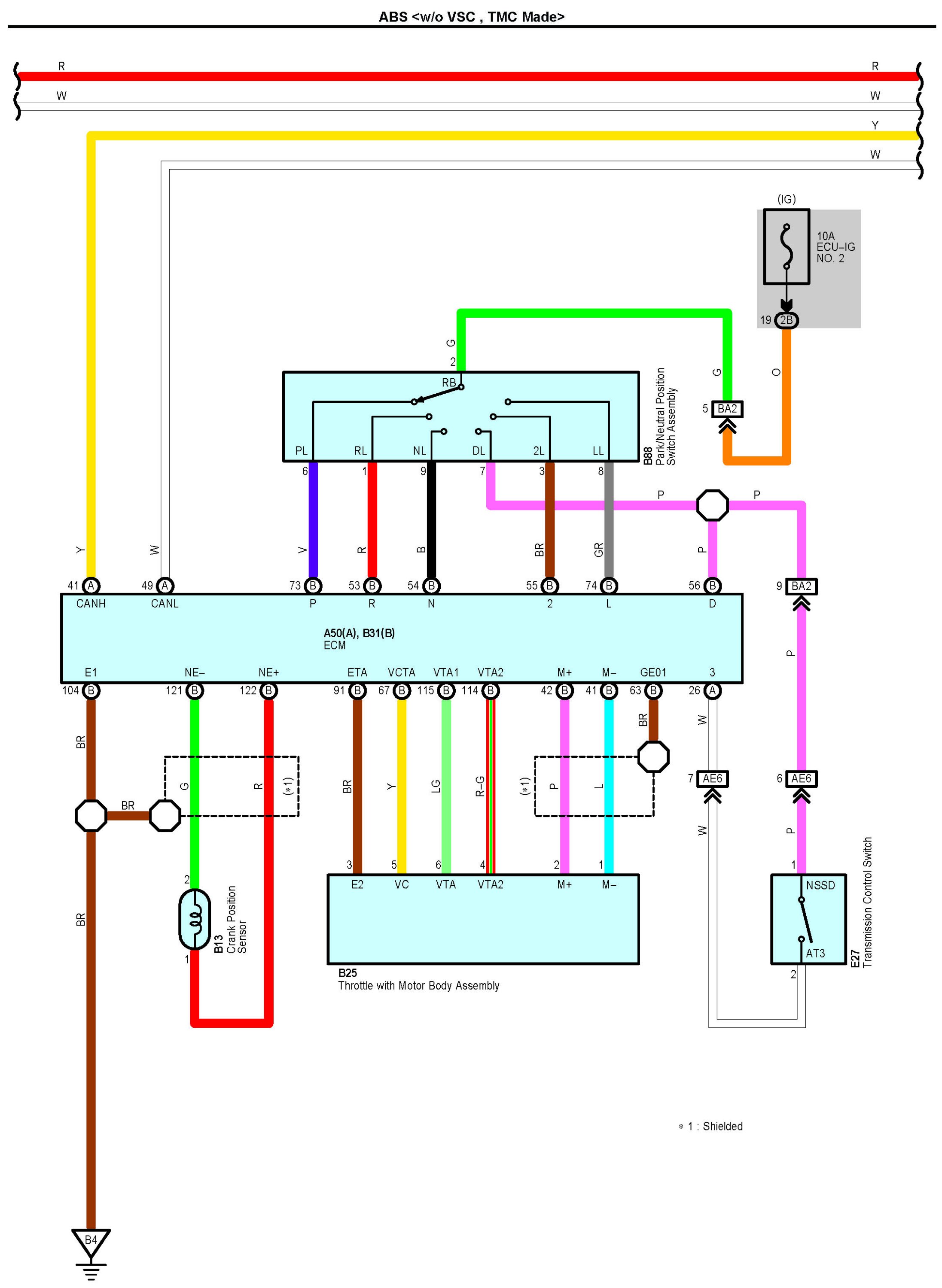

ABS <w/o VSC, TMC Made> Part 2:

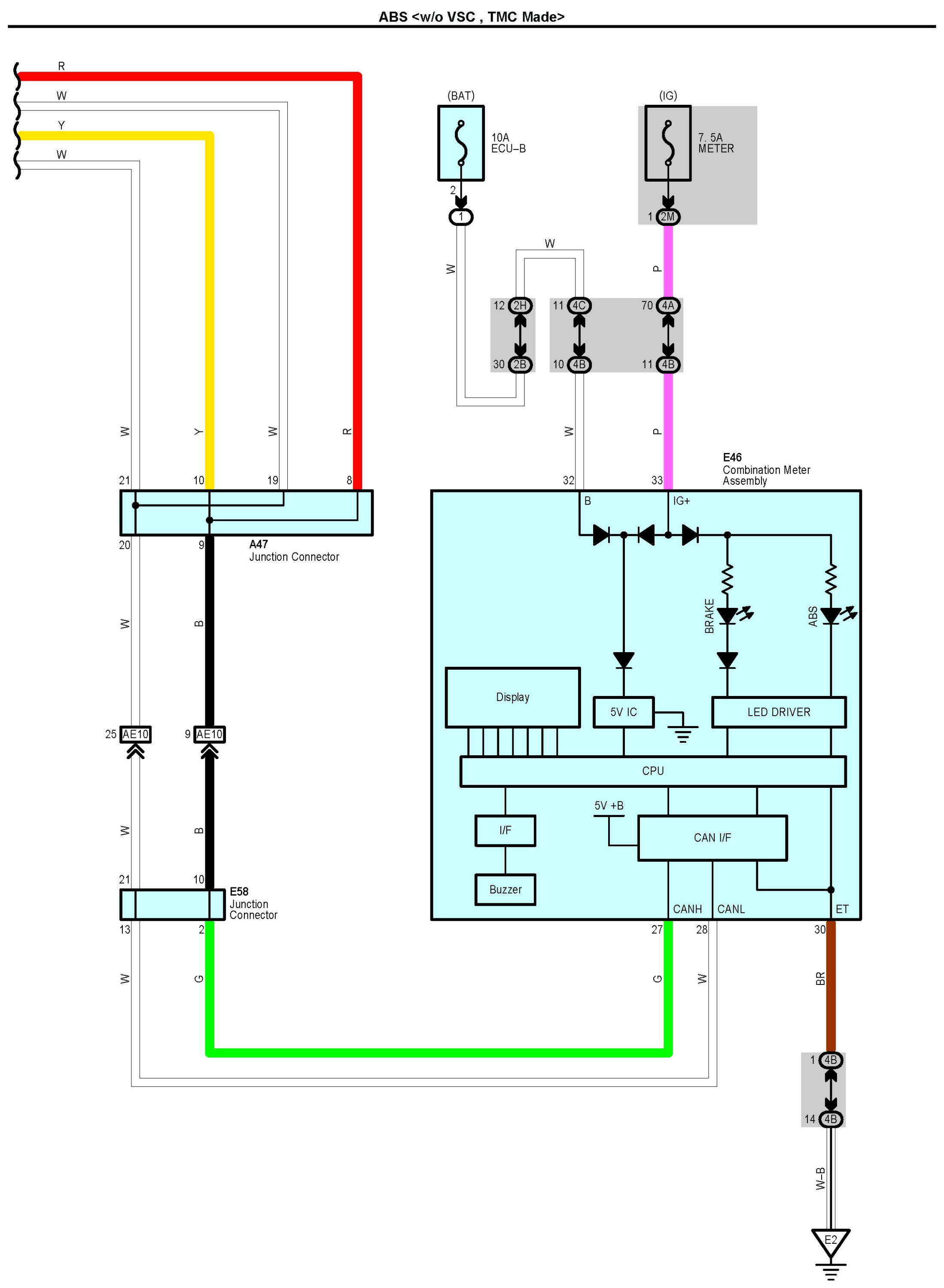

ABS <w/o VSC, TMC Made> Part 3:

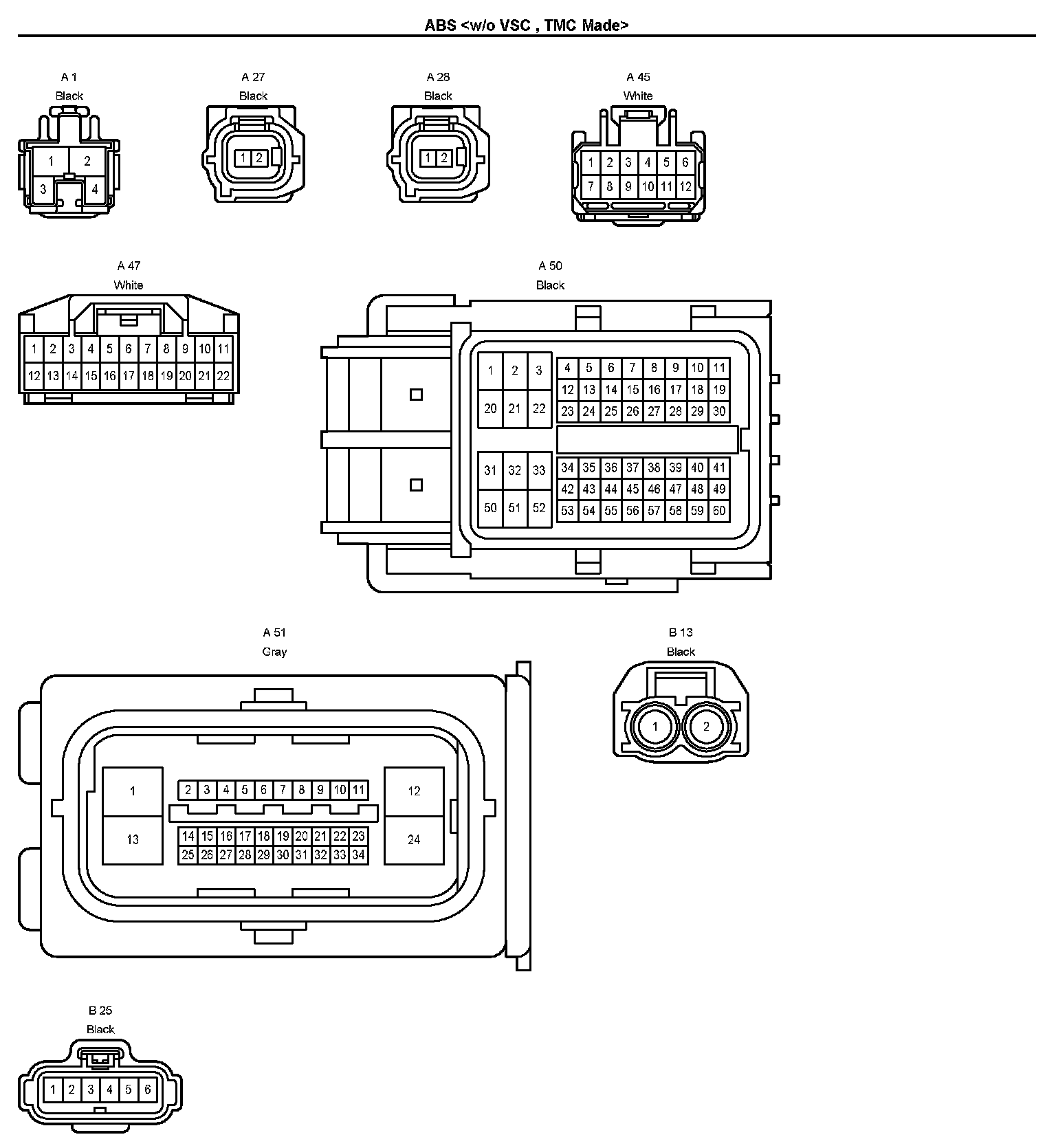

Connectors Part 1:

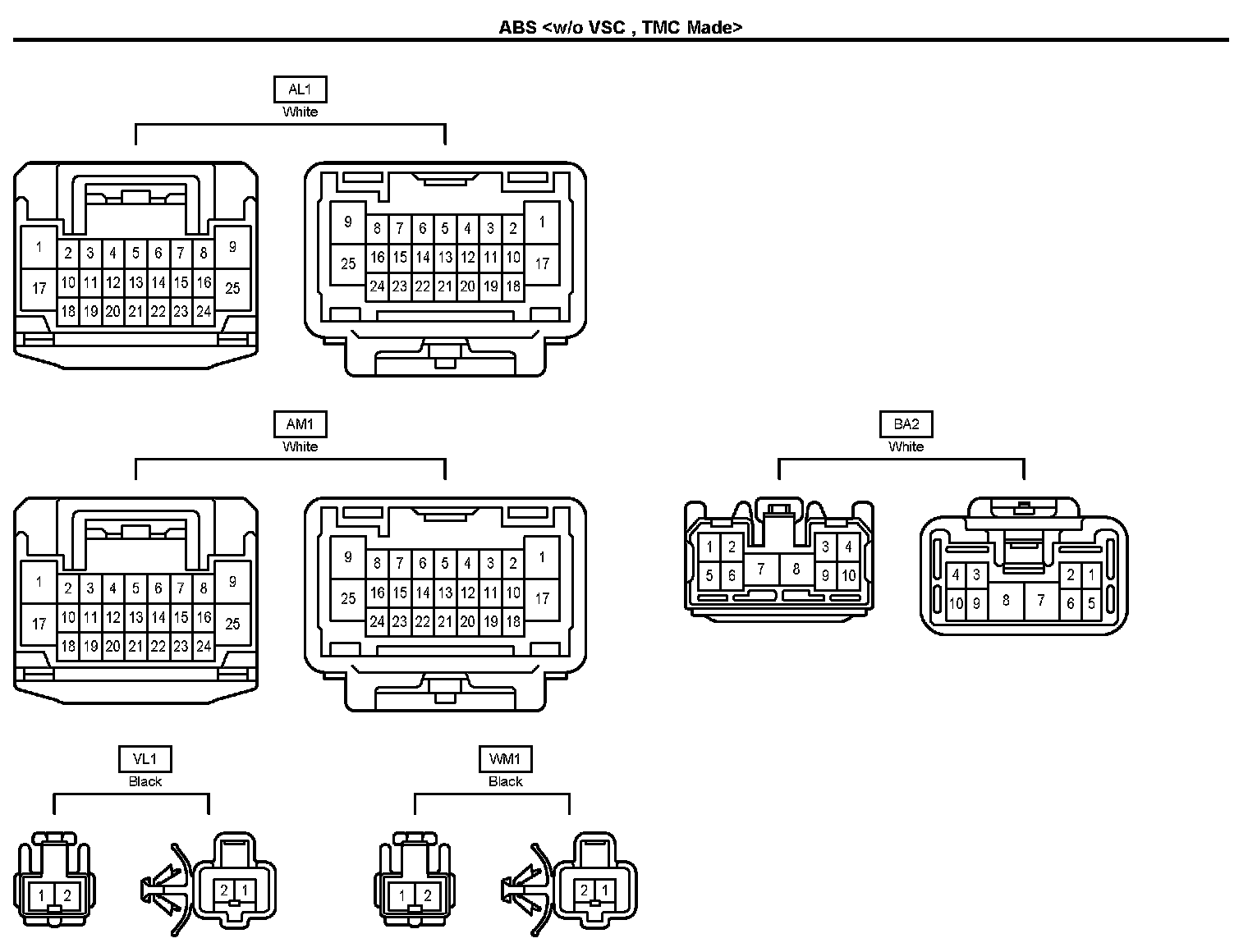

Connectors Part 2:

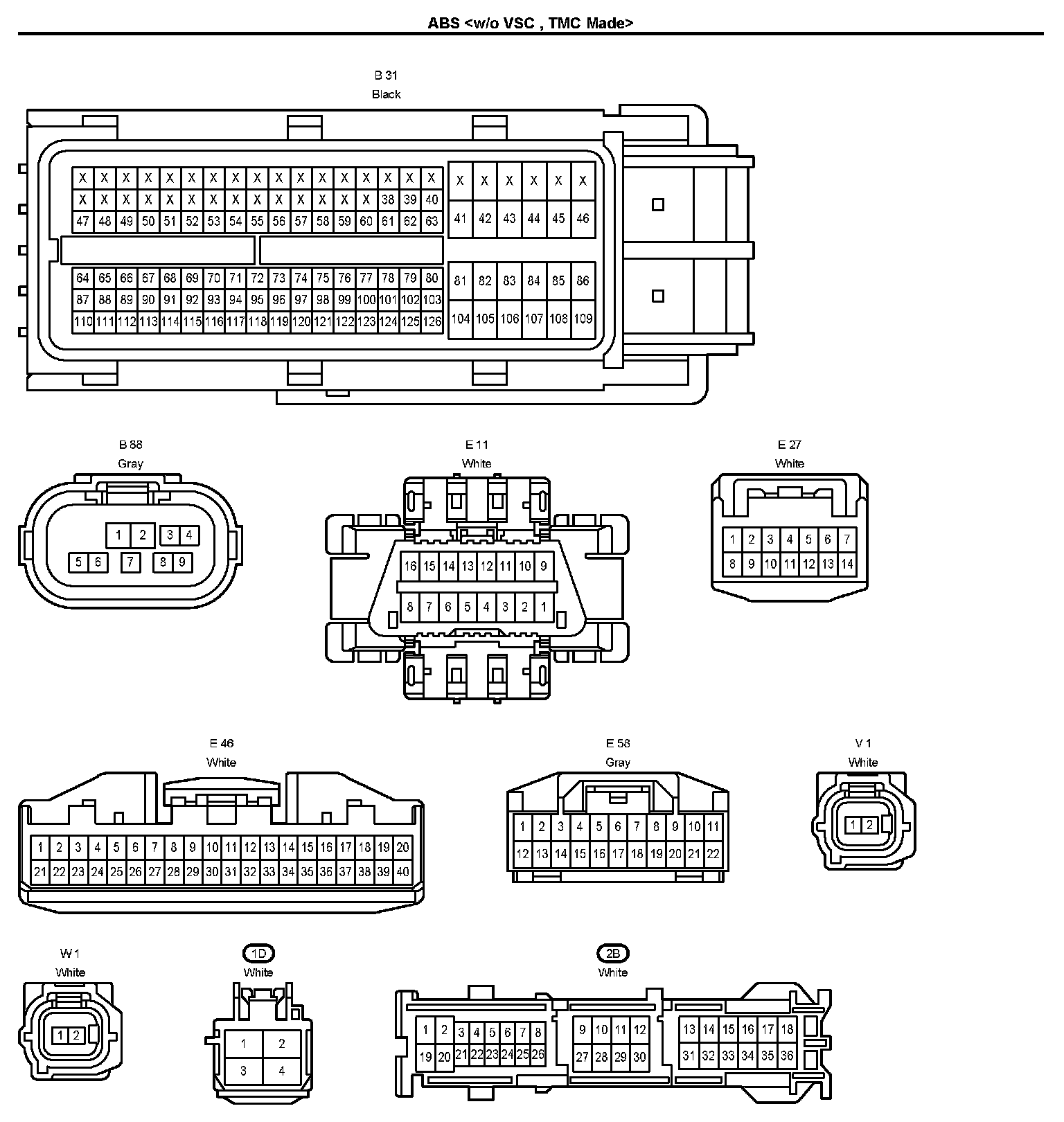

Connectors Part 3:

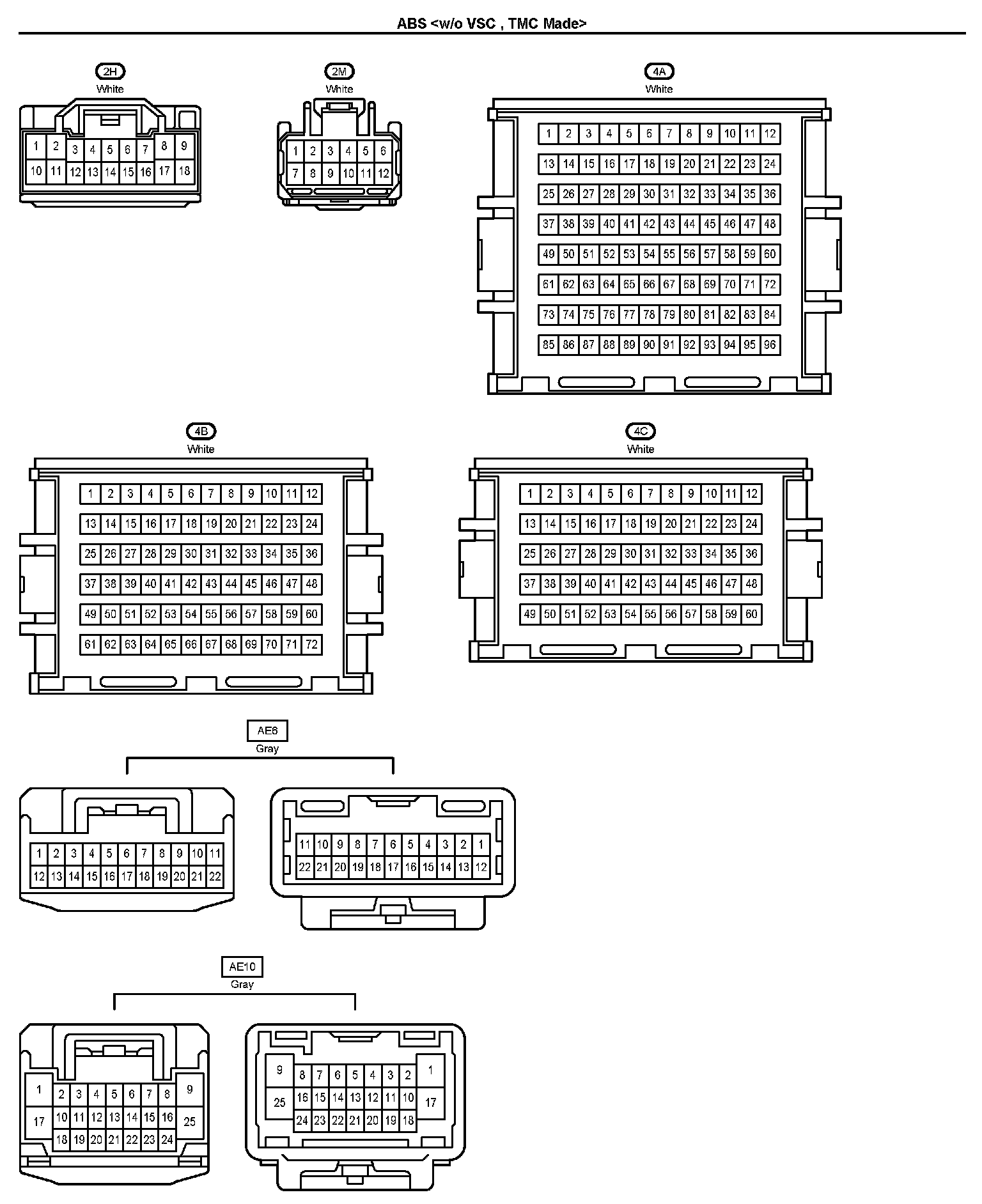

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
