Disassembly

BRAKE SYSTEM (OTHER): BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

1. REMOVE BRAKE PEDAL SUB-ASSEMBLY

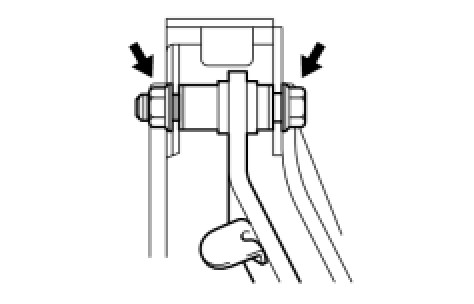

(a) Remove the bolt, nut and brake pedal sub-assembly from the brake pedal support sub-assembly.
2. REMOVE BRAKE PEDAL BUSHING
(a) Remove the 2 brake pedal bushings from the brake pedal sub-assembly.
3. REMOVE BRAKE PEDAL PAD
(a) Remove the brake pedal pad.
