Installation

PARKING BRAKE: PARKING BRAKE LEVER: INSTALLATION

INSTALLATION

1. INSTALL PARKING BRAKE SWITCH ASSEMBLY





(a) Install the parking brake switch assembly to the parking brake lever sub-assembly with the screw.
Torque: 0.9 Nm (9 kgf-cm, 8 in-lbf)
2. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY





(a) Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

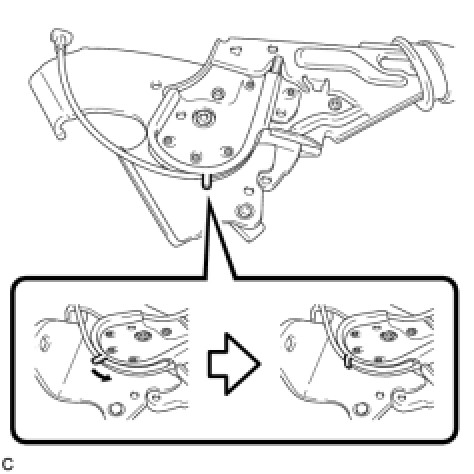

(b) Bend the parking brake lever claw.

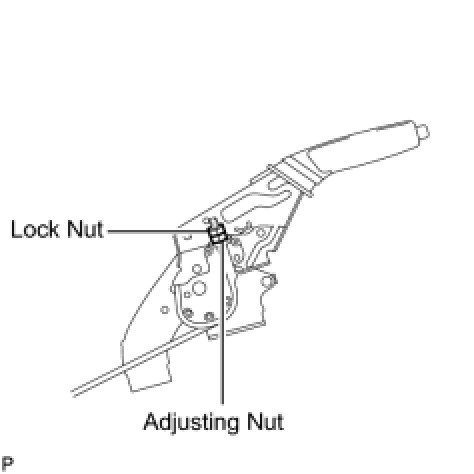

(c) Temporarily install the adjusting nut and the lock nut to the No. 1 parking brake cable assembly.
3. INSTALL PARKING BRAKE CABLE END STOPPER





(a) Install the parking brake cable end stopper to the No. 1 parking brake cable assembly.
4. INSTALL PARKING BRAKE EQUALIZER

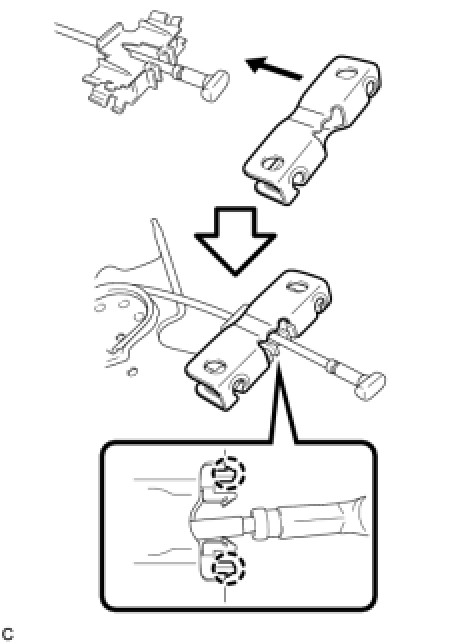

(a) Engage the 2 claws to install the parking brake equalizer to the parking brake cable end stopper.

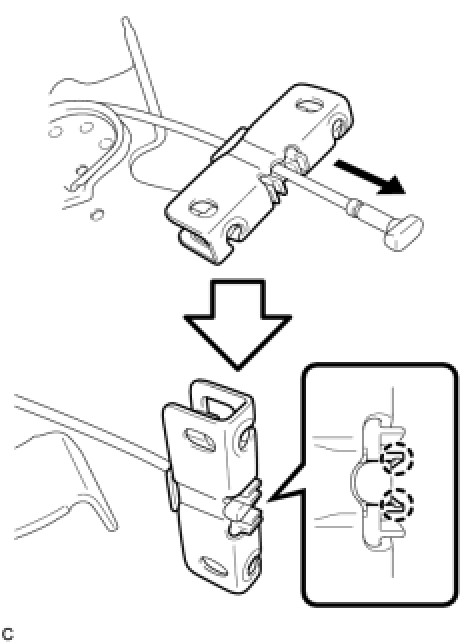

(b) Engage the 2 claws to install the parking brake cable end stopper to the No. 1 parking brake cable assembly.
5. INSTALL PARKING BRAKE LEVER ASSEMBLY





(a) Install the parking brake lever assembly with the 2 bolts.
Torque: 15 Nm (148 kgf-cm, 11 ft-lbf)





(b) Connect the parking brake switch connector.
6. CONNECT PARKING BRAKE EQUALIZER

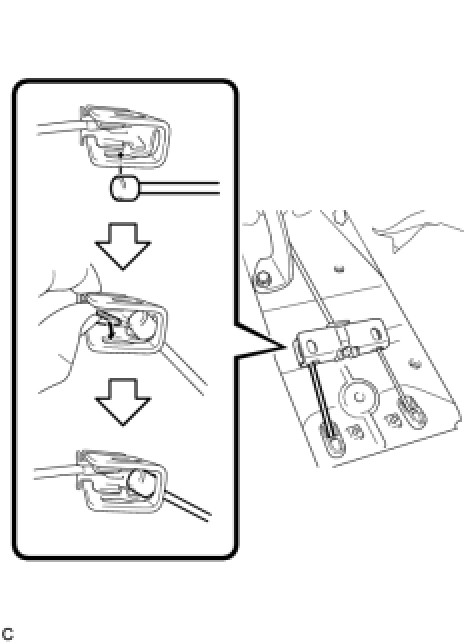

(a) Connect the parking brake equalizer to the No. 3 parking brake cable assembly as shown in the illustration.
(b) Connect the parking brake equalizer to the No. 2 parking brake cable assembly.
HINT: Perform the same procedure for the No. 3 parking brake cable assembly.

7. INSTALL NO. 3 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY





(a) Install the No. 3 belt anchor reinforcement sub-assembly with the 5 bolts.
Torque: 27 Nm (275 kgf-cm, 19 ft-lbf)
(b) Install the floor carpet.
8. INSTALL NO. 2 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY





(a) Install the No. 2 belt anchor reinforcement sub-assembly with the 4 bolts.
Torque: 27 Nm (275 kgf-cm, 19 ft-lbf)
9. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments
10. INSPECT BRAKE WARNING LIGHT Adjustments
11. INSTALL CONSOLE BOX ASSEMBLY
HINT: Refer to the instructions for Installation of the front console box Installation.

12. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
HINT: Refer to the instructions for Installation of the front seat assembly Installation.

13. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
HINT: Refer to the instructions for Installation of the front seat assembly Installation.

14. INSTALL FRONT SEAT ASSEMBLY RH
HINT: Perform the same procedure for the LH side.

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
16. INSPECT SRS WARNING LIGHT (w/ Front Seat Side Airbag)
HINT: Diagnosis System.
