Position of Parts In Body
Position of Parts In Body

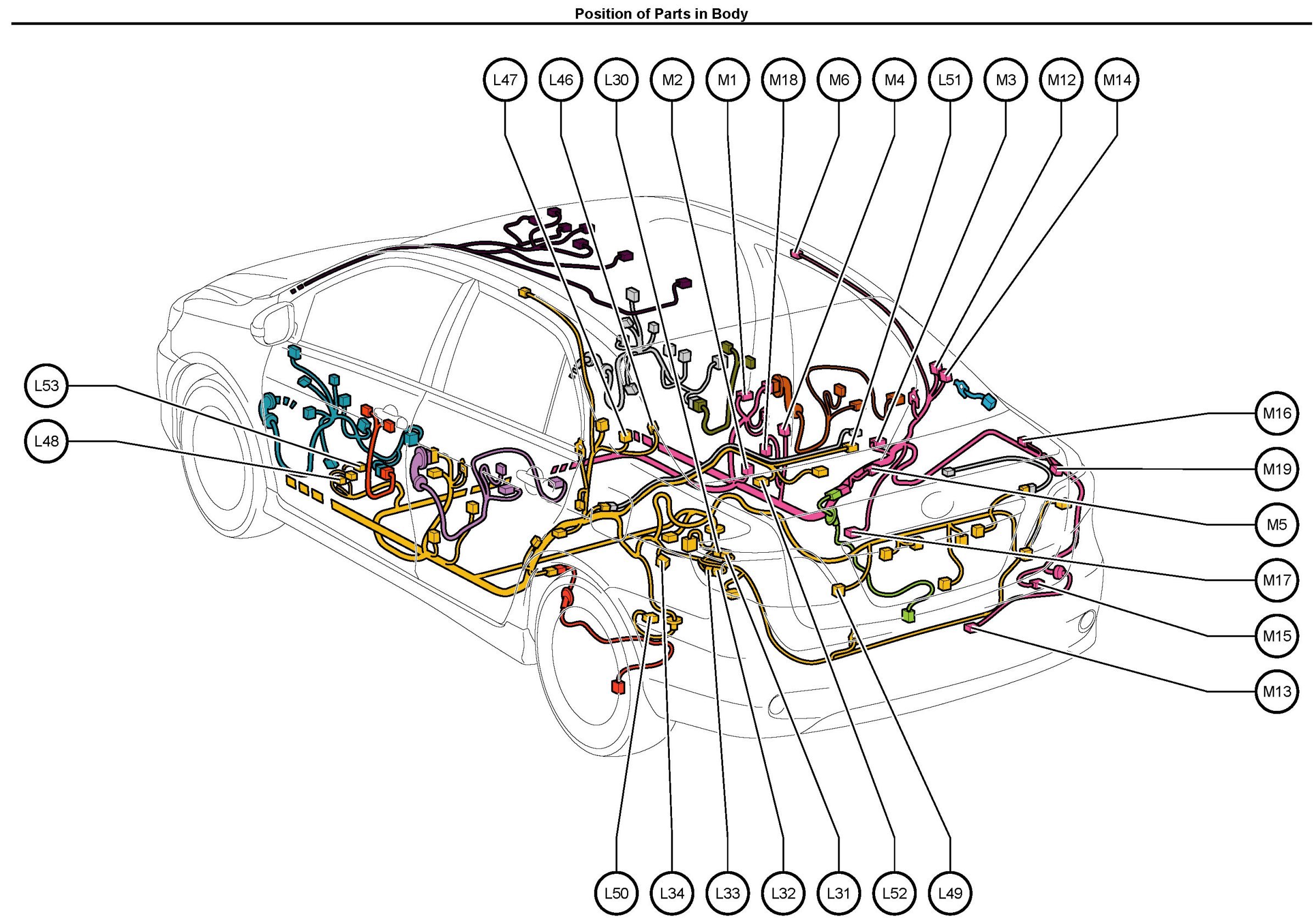

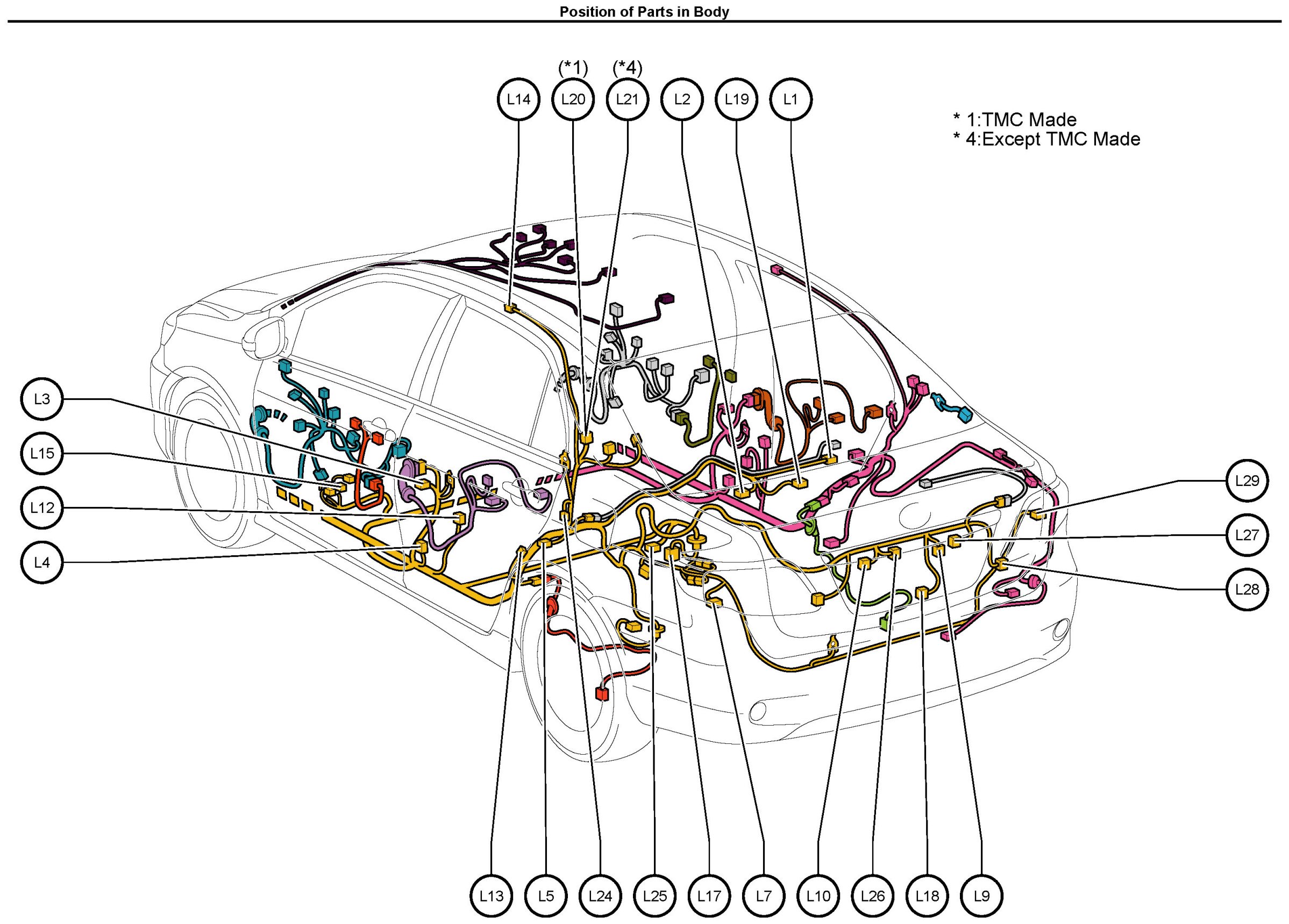

Position Of Parts In Body:

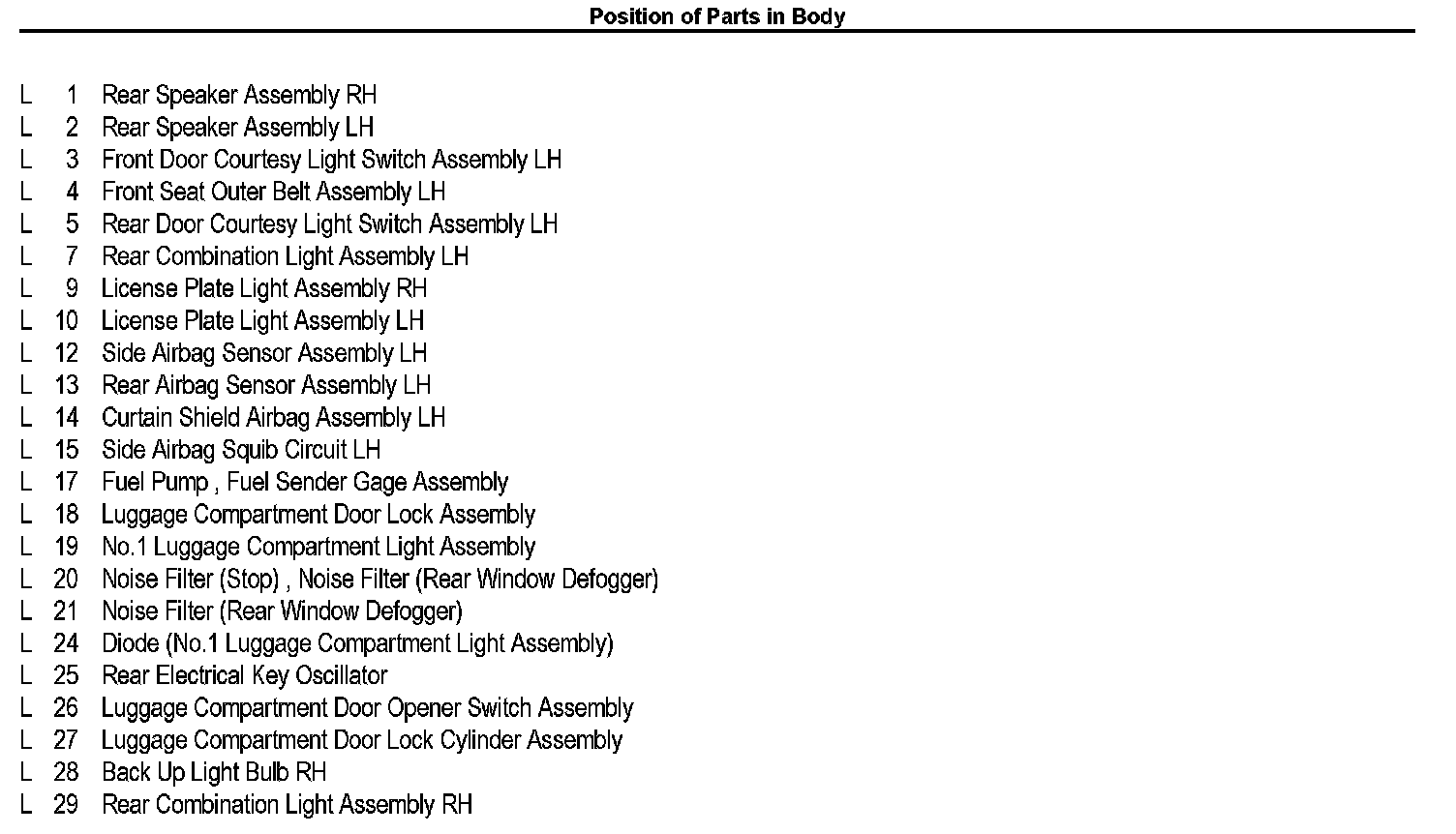

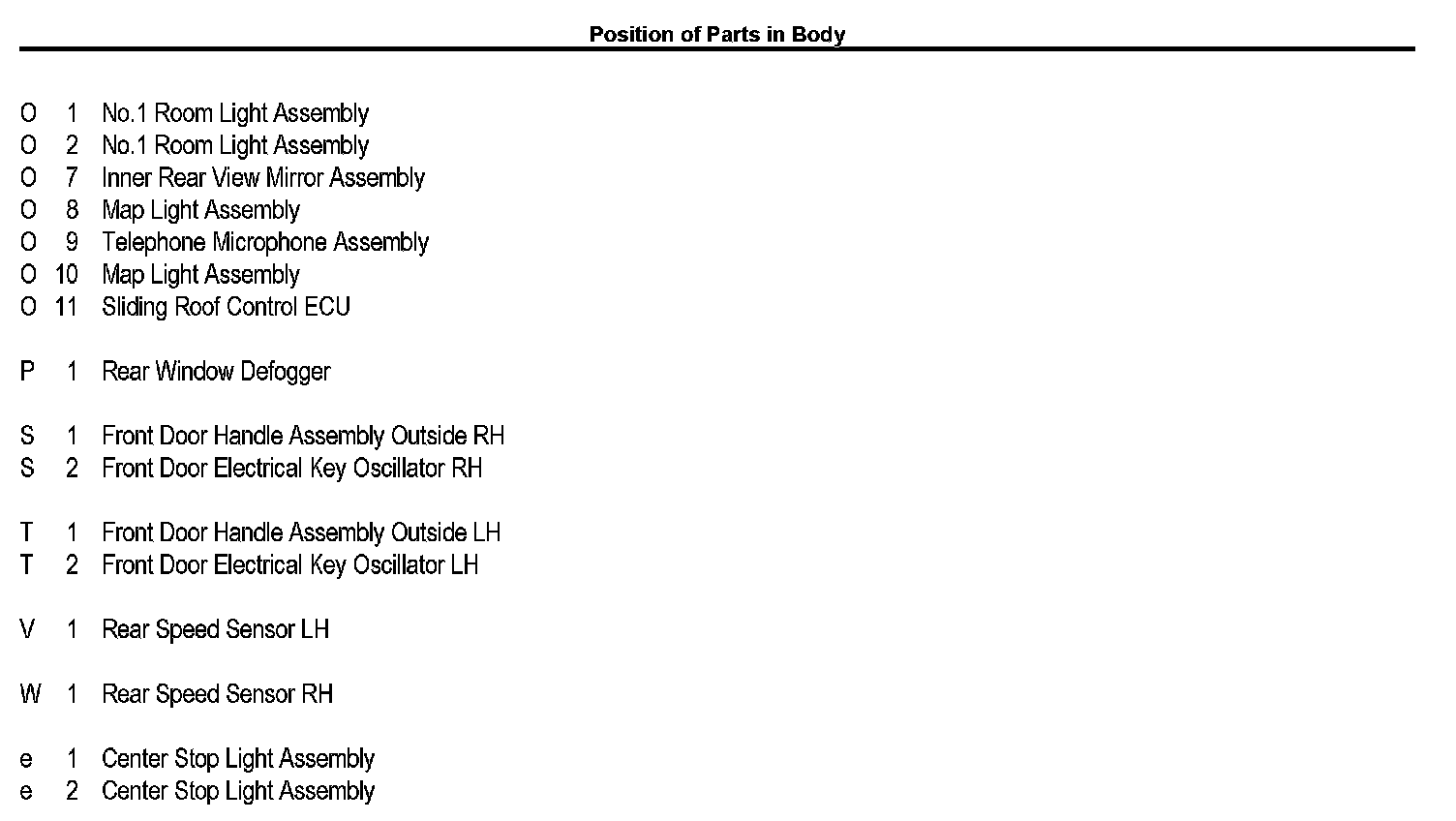

Legend:

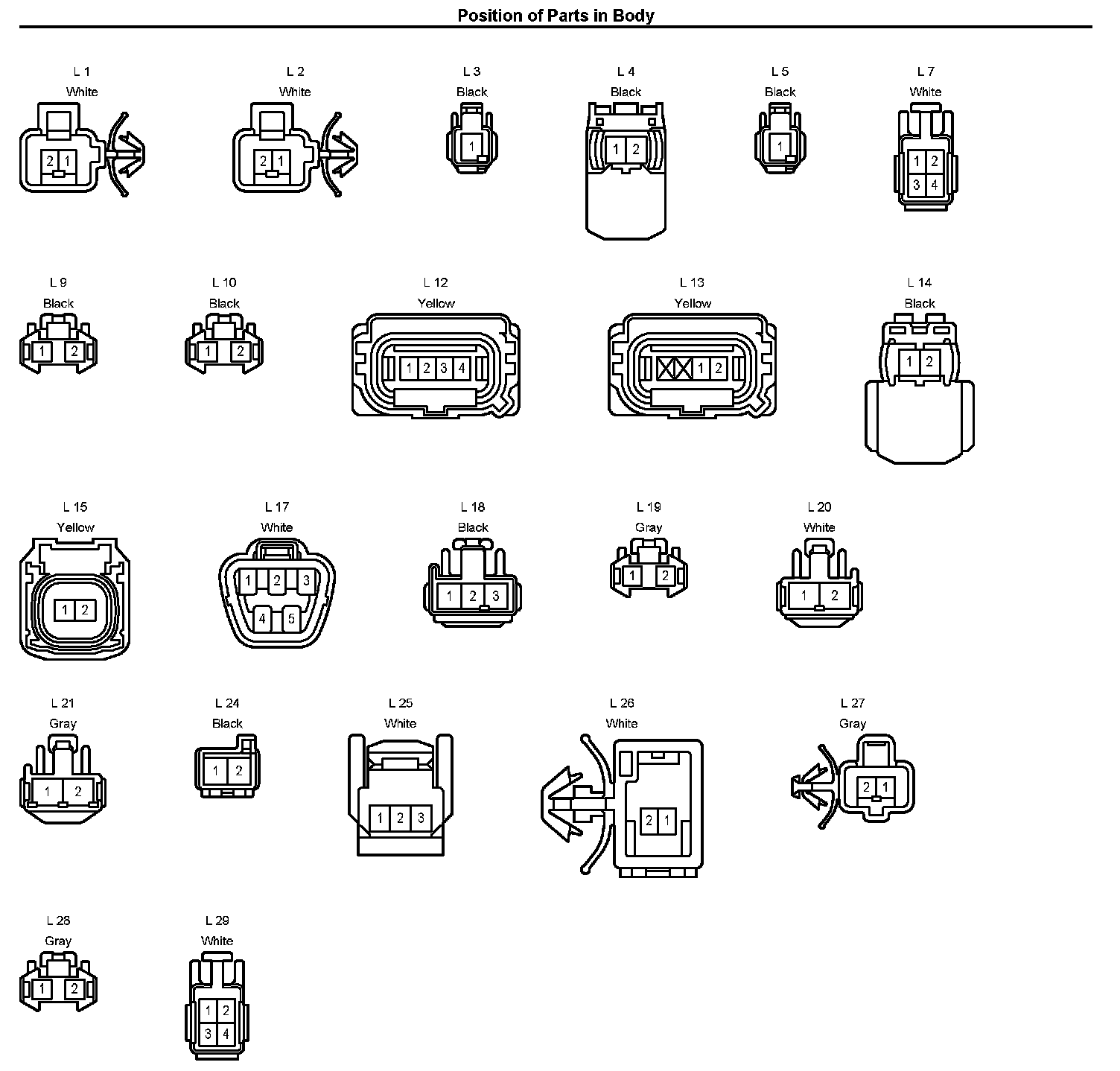

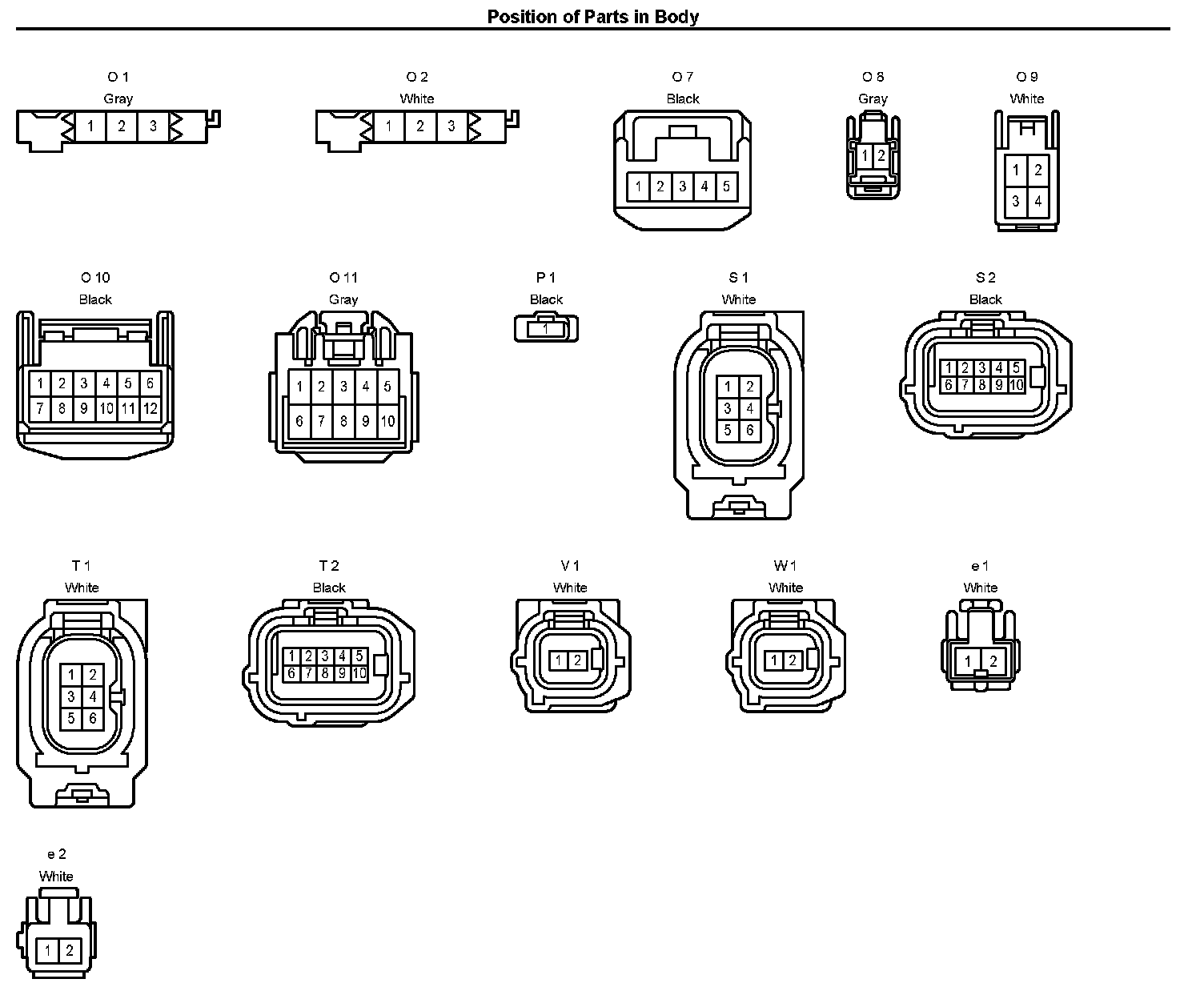

Connector Views:

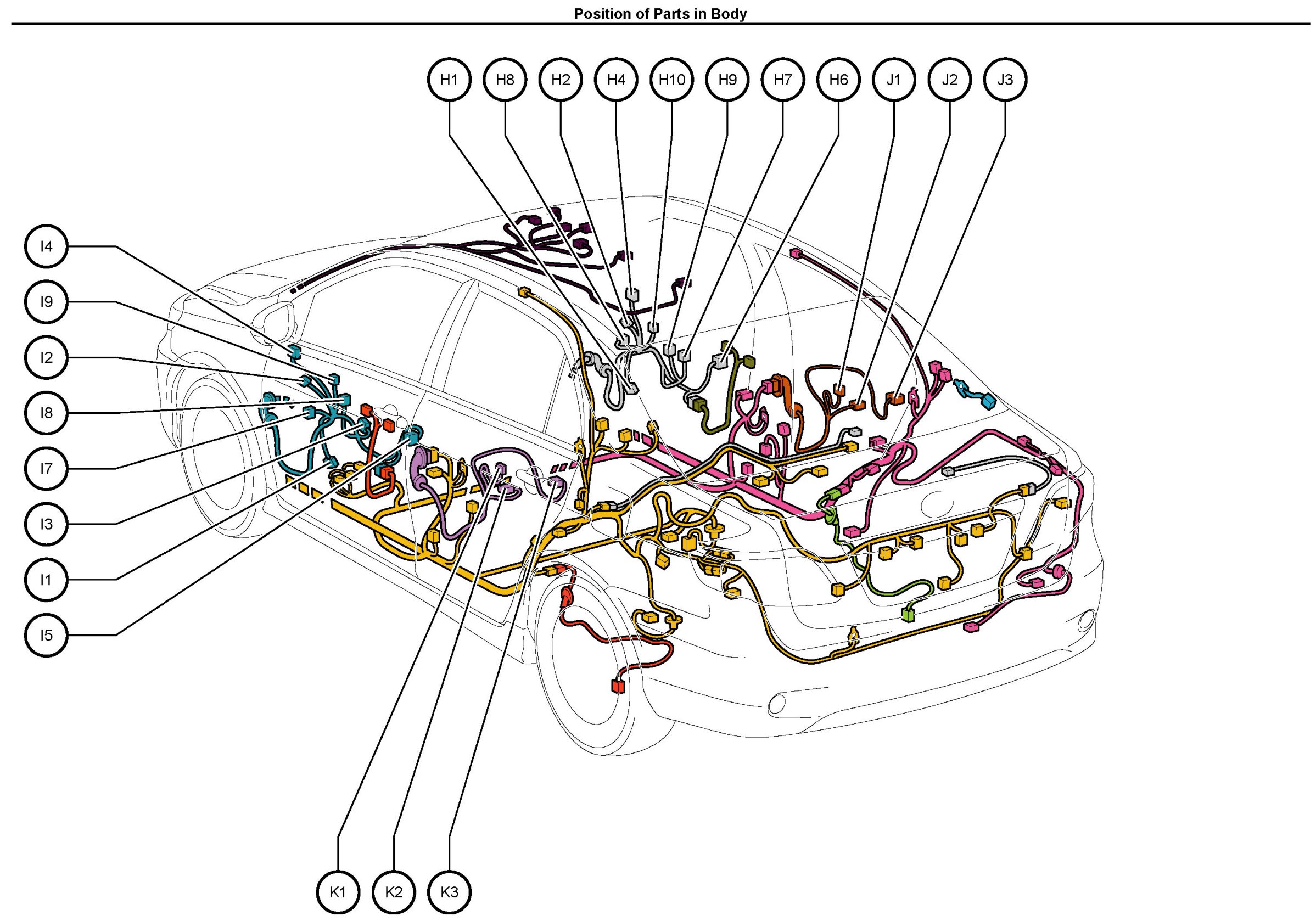

Position Of Parts In Body:

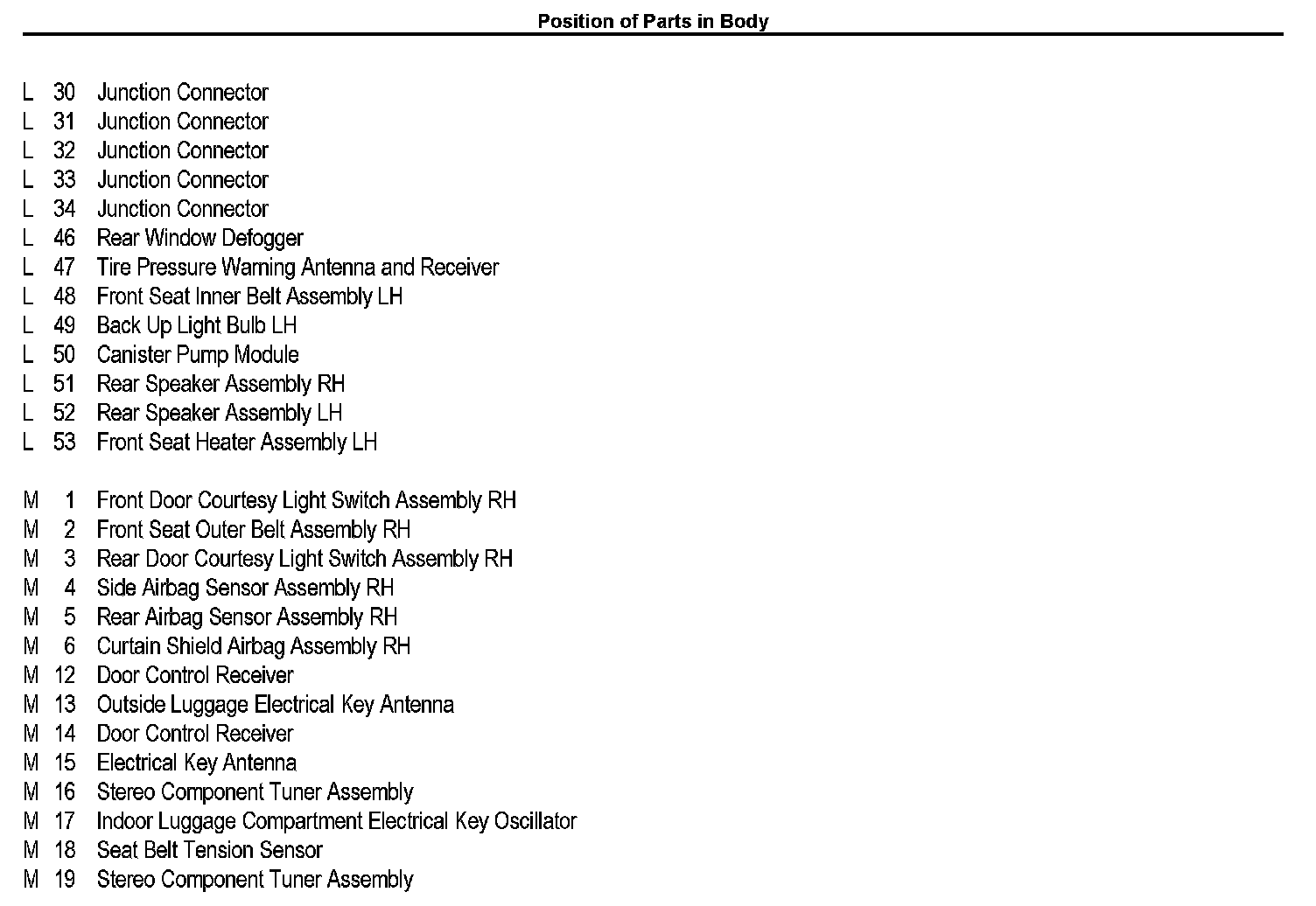

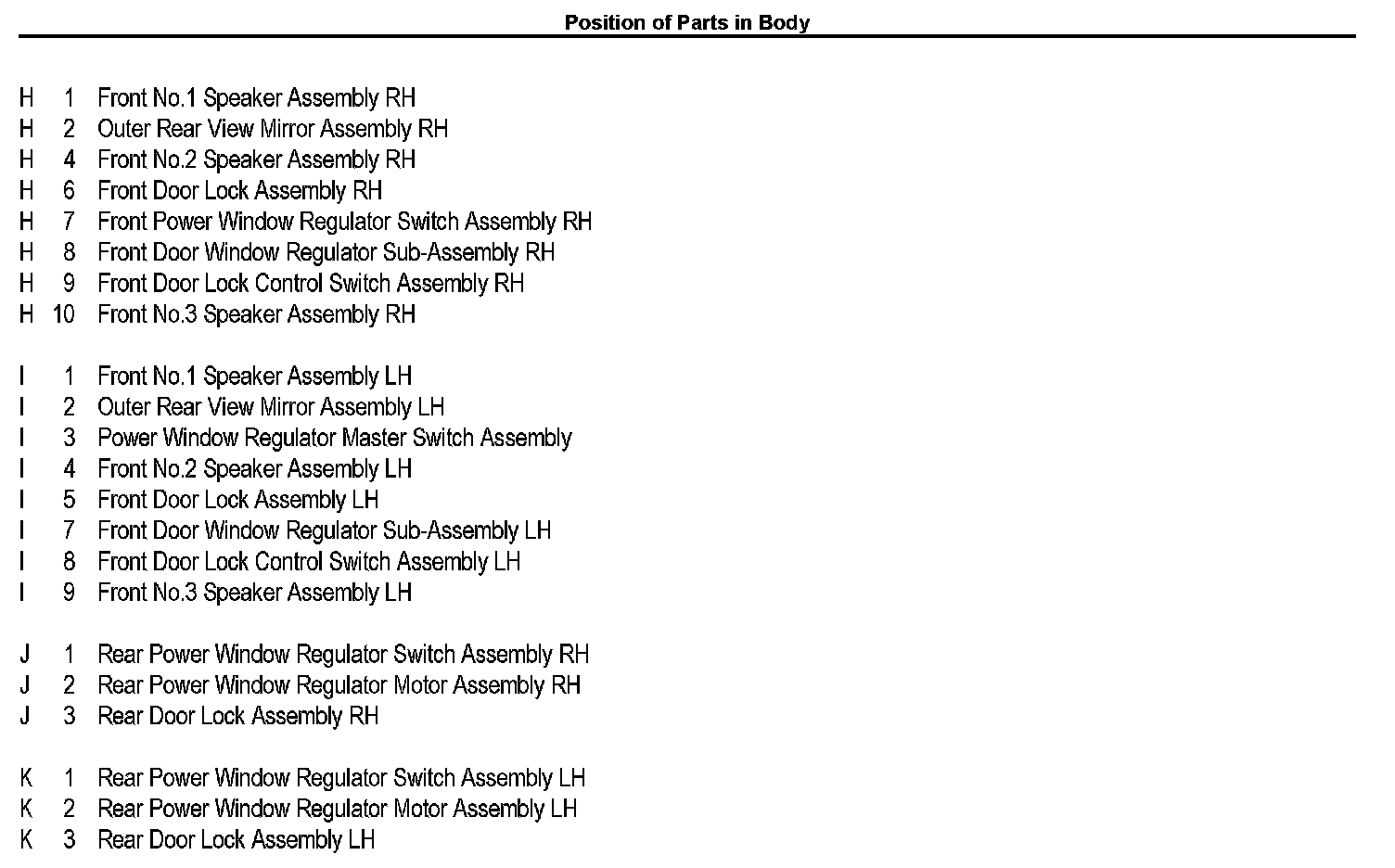

Legend:

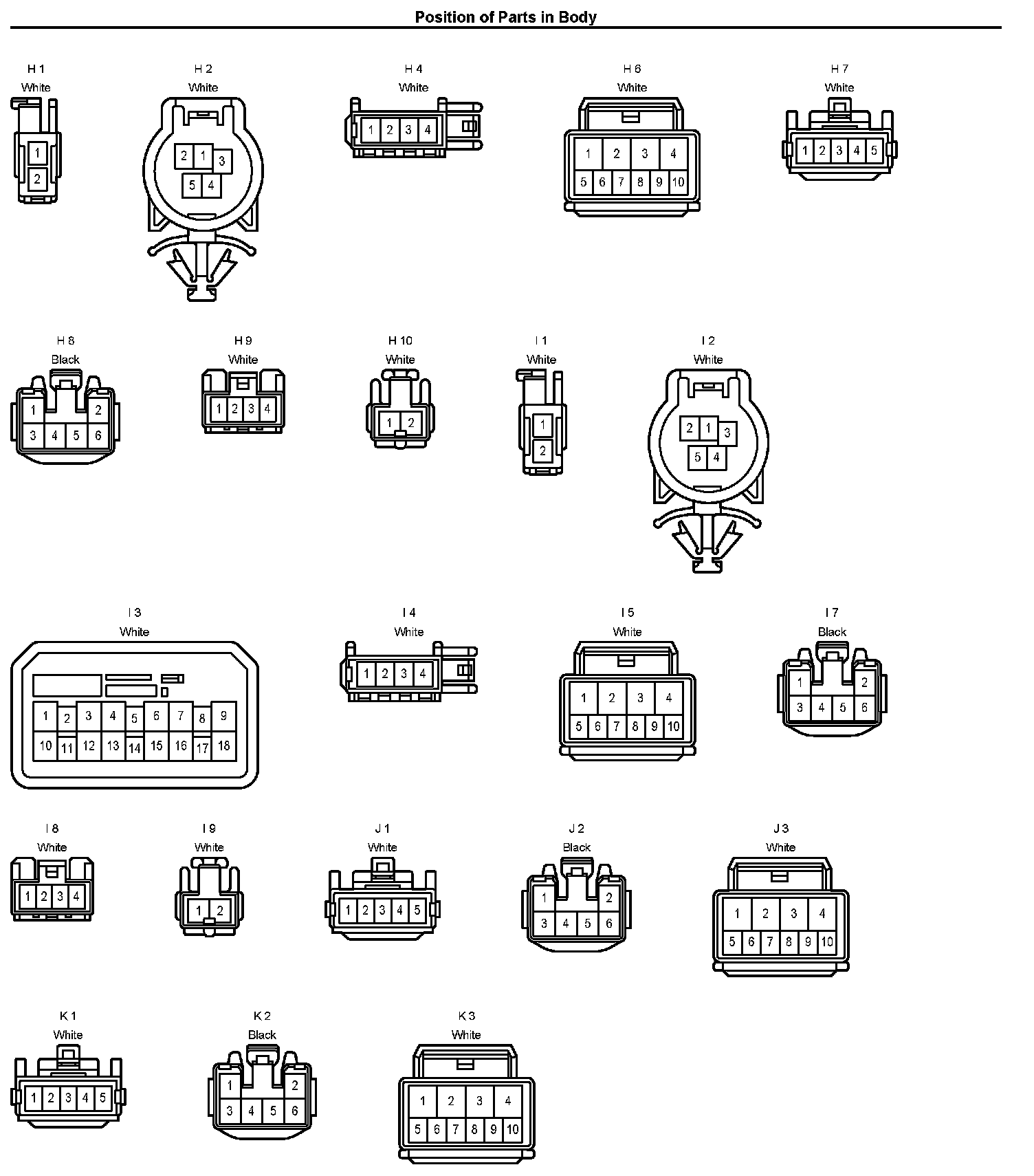

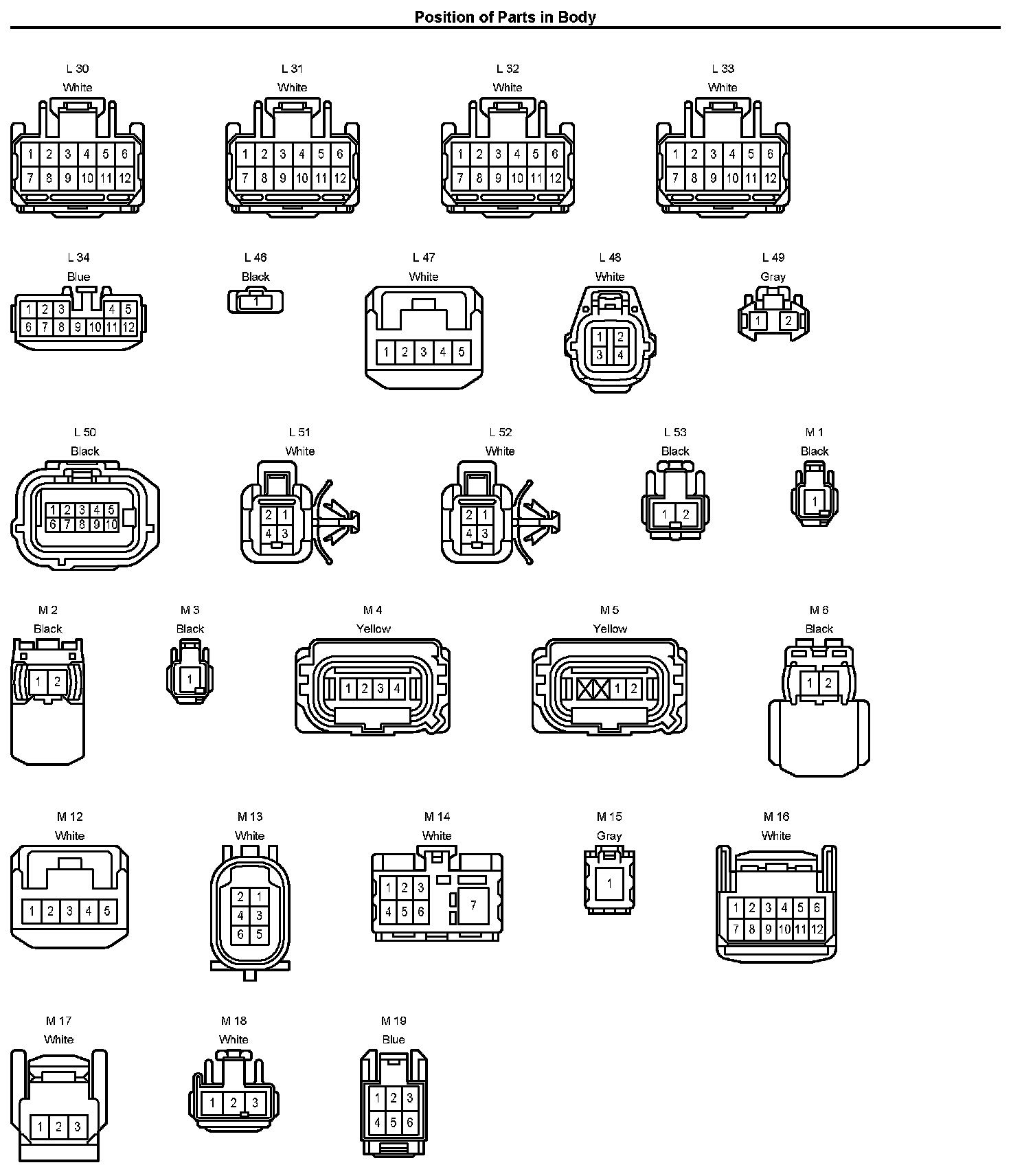

Connector Views:

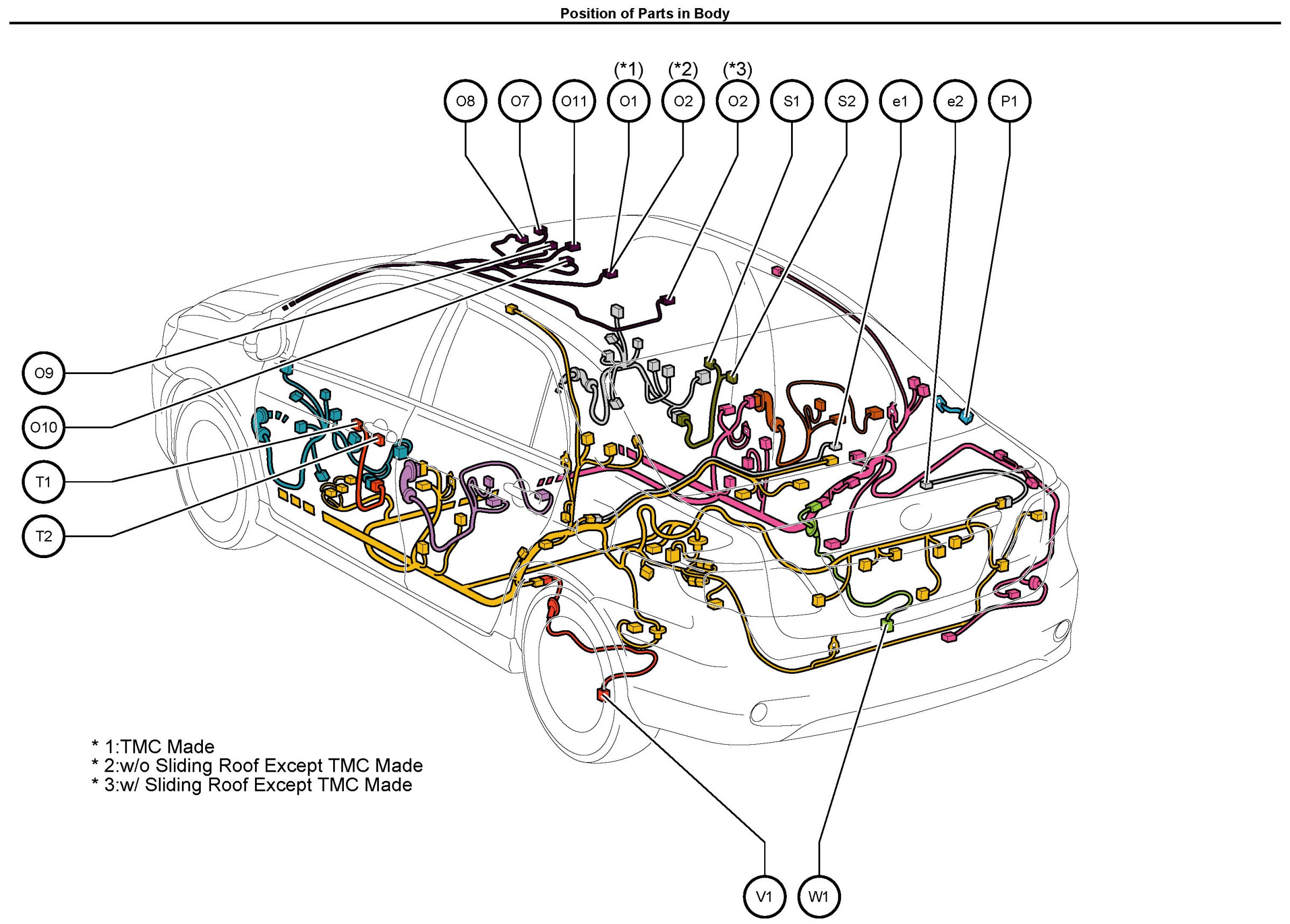

Position Of Parts In Body:
Legend:
Connector Views:
Position Of Parts In Body:
Legend:
Connector Views:
