Position of Parts In Engine Compartment

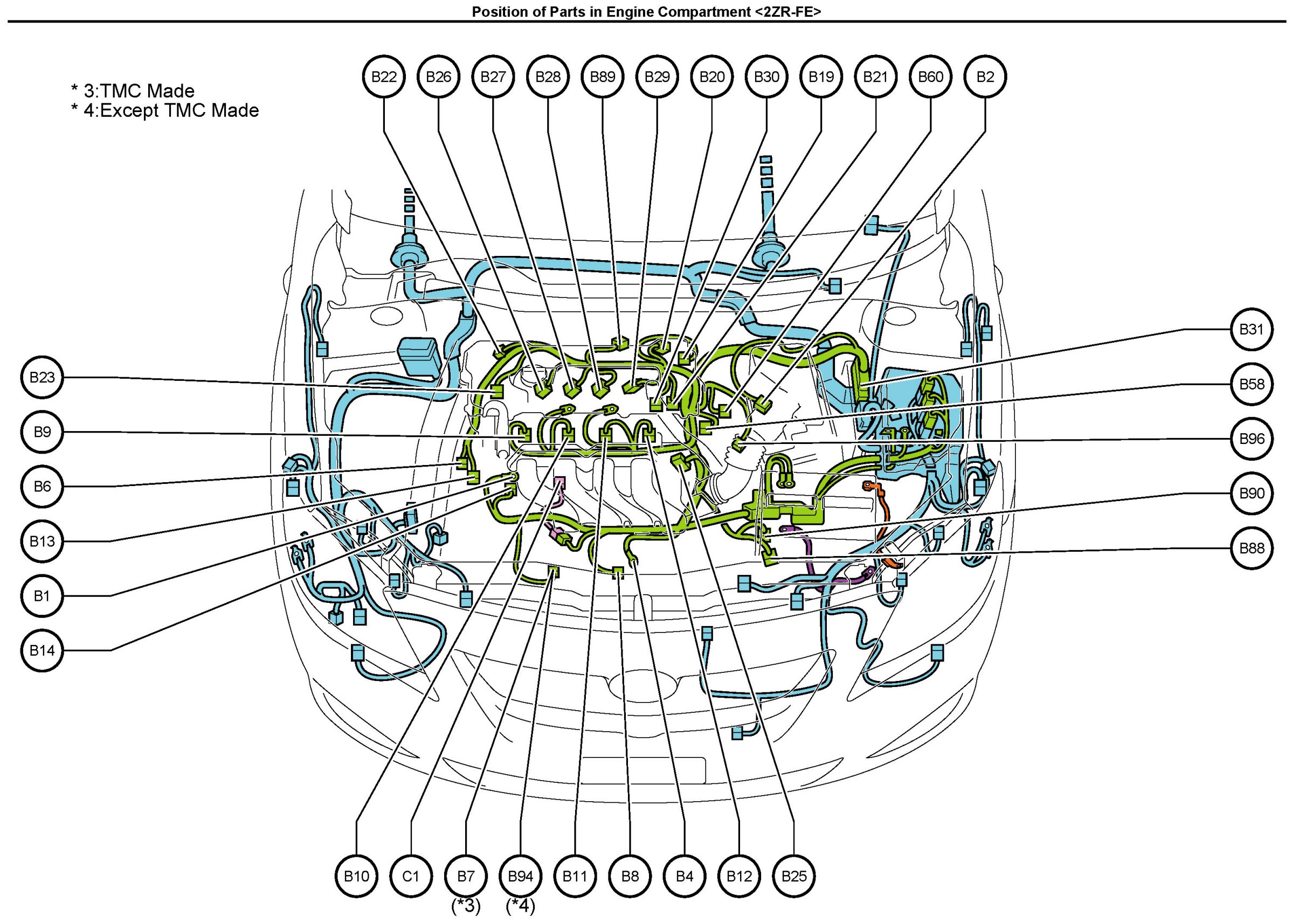

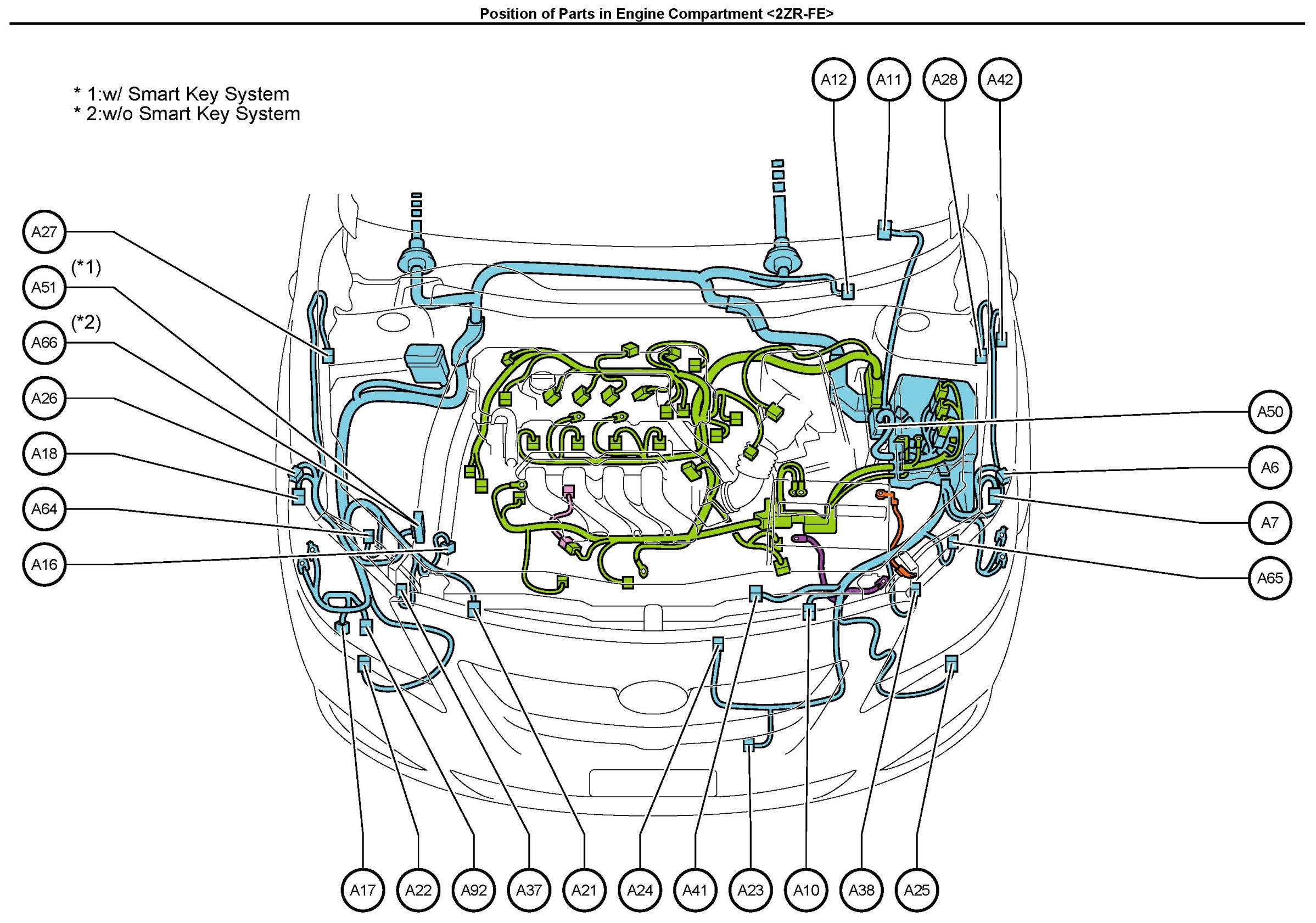

Position Of Parts In Engine Compartment:

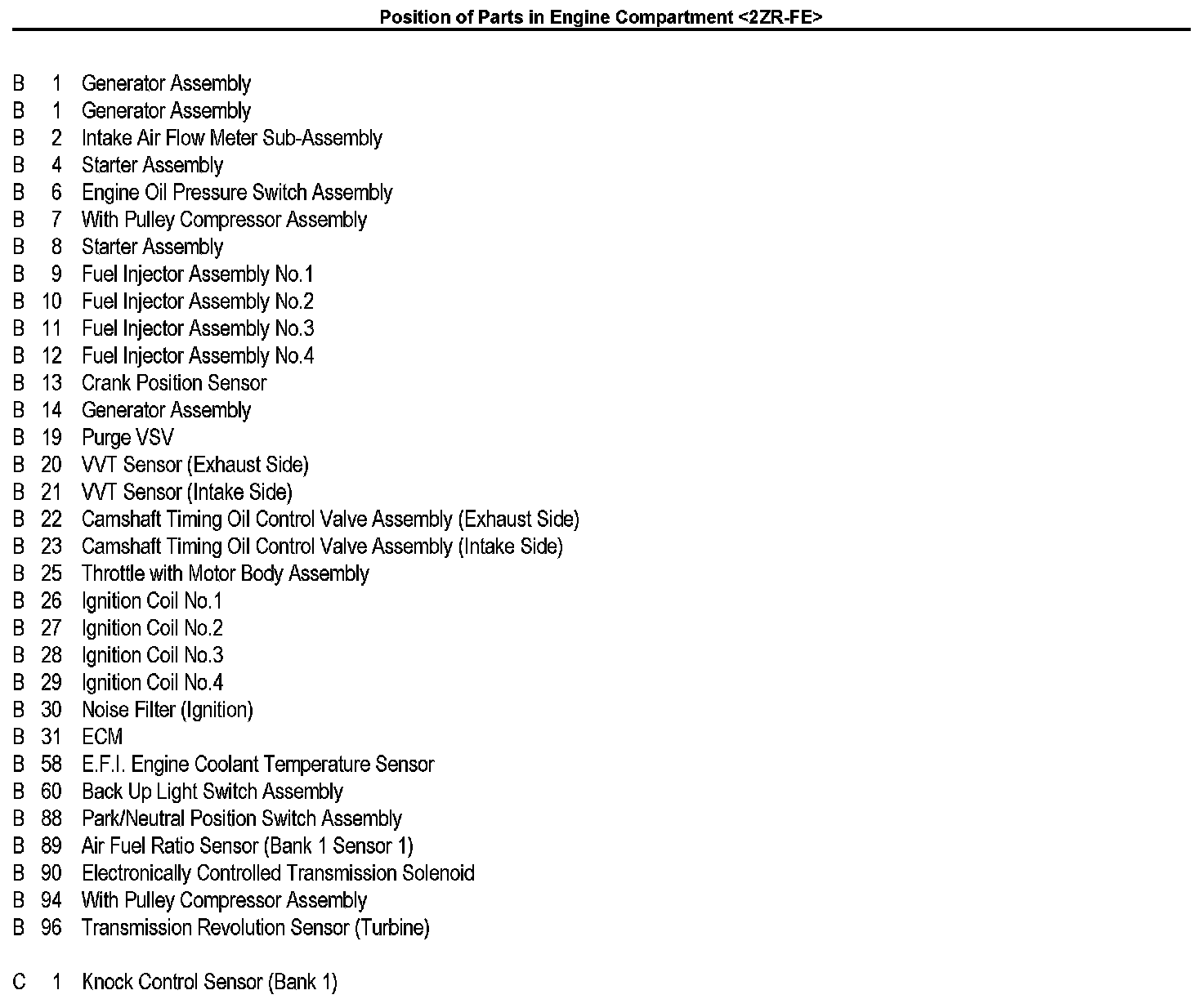

Legend:



Connector Views:

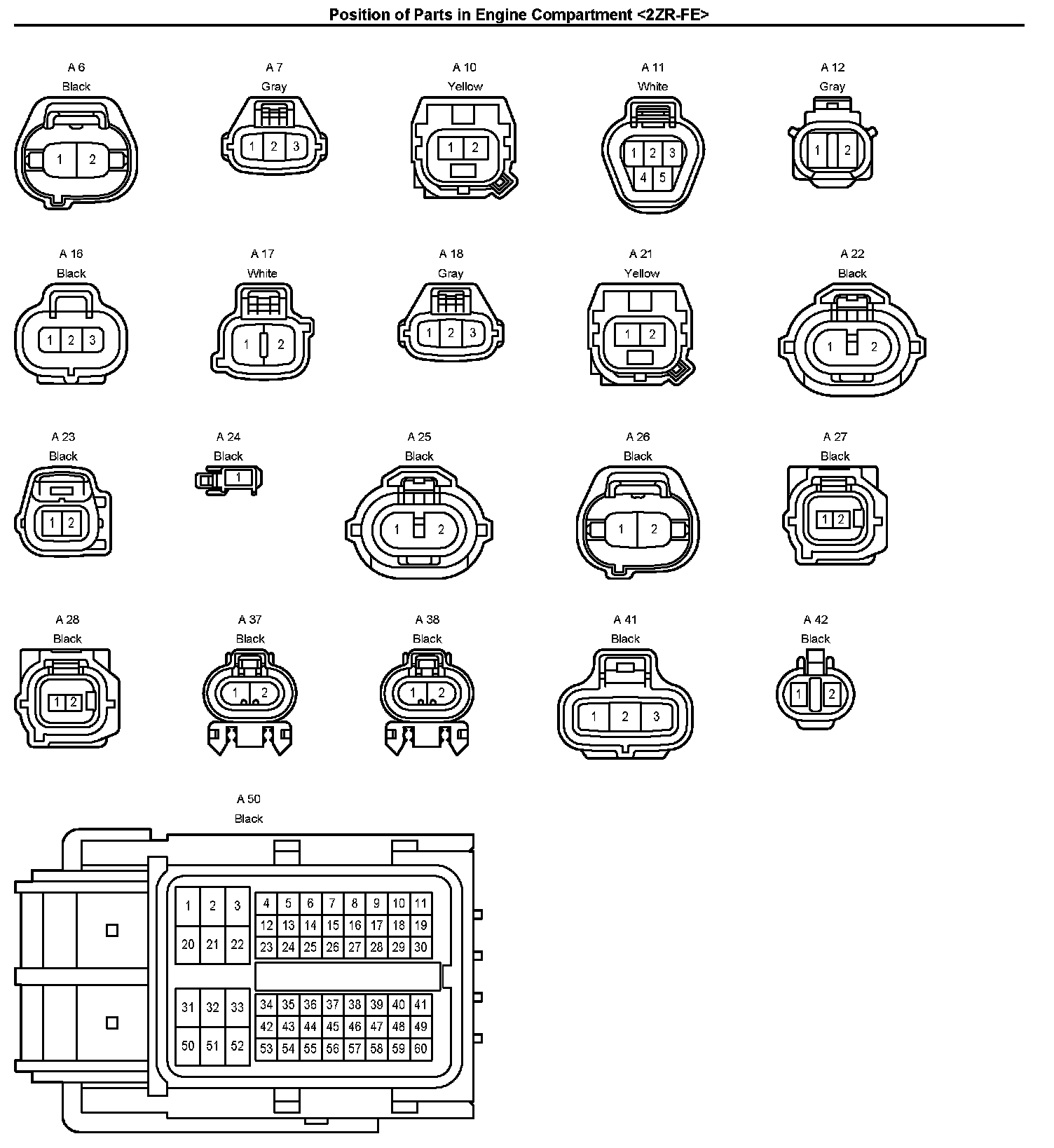

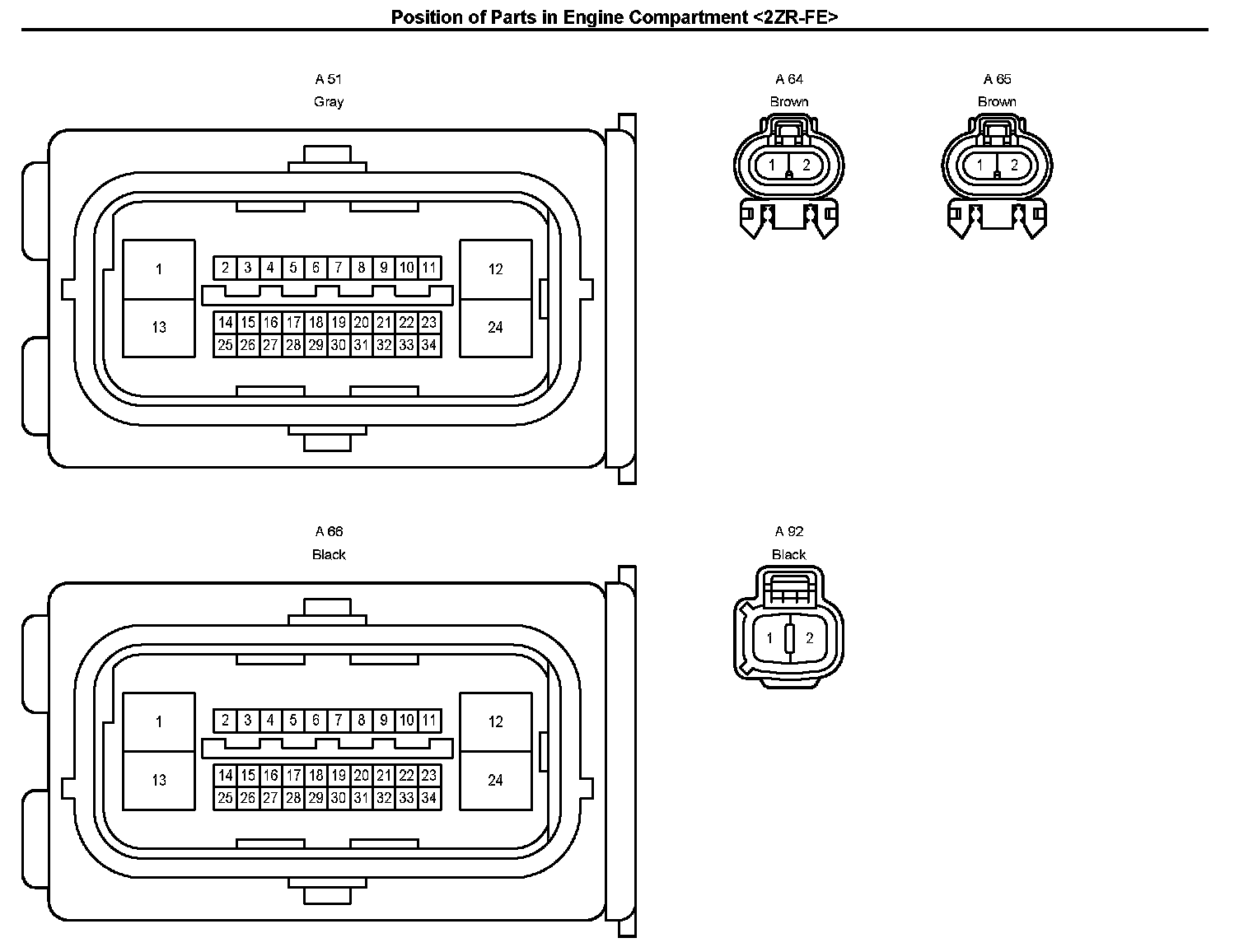

Connector Views:



Position Of Parts In Engine Compartment:

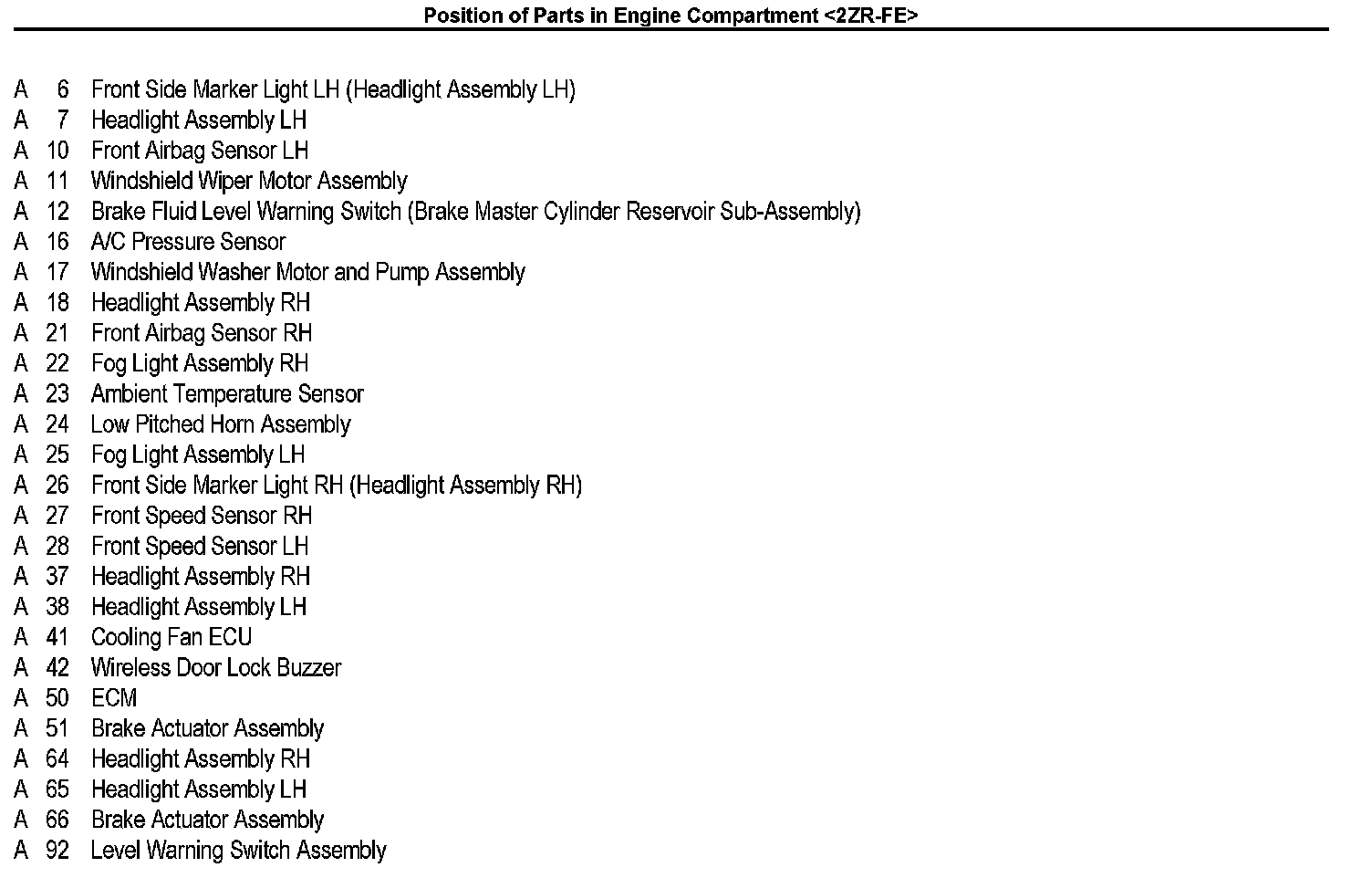

Legend:

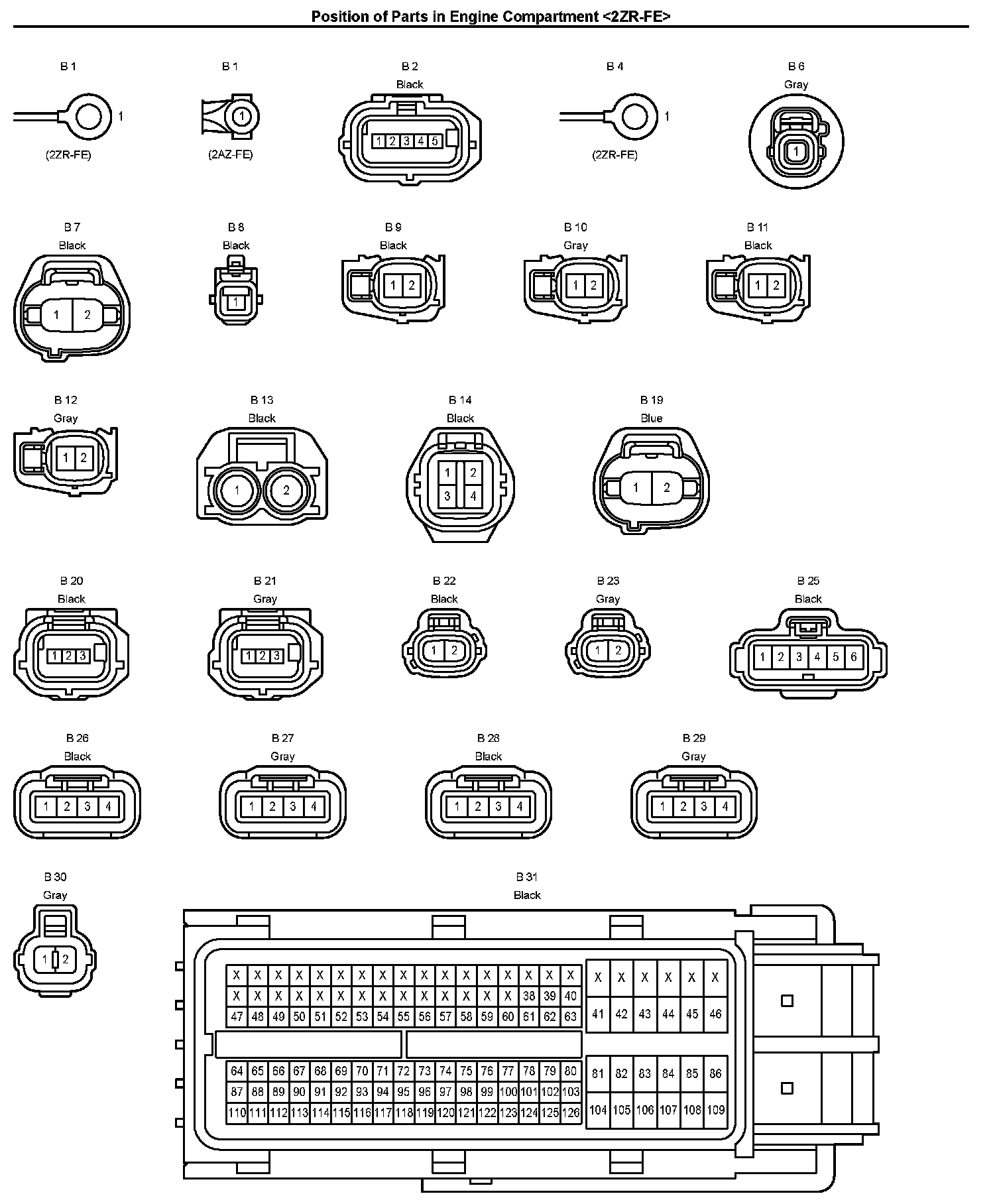

Connector Views:

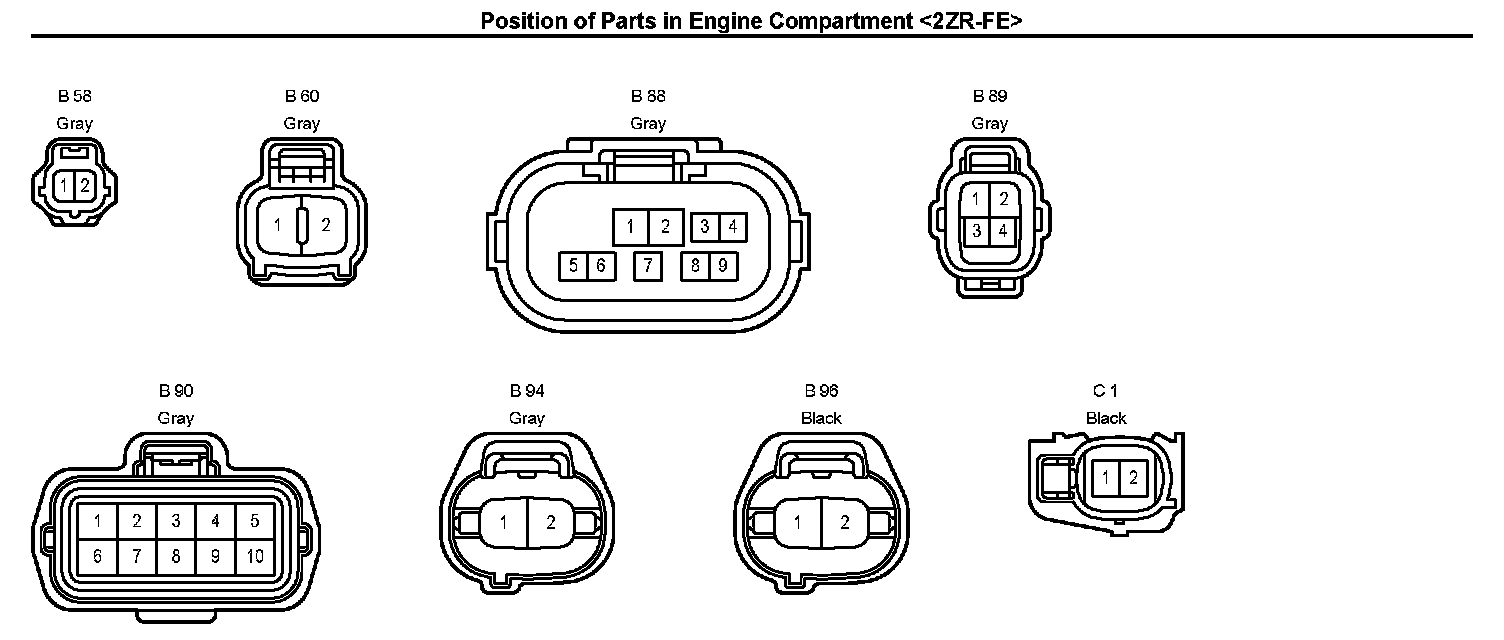

Connector Views:
