Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Corolla L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

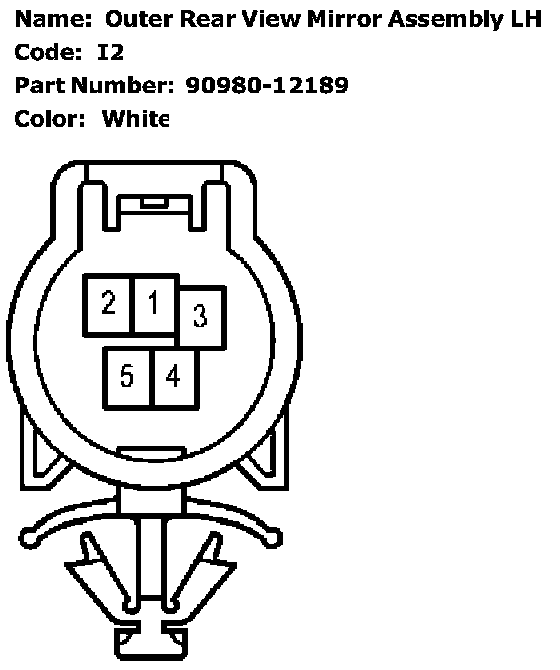

I2 (Outer Rear View Mirror Assembly LH)
I2 (Outer Rear View Mirror Assembly LH)
