Light Reminder (Except TMC Made)

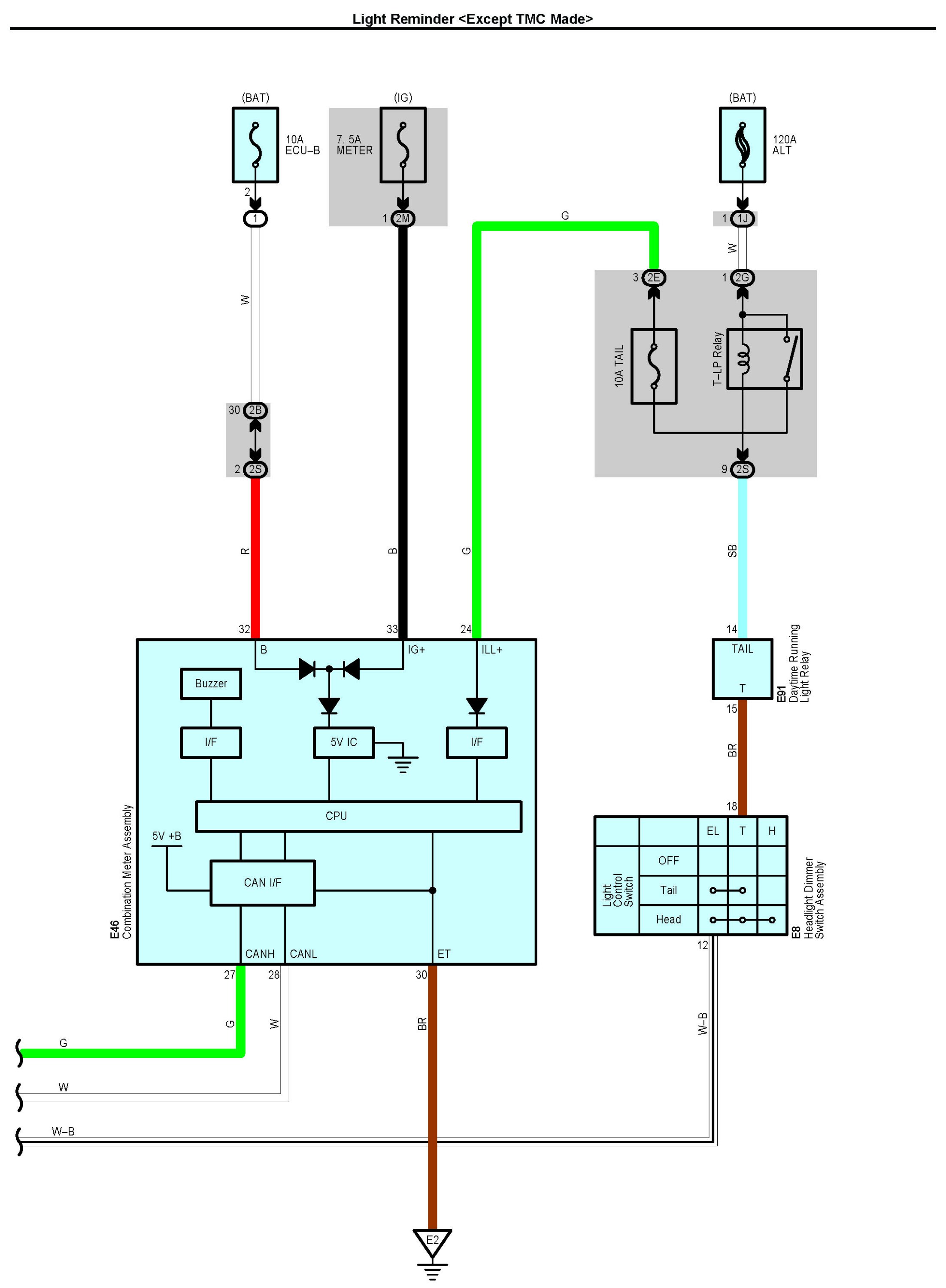

Light Reminder <Except TMC Made> Part 1:

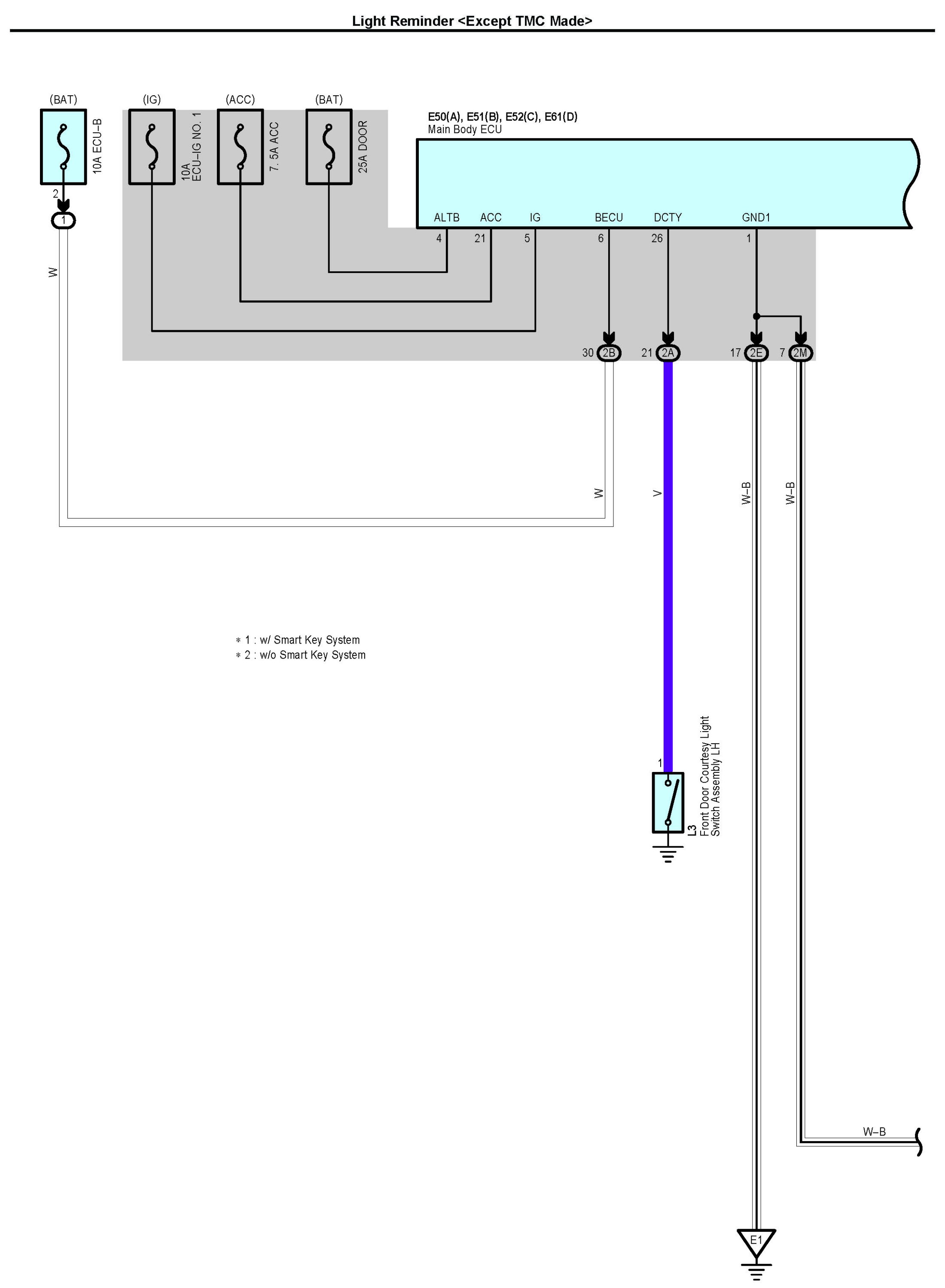

Light Reminder <Except TMC Made> Part 2:

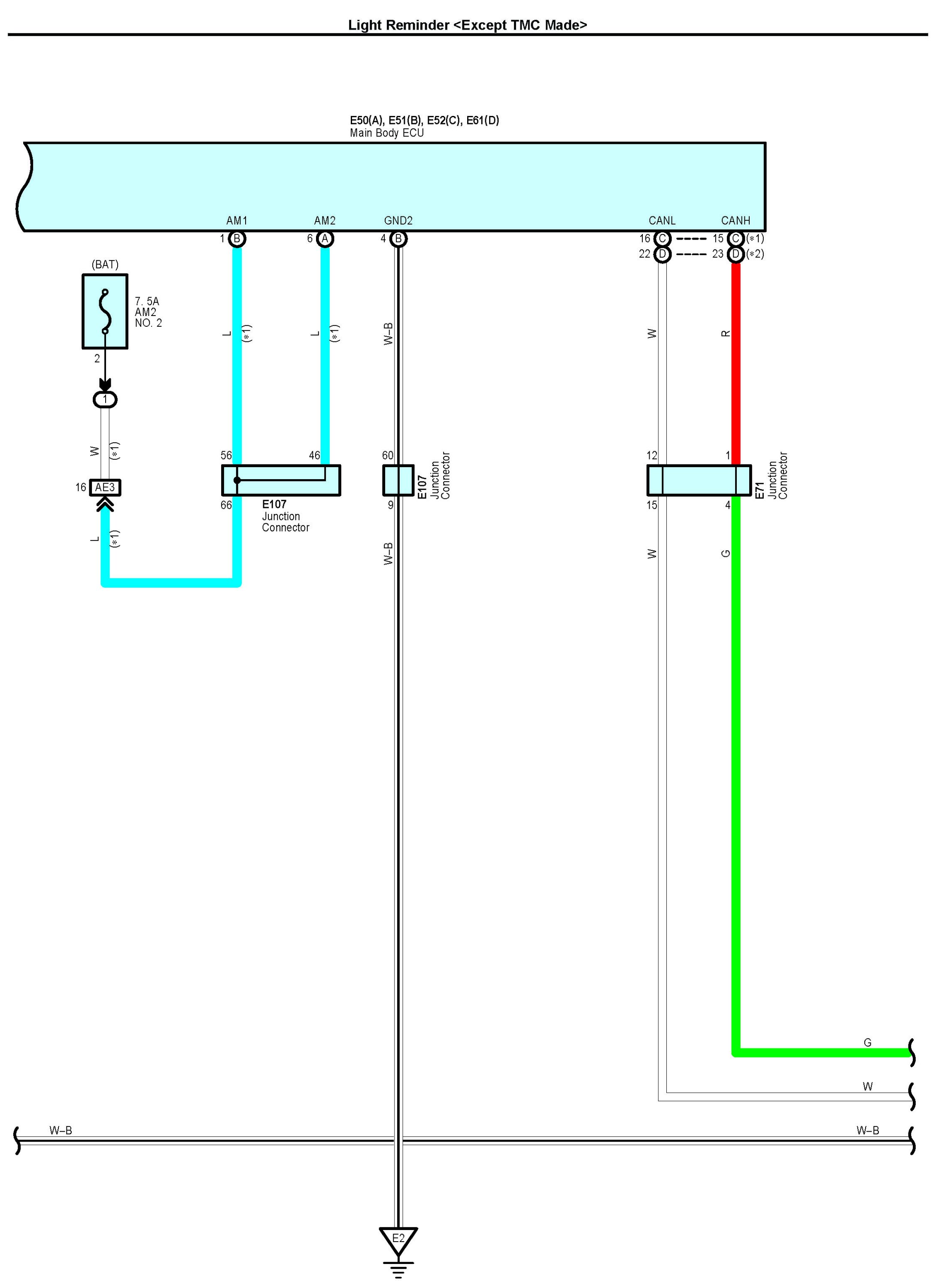

Light Reminder <Except TMC Made> Part 3:

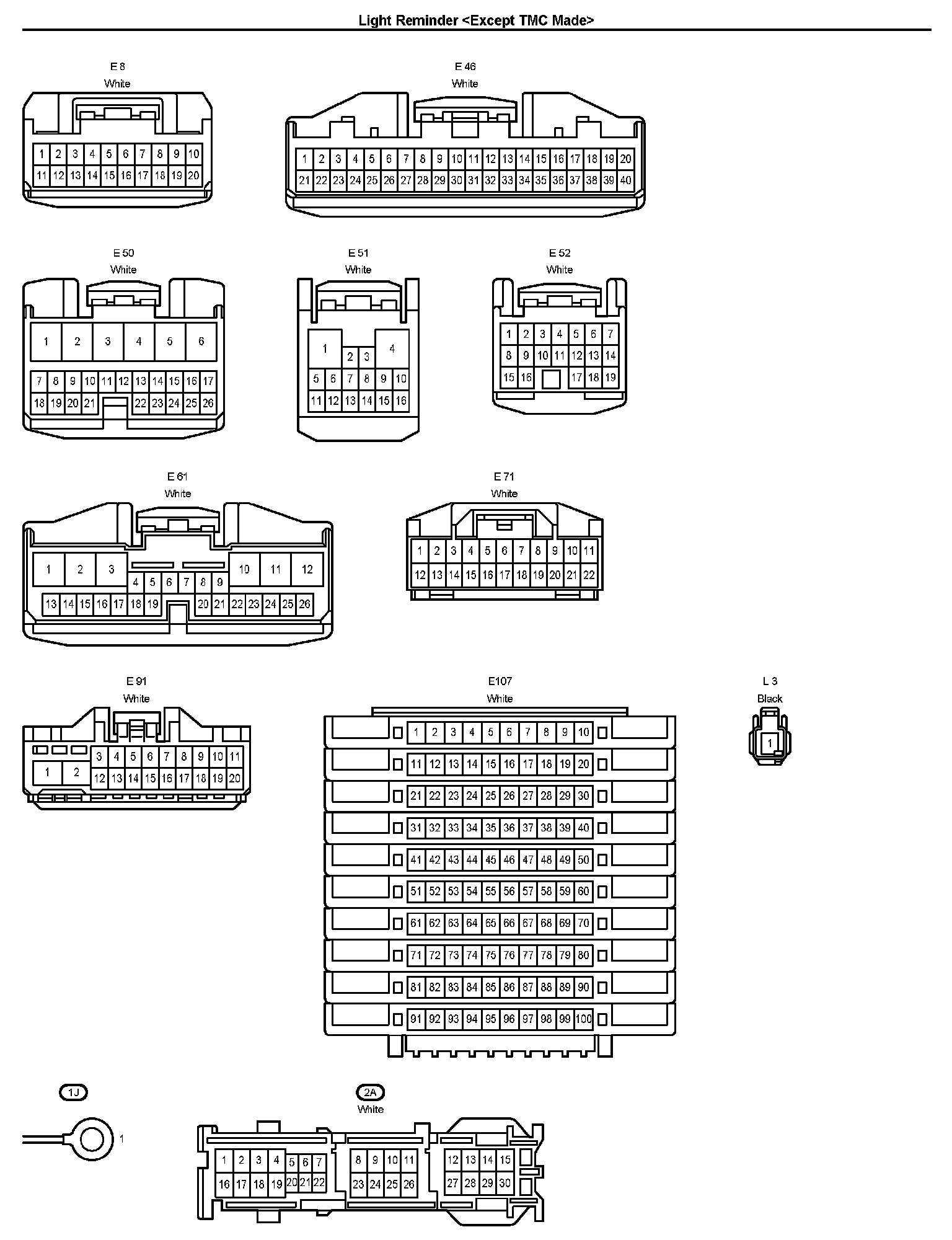

Connectors Part 1:

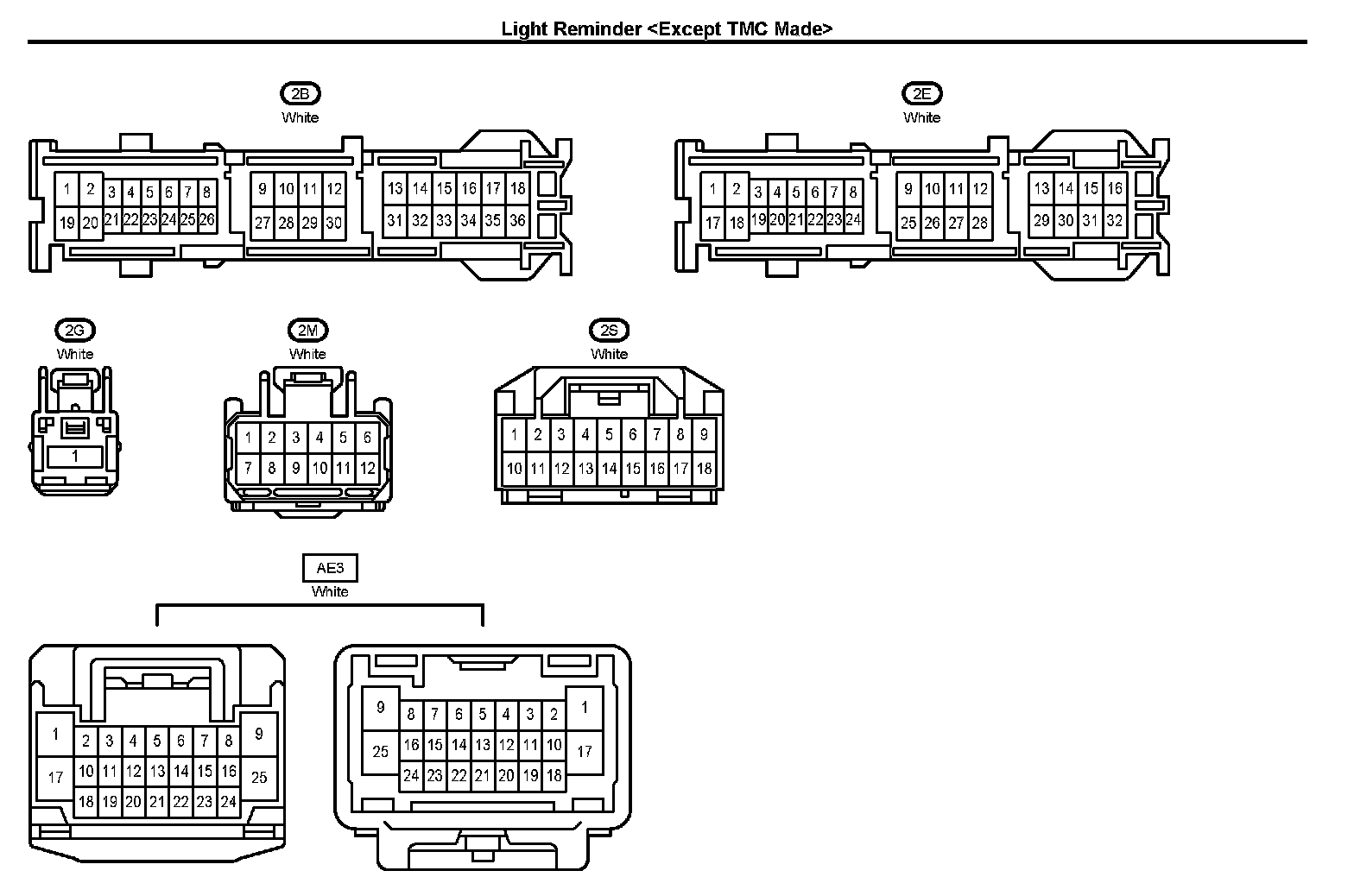

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
