Door Lock Control (Except TMC Made)

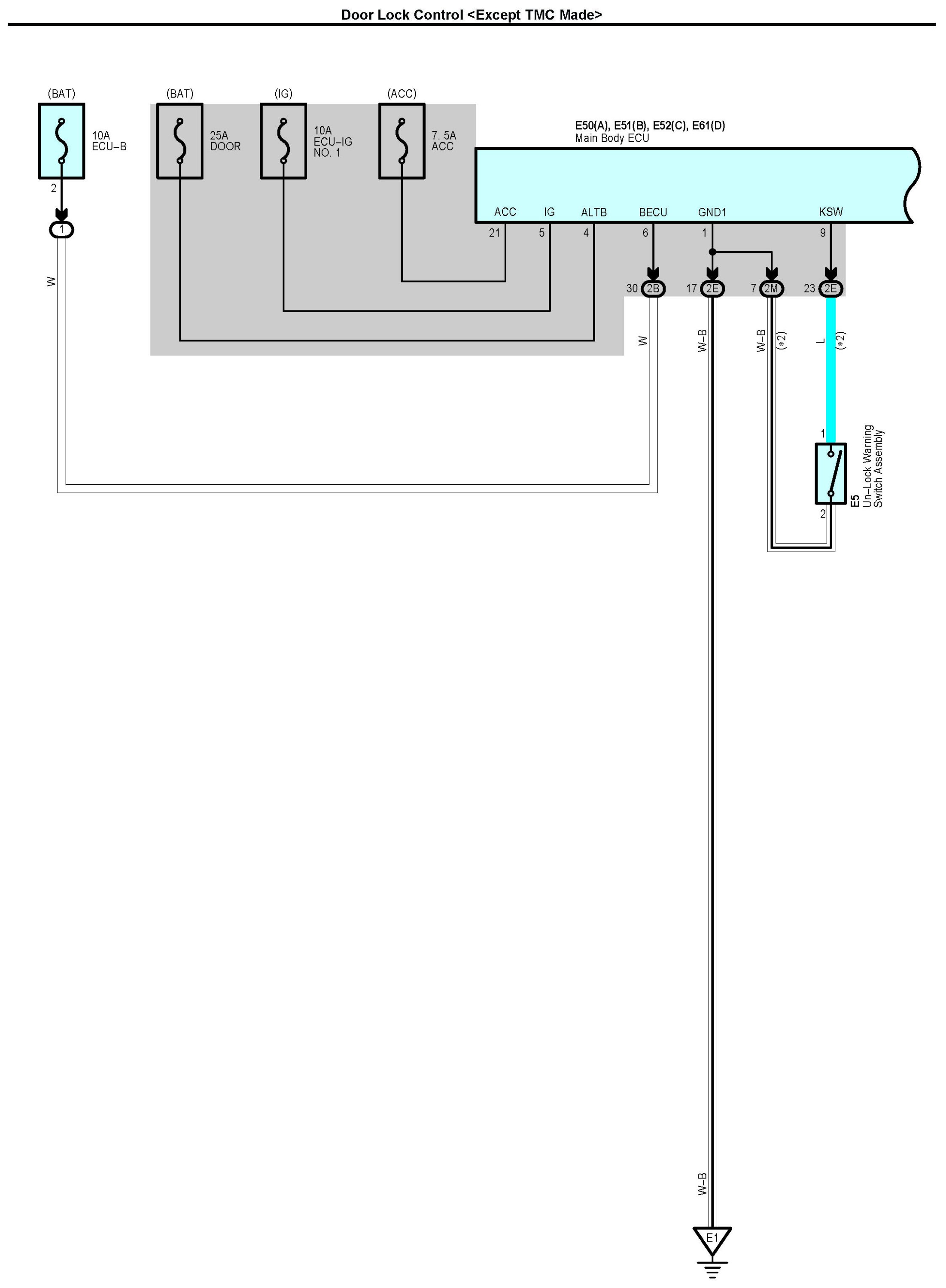

Door Lock Control <Except TMC Made> Part 1:

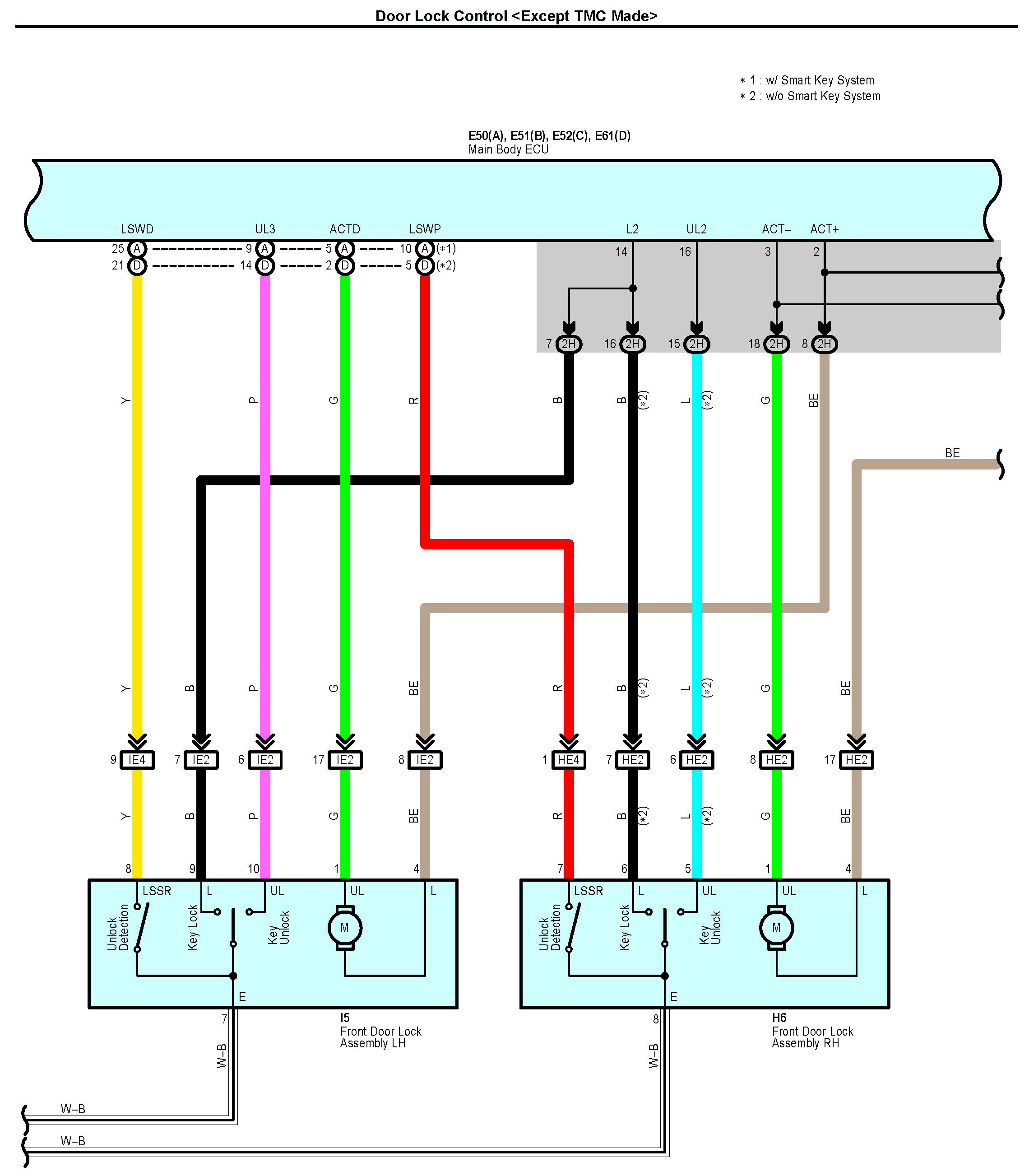

Door Lock Control <Except TMC Made> Part 2:

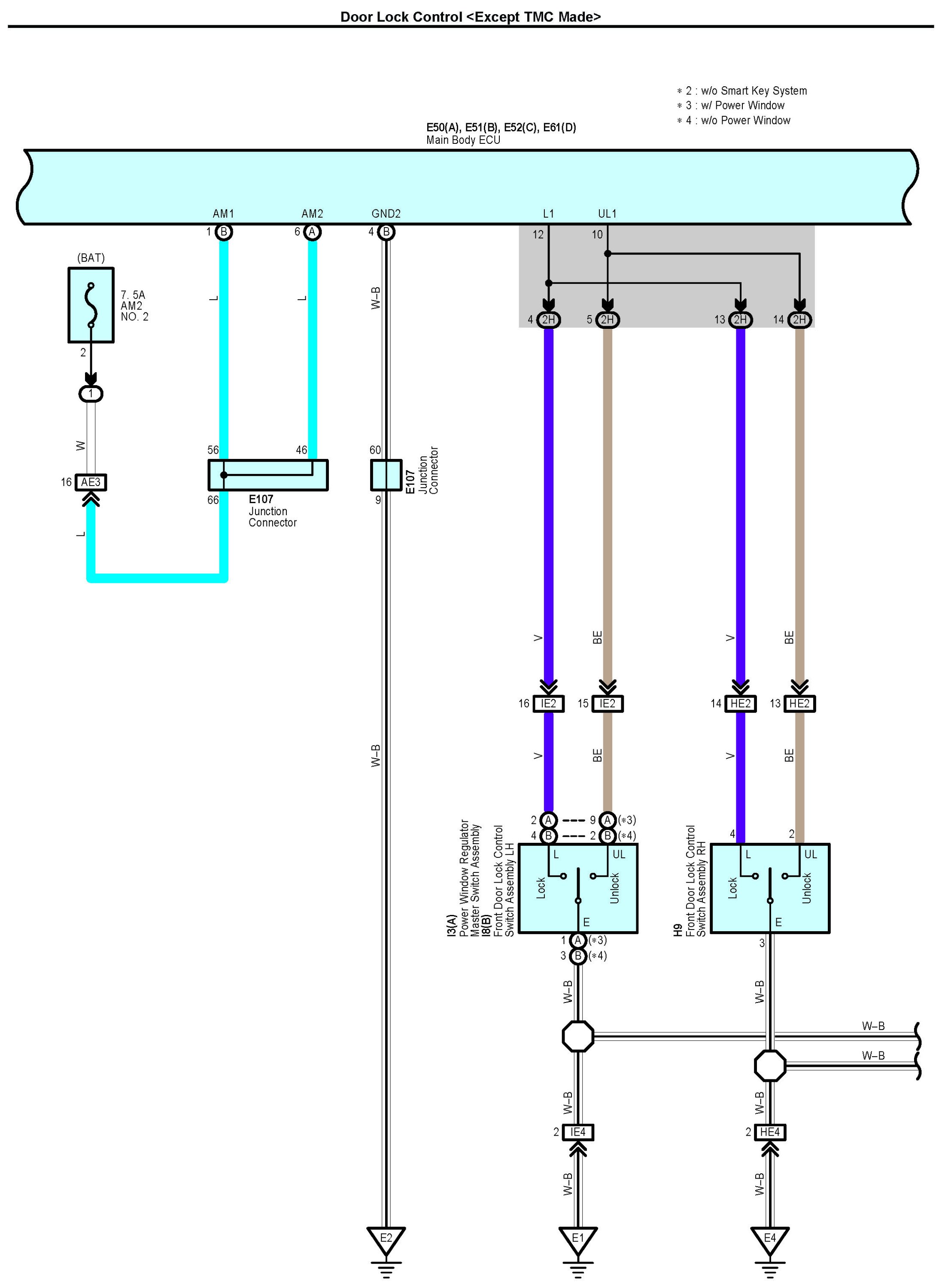

Door Lock Control <Except TMC Made> Part 3:

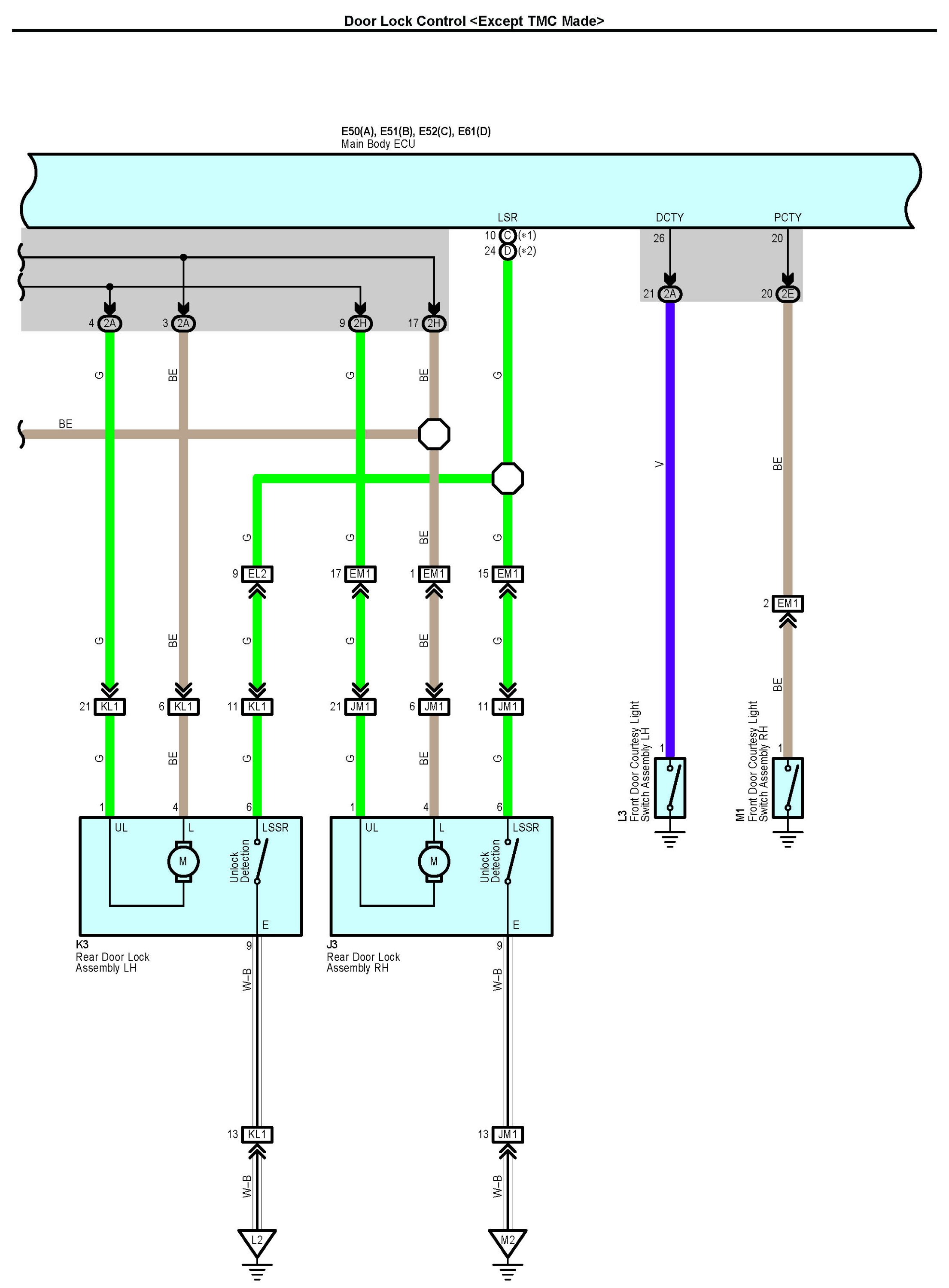

Door Lock Control <Except TMC Made> Part 4:

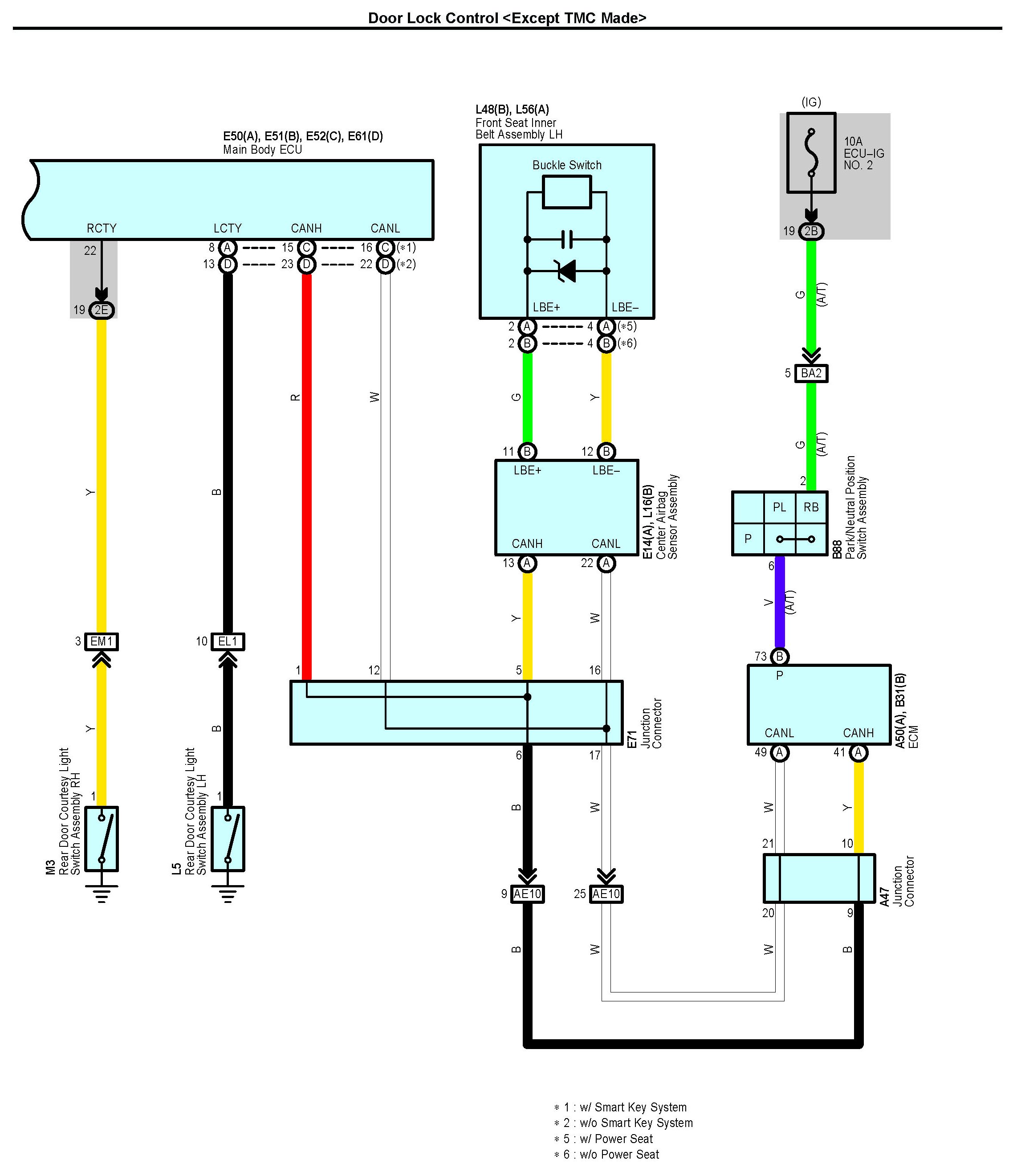

Door Lock Control <Except TMC Made> Part 5:

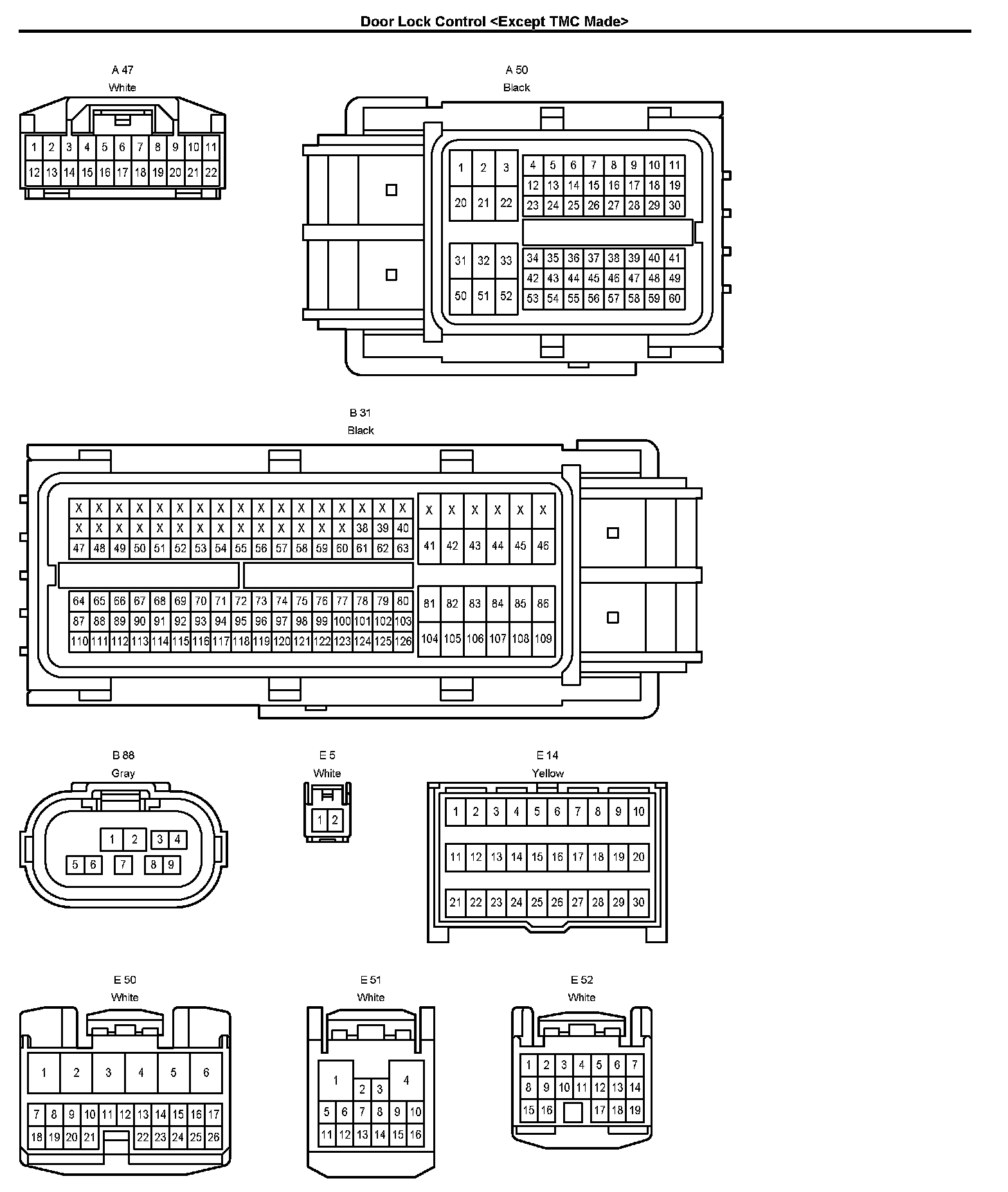

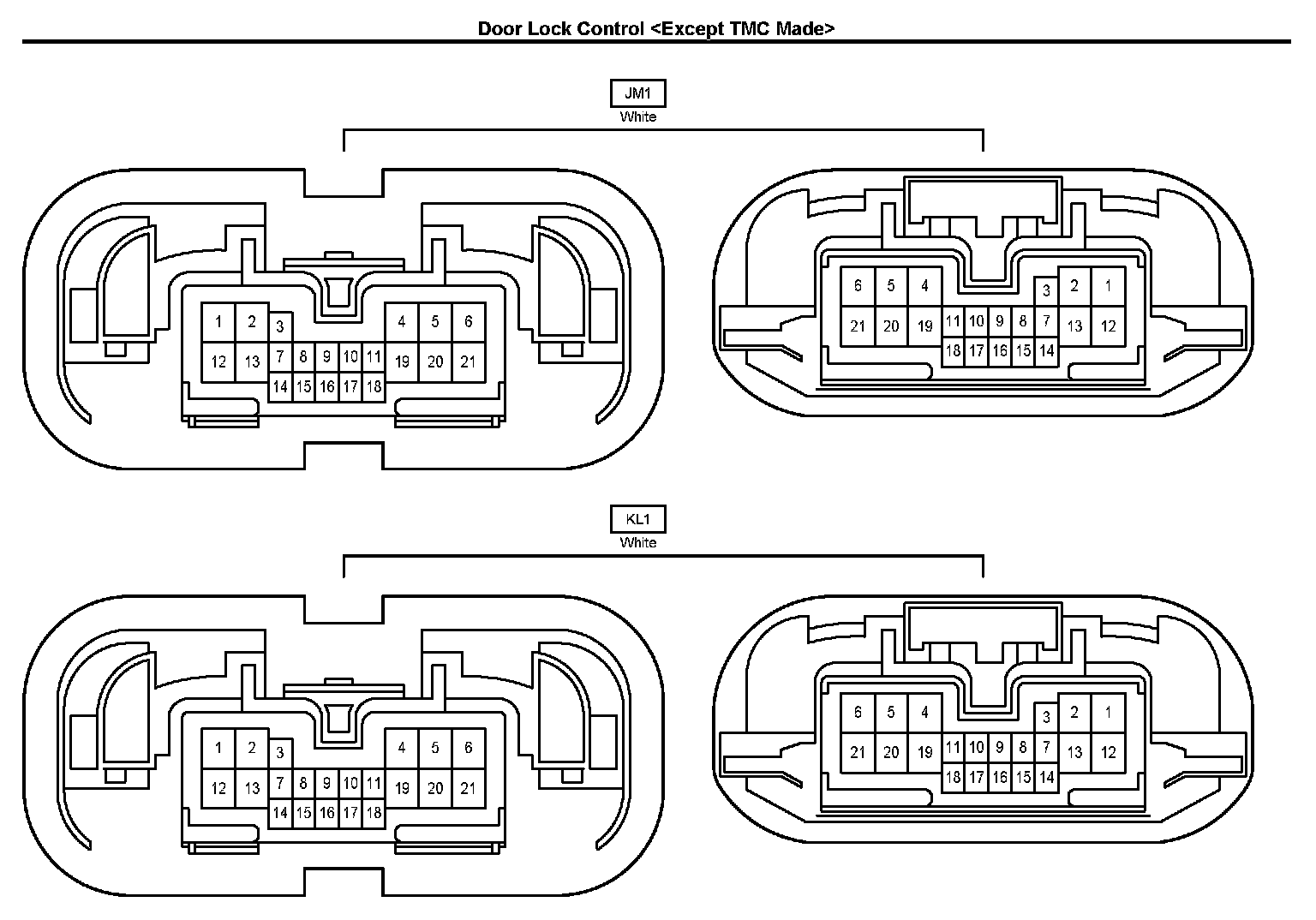

Connectors Part 1:

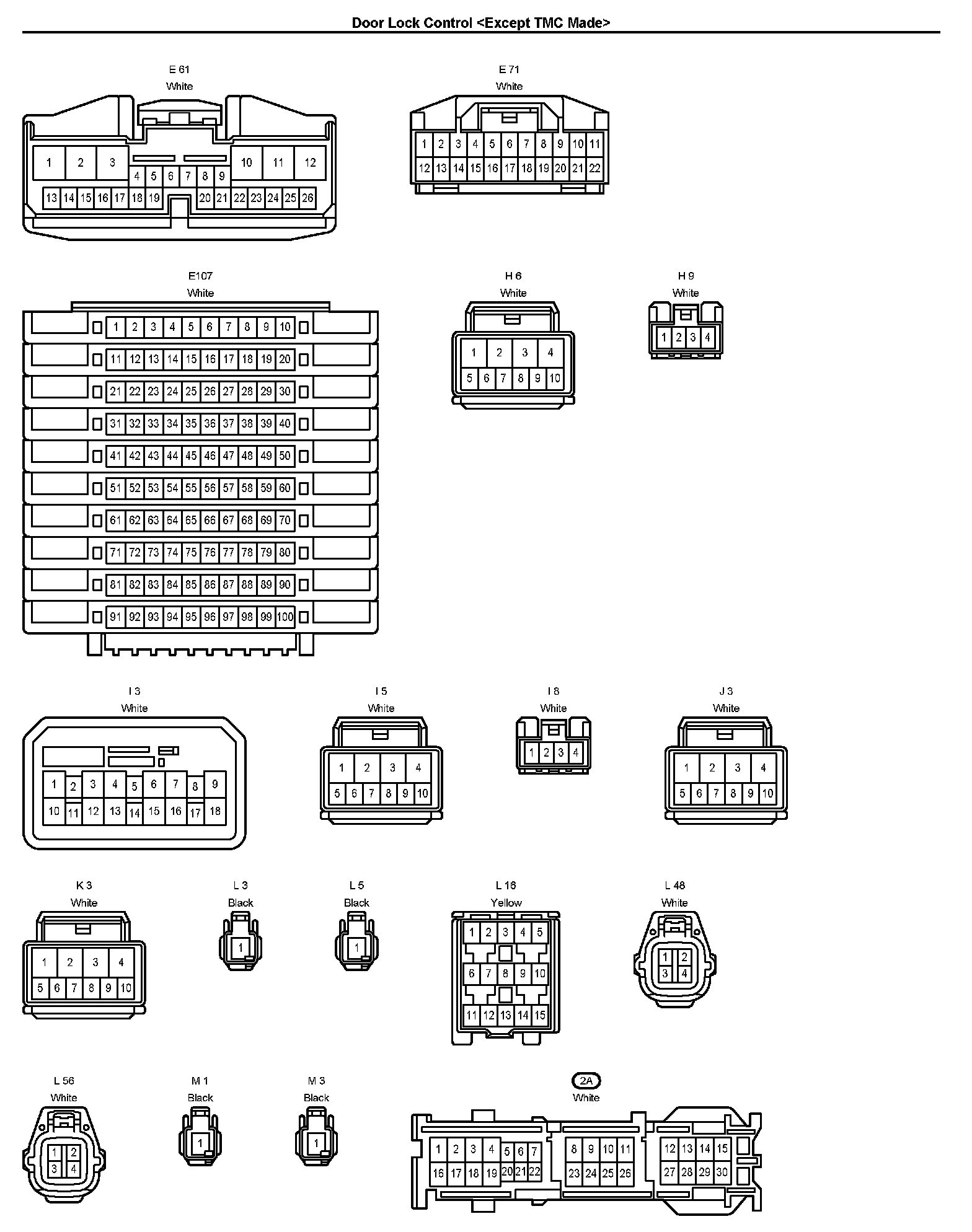

Connectors Part 2:

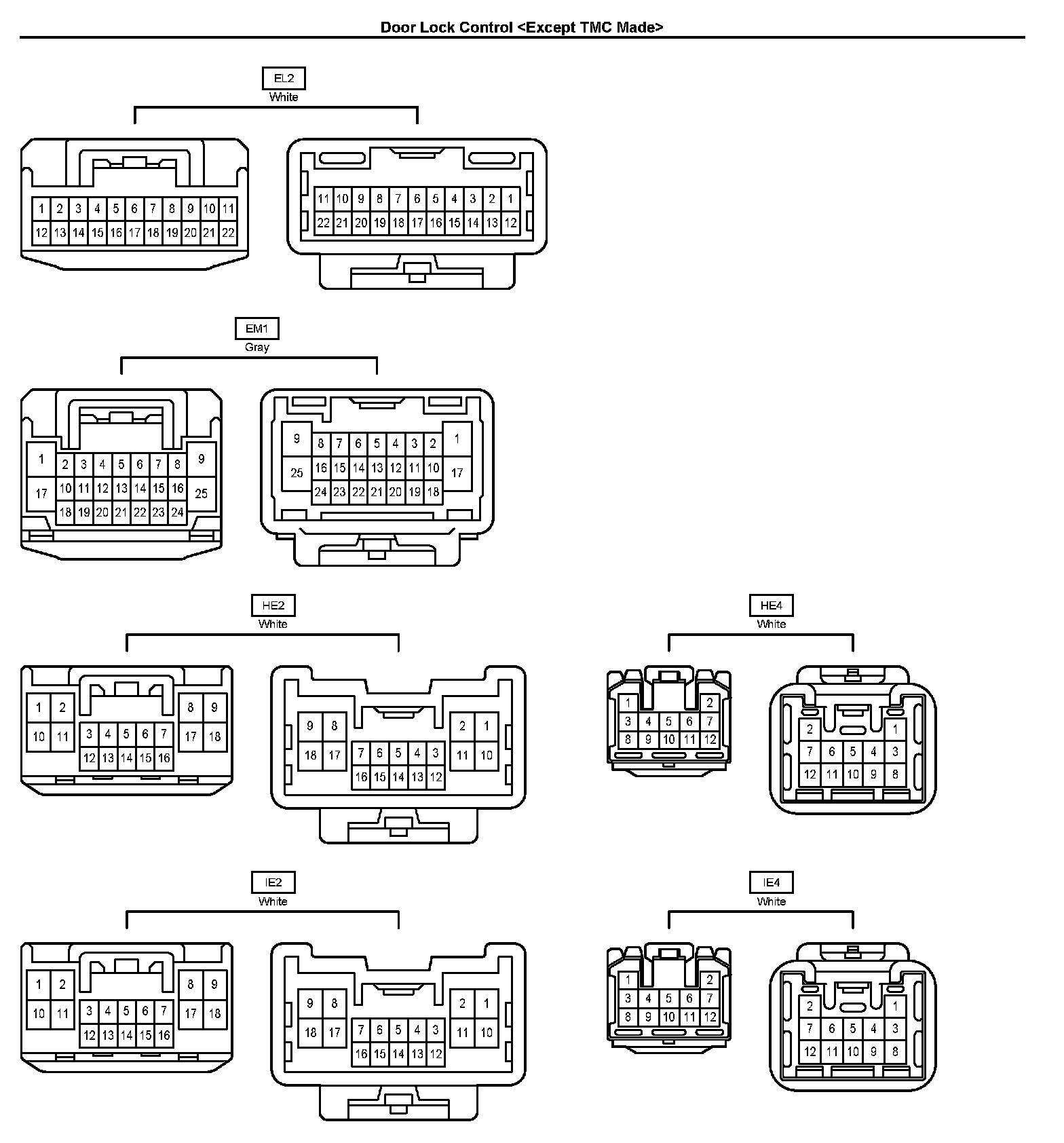

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
