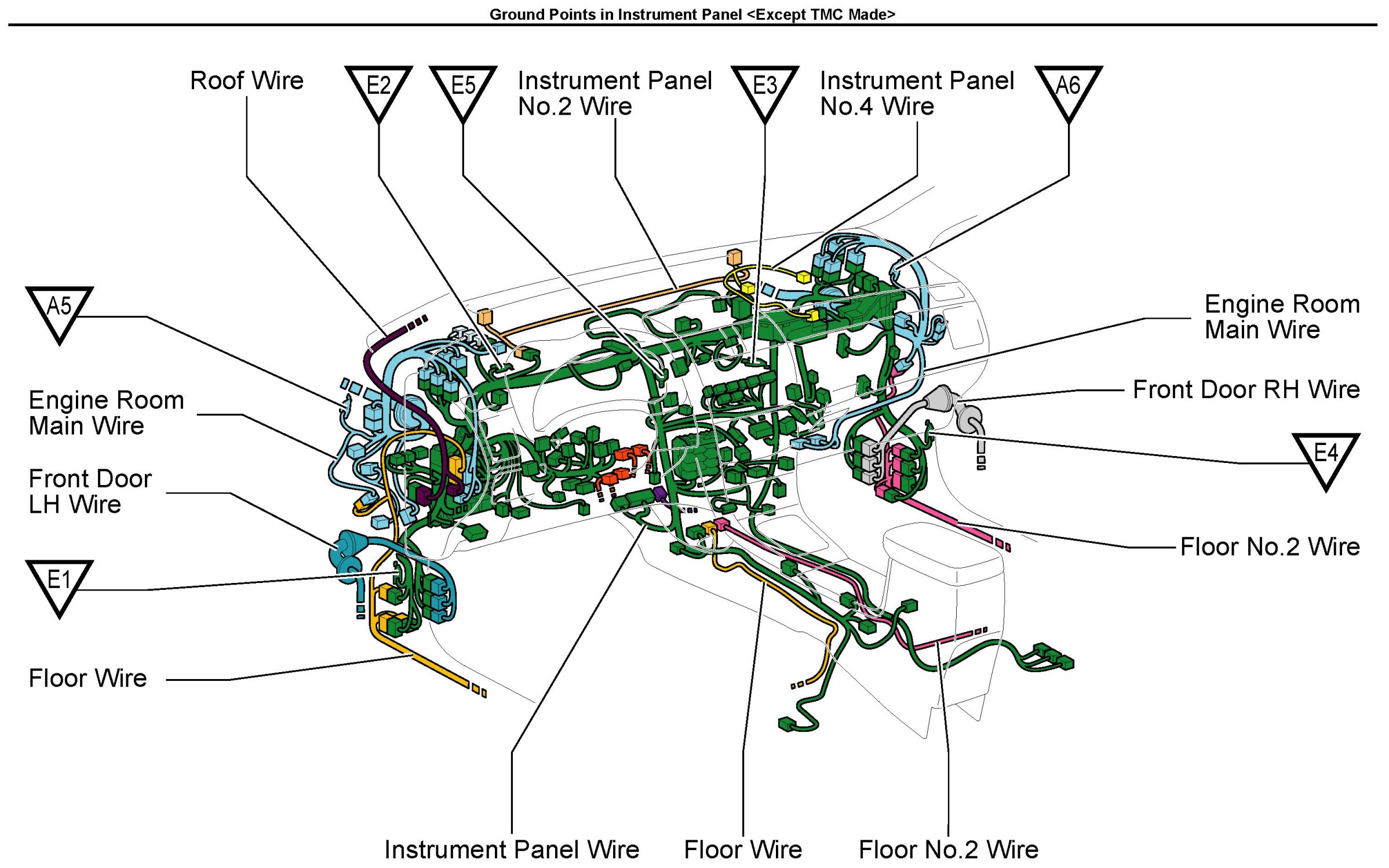

Ground Points In Instrument Panel (Except TMC Made)
Ground Points In Instrument Panel (Except TMC Made)
A5-E5:
