Cooling System
>>
Radiator Cooling Fan
>>
Description and Operation
Radiator Cooling Fan: Description and Operation

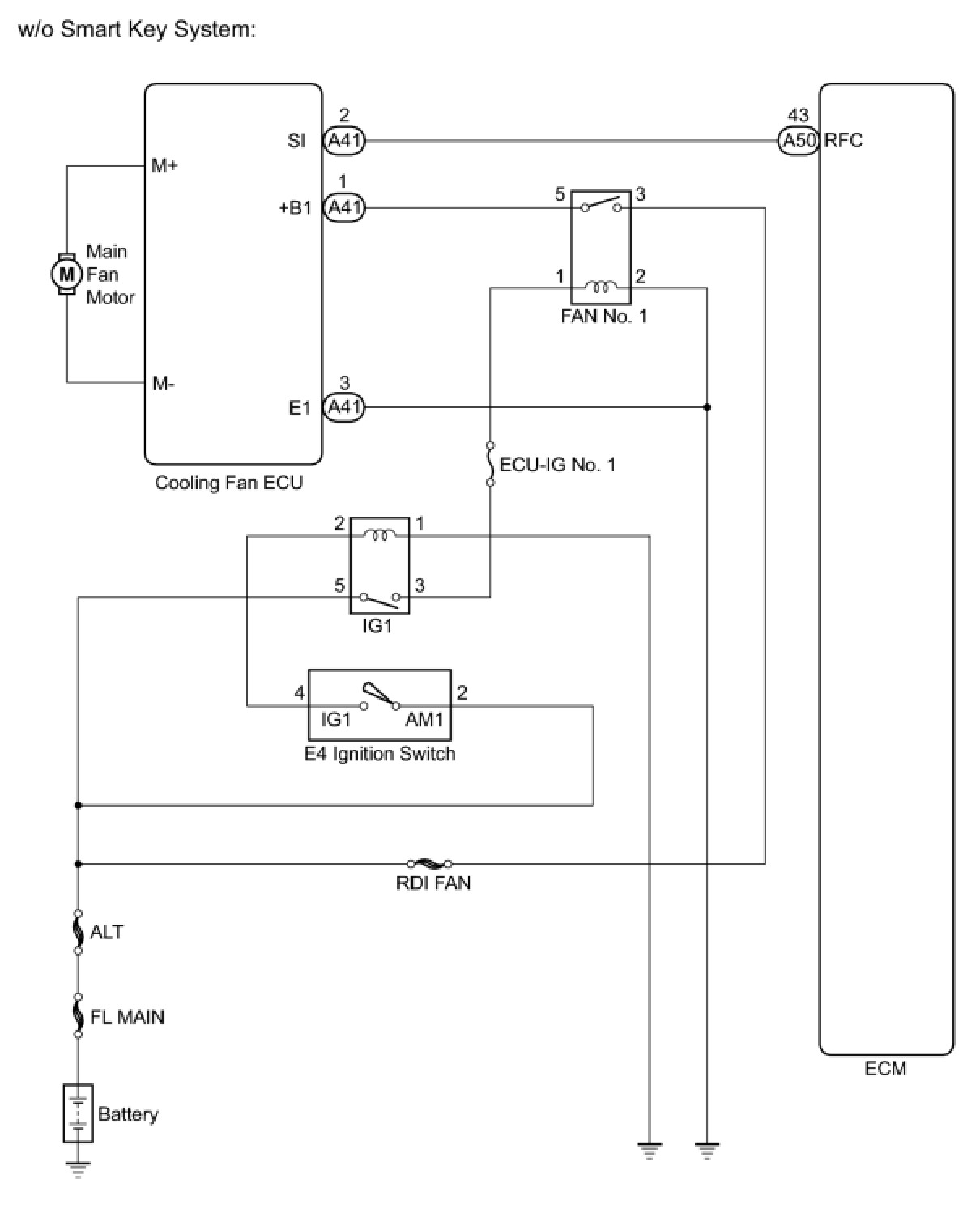

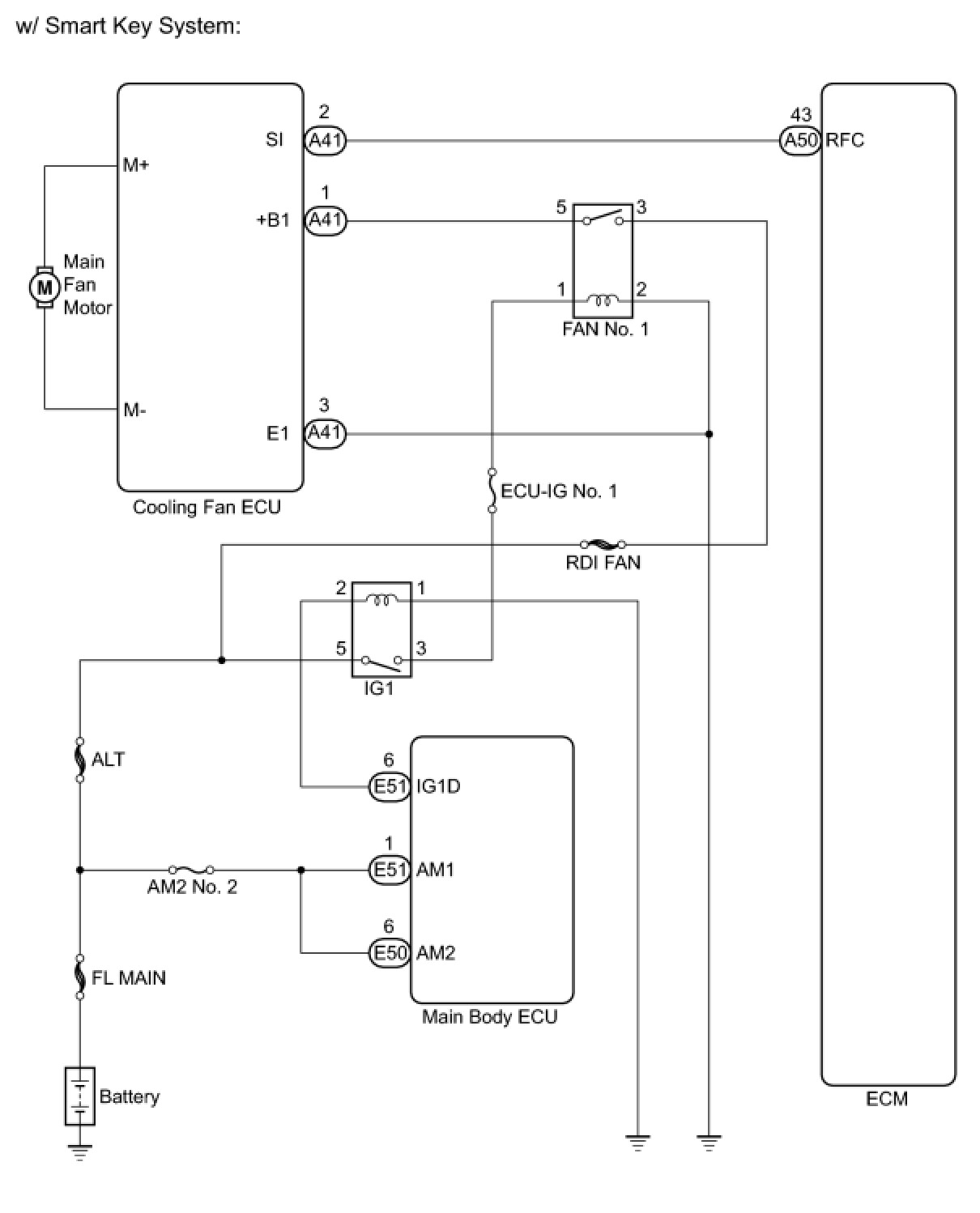

2ZR-FE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
