Removal

2ZR-FE COOLING: THERMOSTAT: REMOVAL

REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

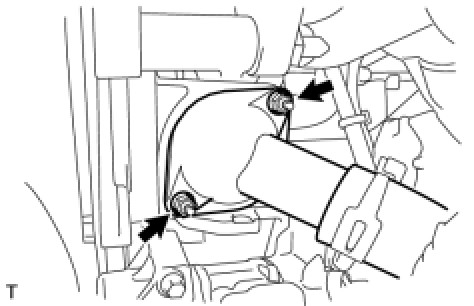

2. REMOVE WATER INLET





(a) Remove the 2 nuts and water inlet.

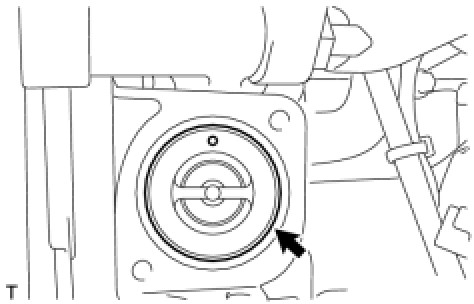

3. REMOVE THERMOSTAT





(a) Remove the thermostat.
(b) Remove the gasket from the thermostat.
