Removal

2ZR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE NO. 2 CYLINDER HEAD COVER Removal
4. REMOVE V-RIBBED BELT Removal
5. REMOVE CRANKSHAFT PULLEY

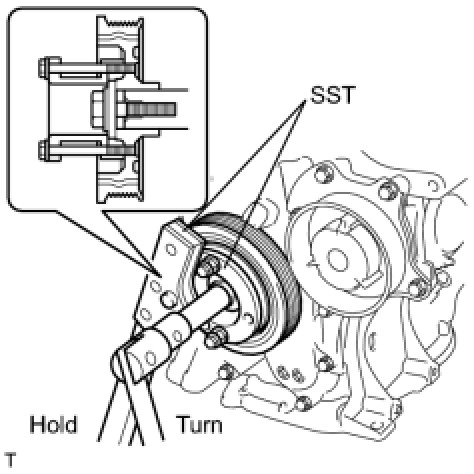

(a) Using SST, hold the pulley in place and loosen the pulley bolt.
SST: 09213-58013
SST: 09330-00021
NOTE: Check the SST installation positions when installing them to prevent the SST fixing bolts from coming into contact with the timing chain cover sub-assembly.





(b) Using SST, remove the crankshaft pulley and pulley bolt.
SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021
6. REMOVE TIMING CHAIN COVER OIL SEAL

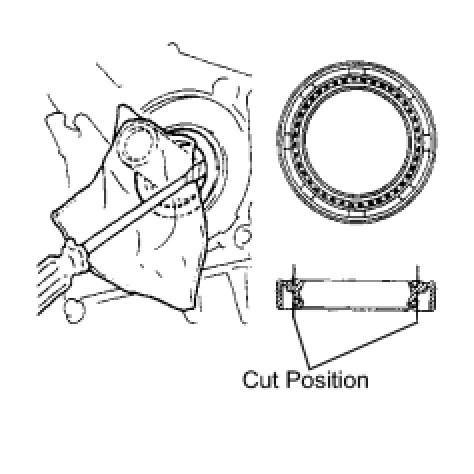

(a) Using a knife, cut off the lip of the oil seal.
(b) Using a screwdriver with its tip wrapped with tape, pry out the oil seal.
NOTE: After removing, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.
