2ZR-FE INTAKE / EXHAUST: EXHAUST PIPE: REMOVAL

REMOVAL

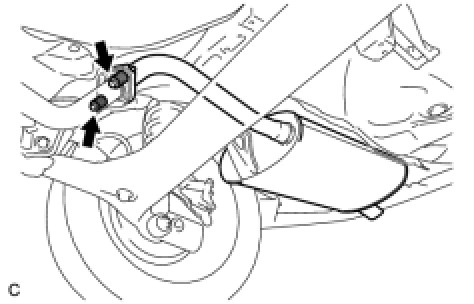

1. REMOVE TAIL EXHAUST PIPE ASSEMBLY





(a) Remove the 2 bolts and 2 compression springs.
(b) Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
(c) Remove the gasket from the front exhaust pipe assembly.
2. REMOVE HEATED OXYGEN SENSOR Removal

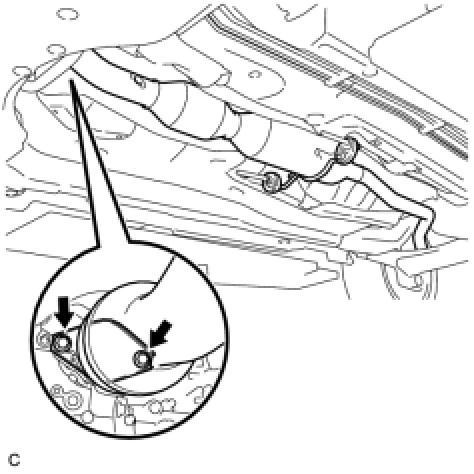

3. REMOVE FRONT EXHAUST PIPE ASSEMBLY





(a) Remove the 2 bolts and 2 compression springs.
(b) Remove the front exhaust pipe assembly from the 2 exhaust pipe supports.
(c) Remove the gasket from the exhaust manifold.
