Disassembly

HEATING / AIR CONDITIONING: CONDENSER: DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 1 COOLER CONDENSER CUSHION

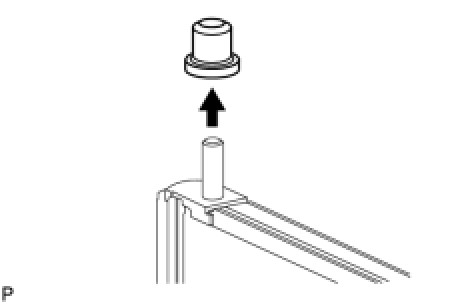

(a) Remove the 4 No. 1 cooler condenser cushions.
2. REMOVE COOLER DRYER

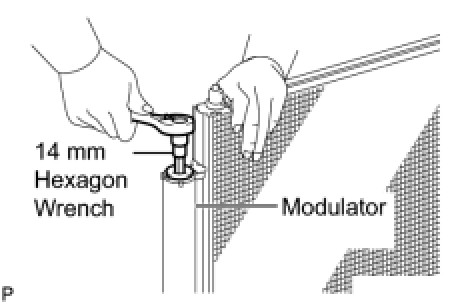

(a) Using a 14 mm straight hexagon wrench, remove the cap from the modulator.

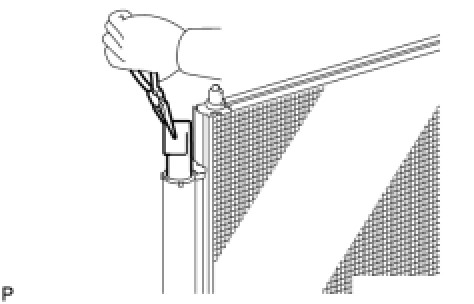

(b) Using pliers, remove the cooler dryer.
