Disassembly

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL (for Manual Air Conditioning System): DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 1 HEATER CONTROL SUB-ASSEMBLY

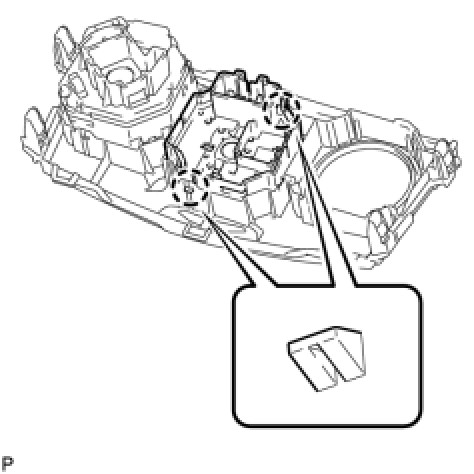

(a) Disengage the 2 claws and remove the No. 1 heater control sub-assembly.

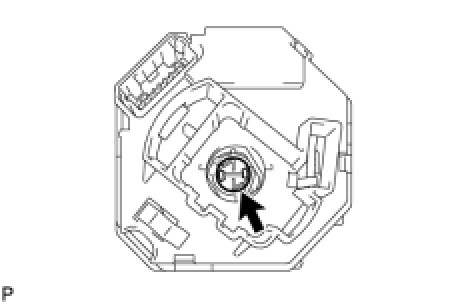

(b) Remove the bulb.
2. REMOVE NO. 2 HEATER CONTROL SUB-ASSEMBLY

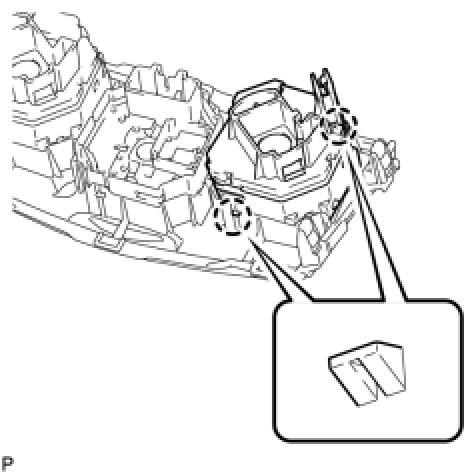

(a) Disengage the 2 claws and remove the No. 2 heater control sub-assembly.

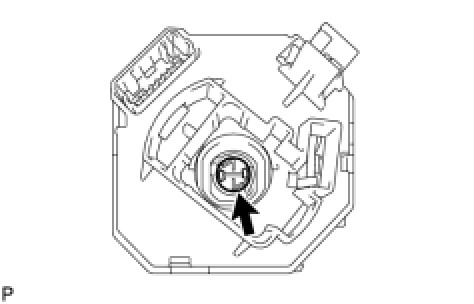

(b) Remove the bulb.
3. REMOVE NO. 3 HEATER CONTROL SUB-ASSEMBLY

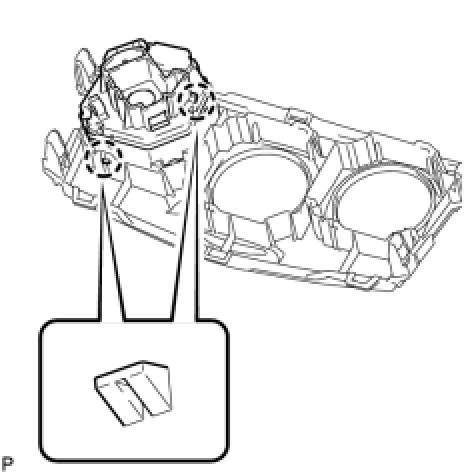

(a) Disengage the 2 claws and remove the No. 3 heater control sub-assembly.

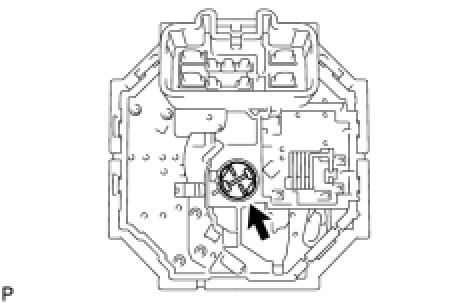

(b) Remove the bulb.
