Components








HEATING / AIR CONDITIONING: AIR CONDITIONING UNIT: COMPONENTS

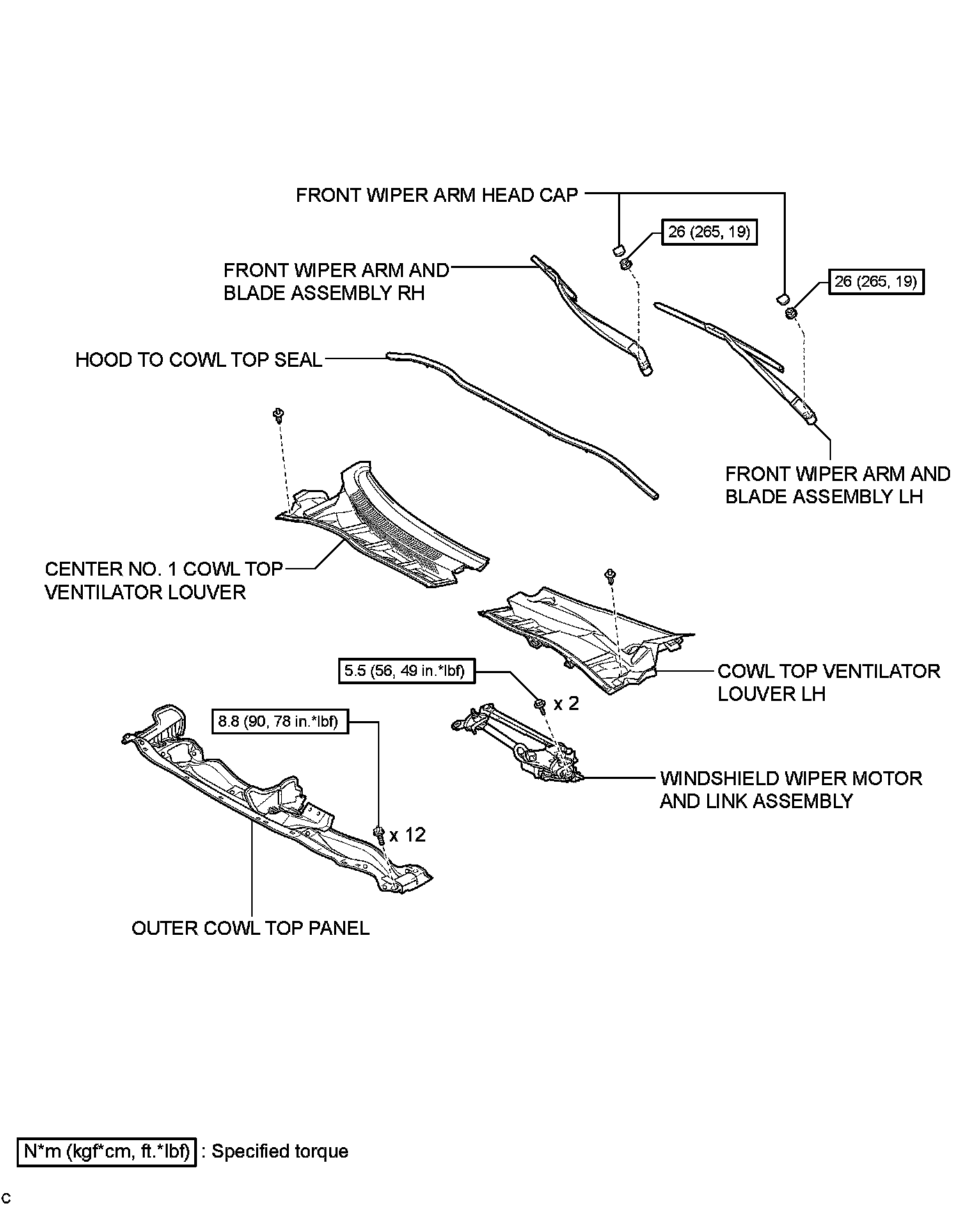

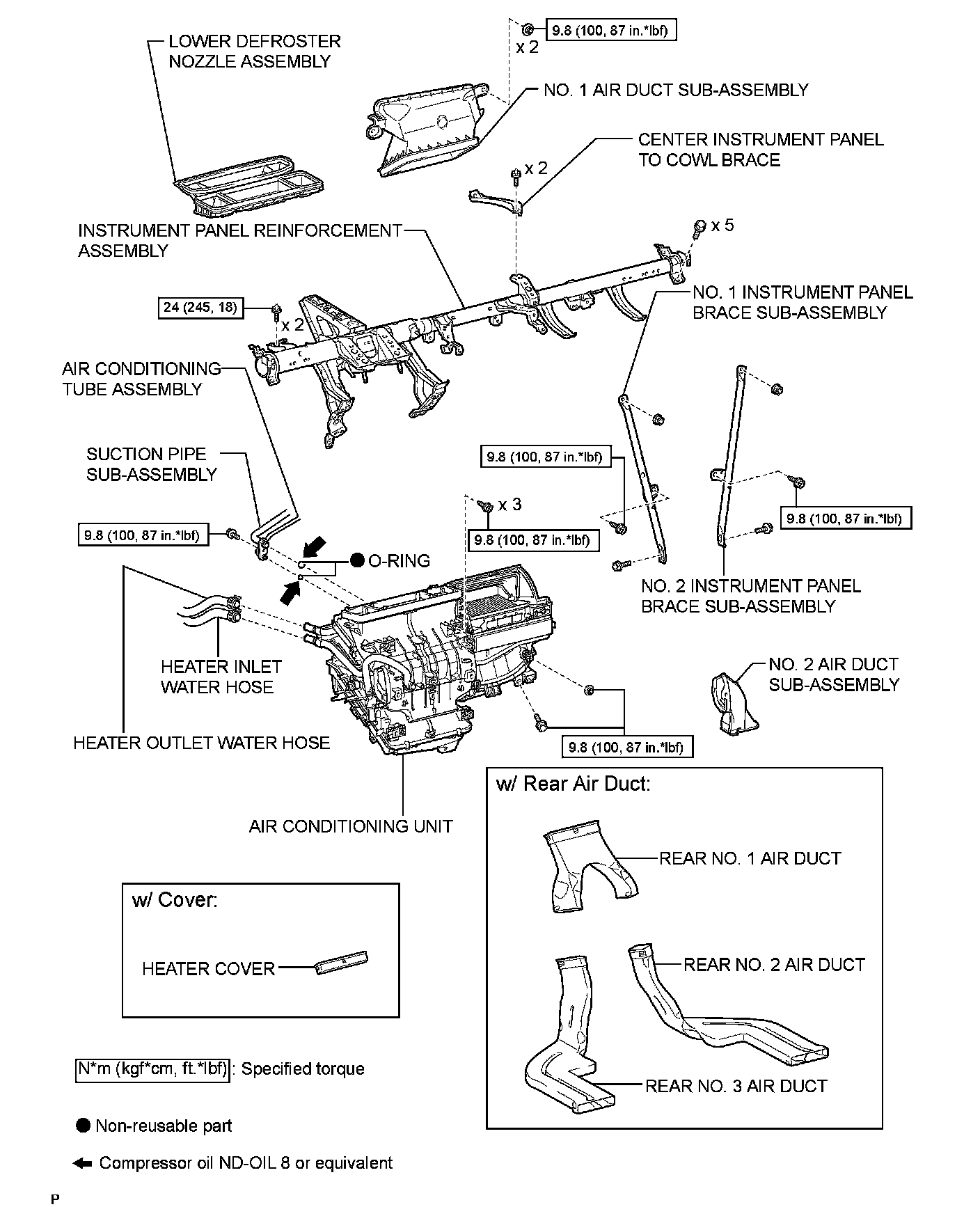

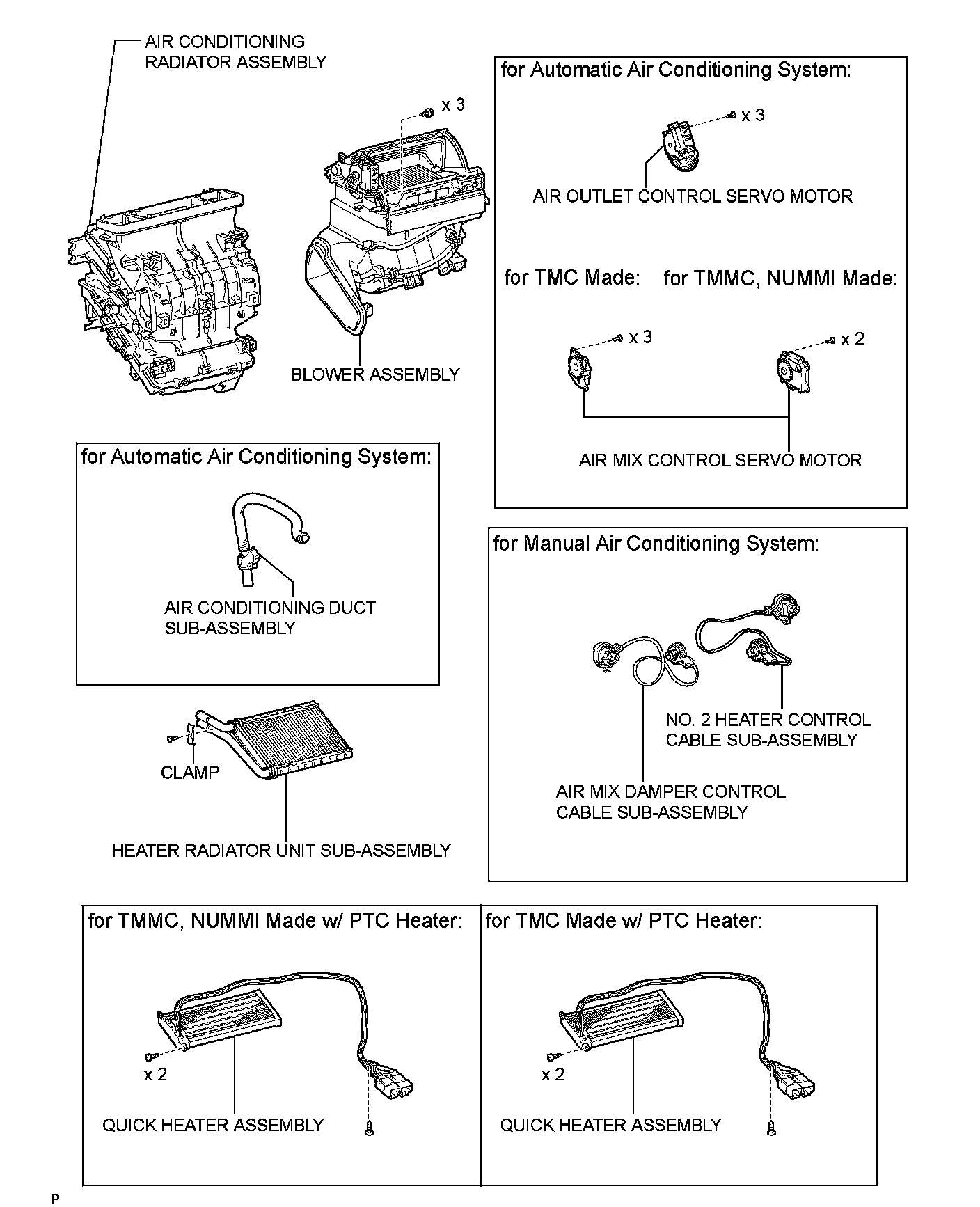

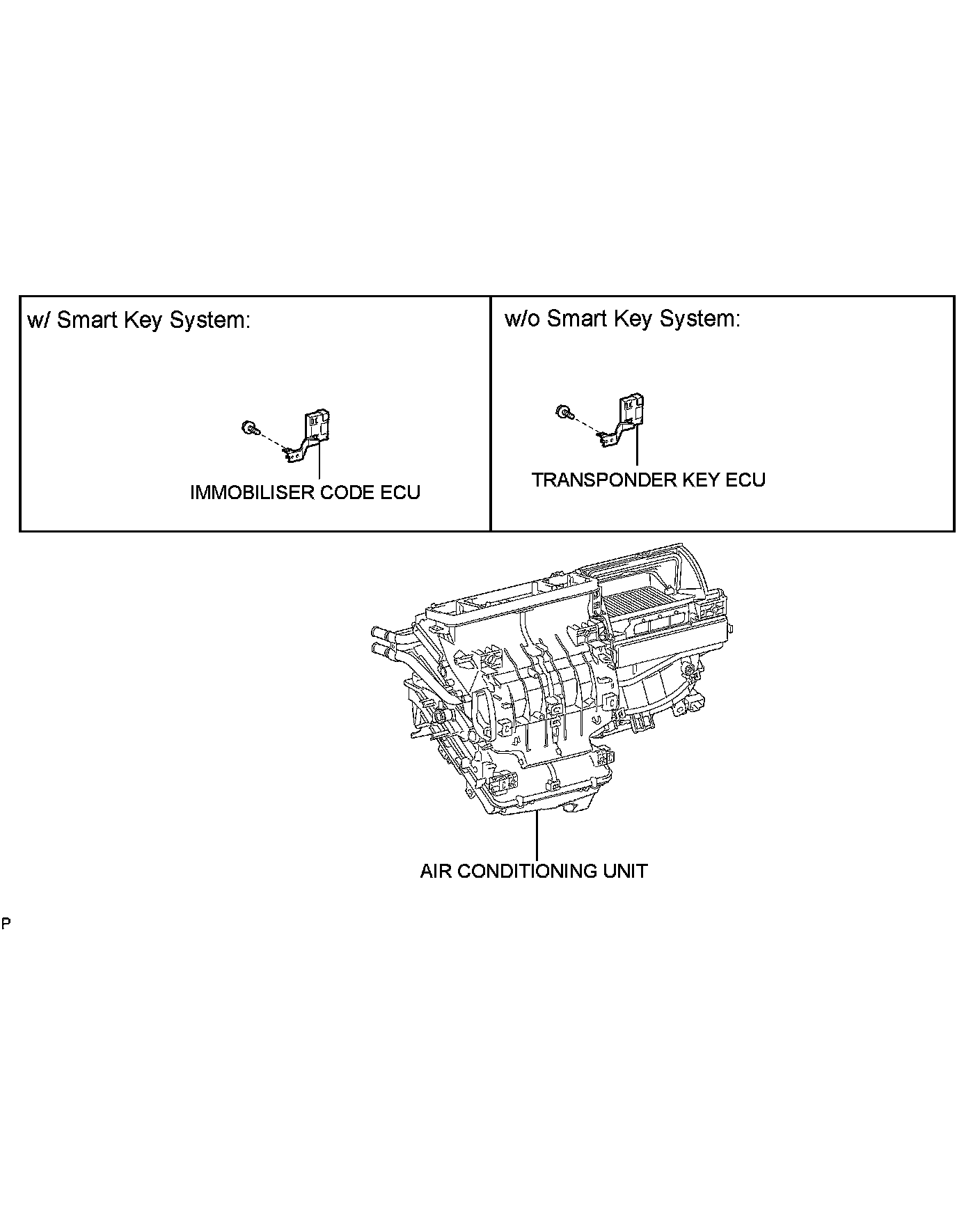

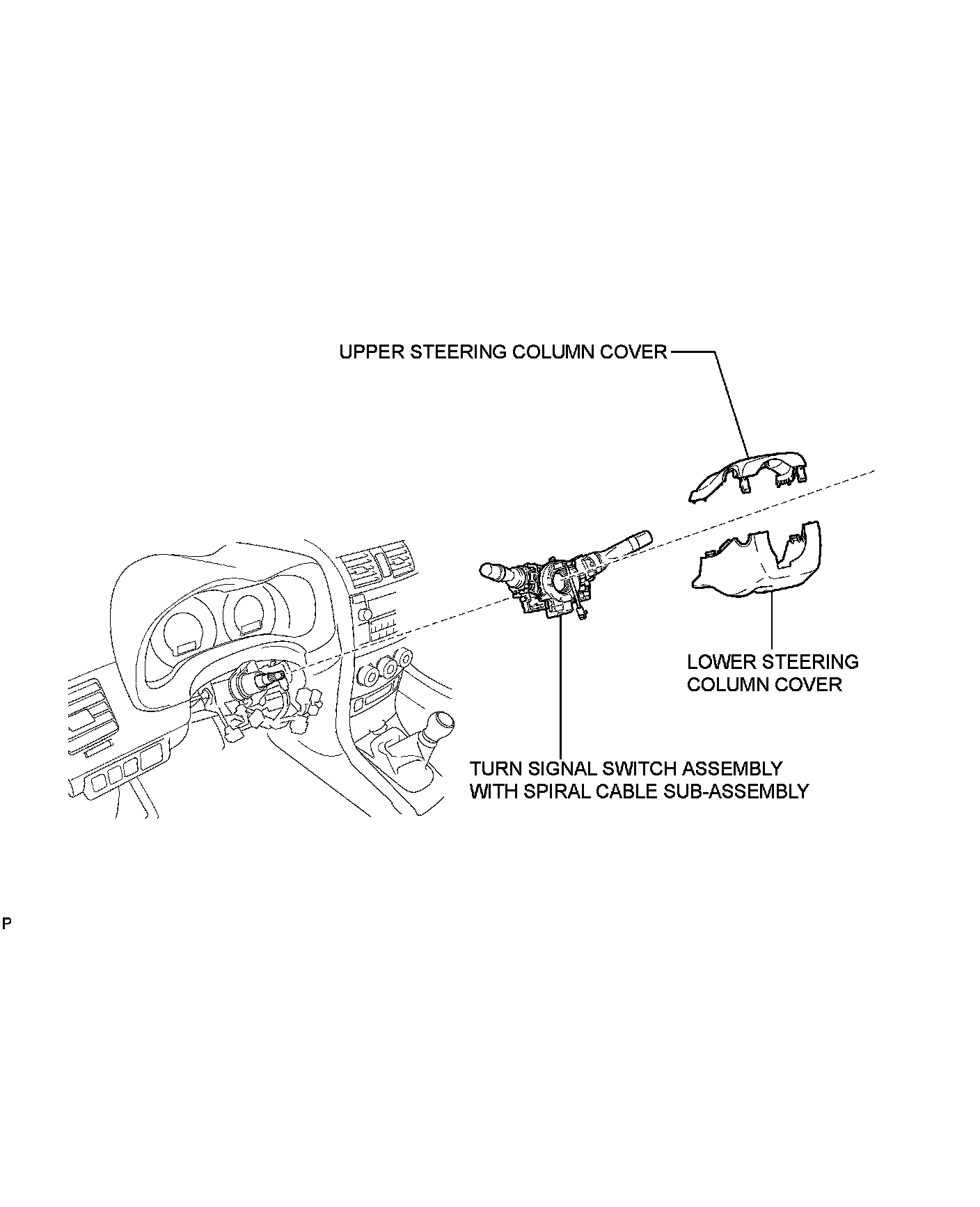

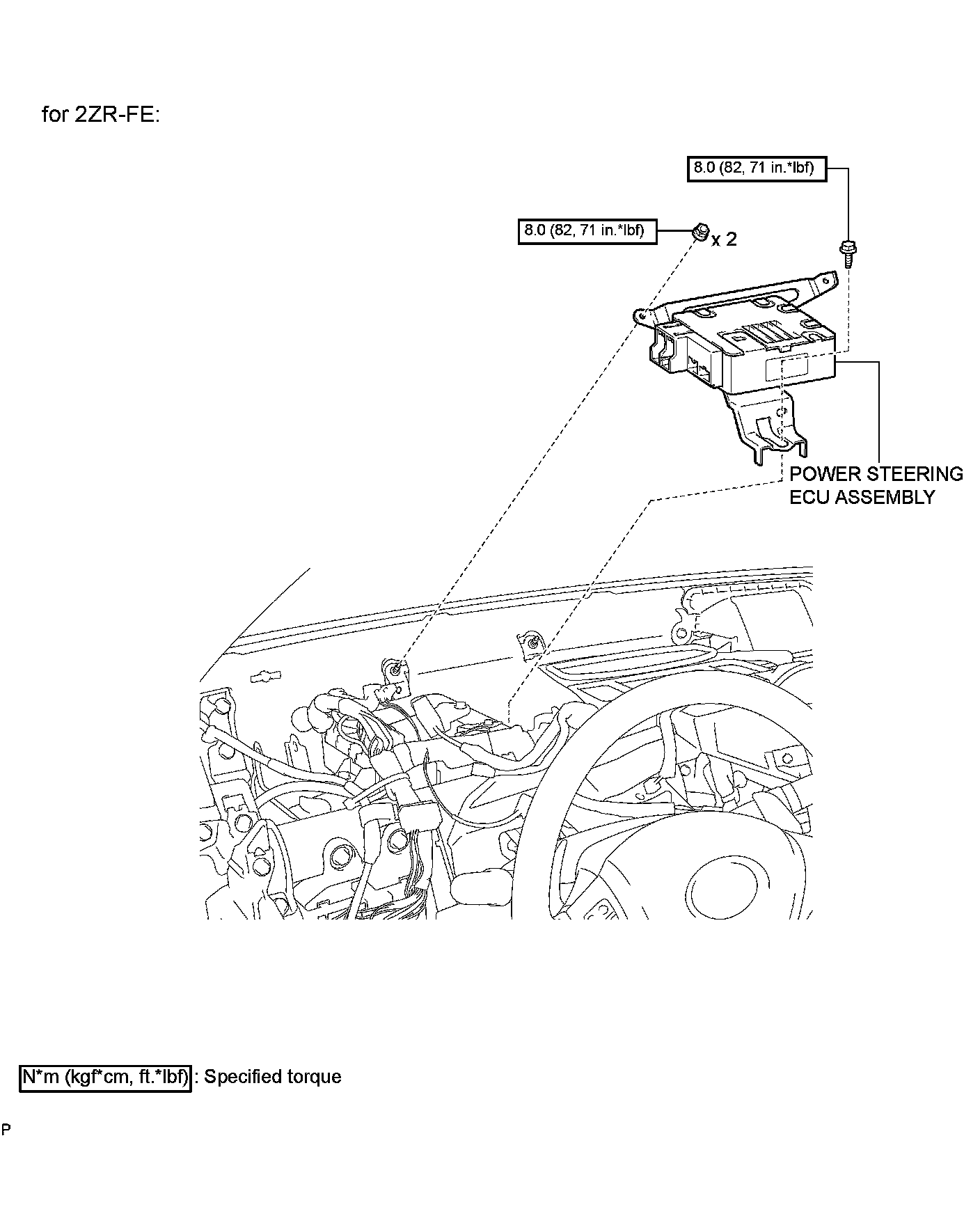

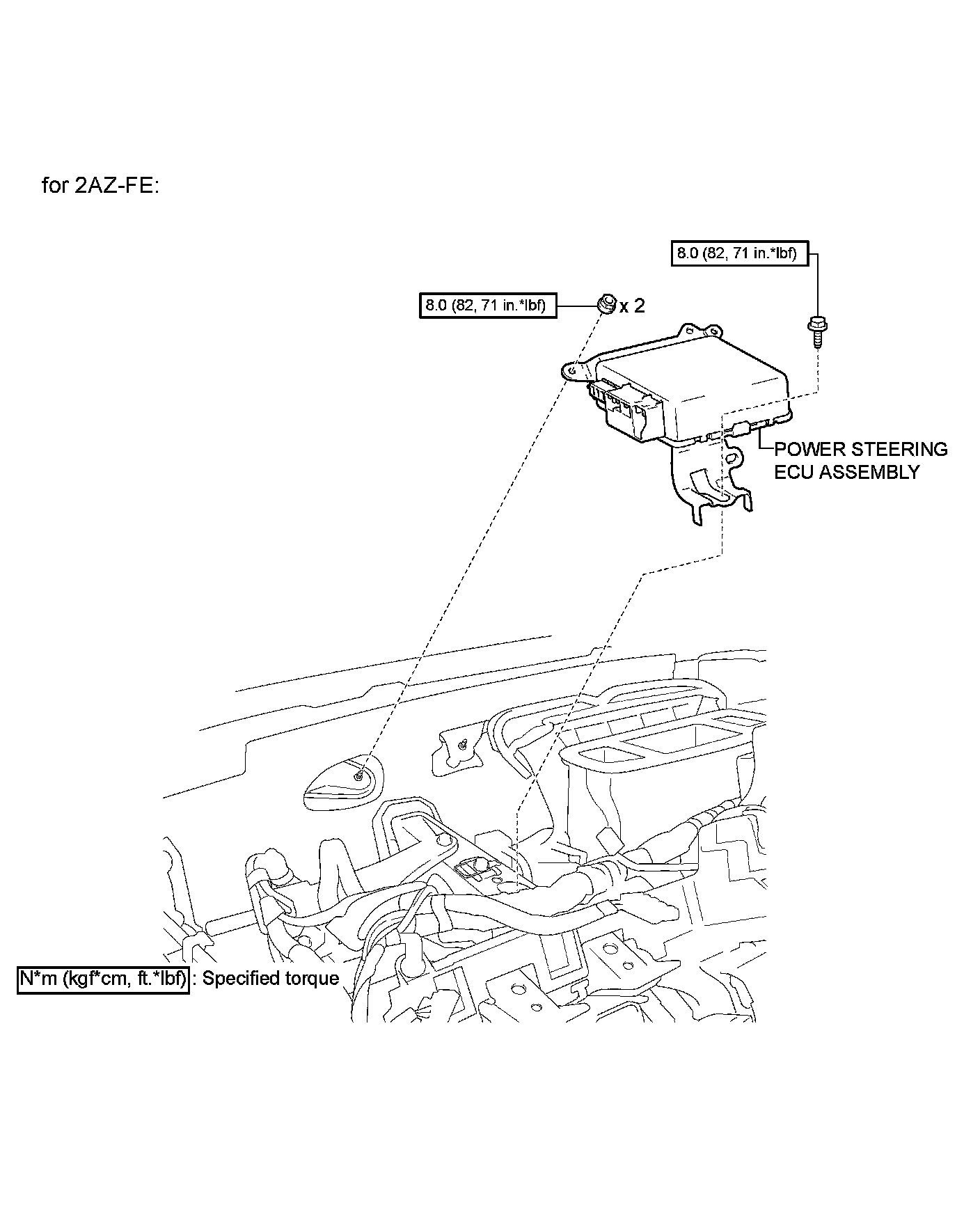

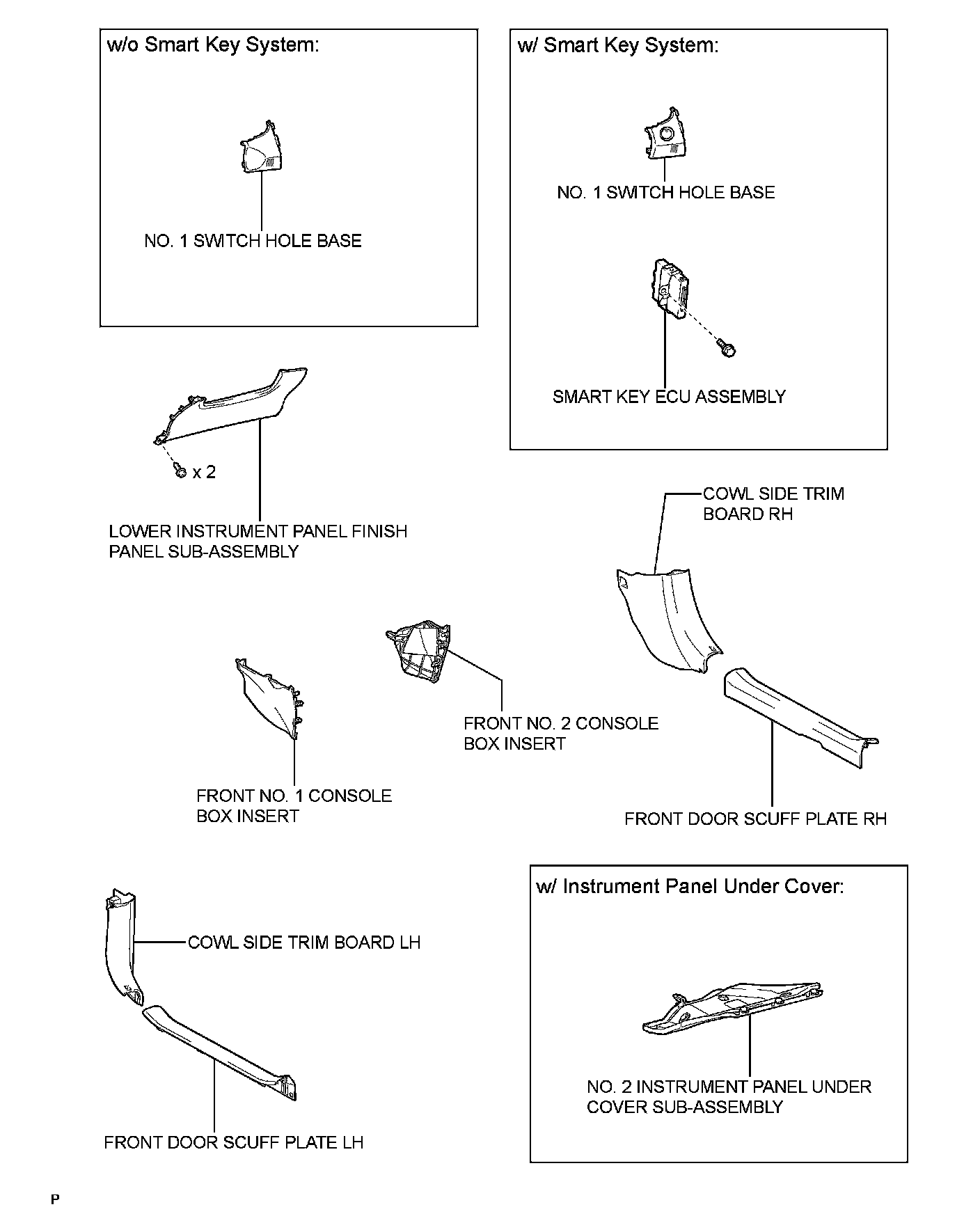

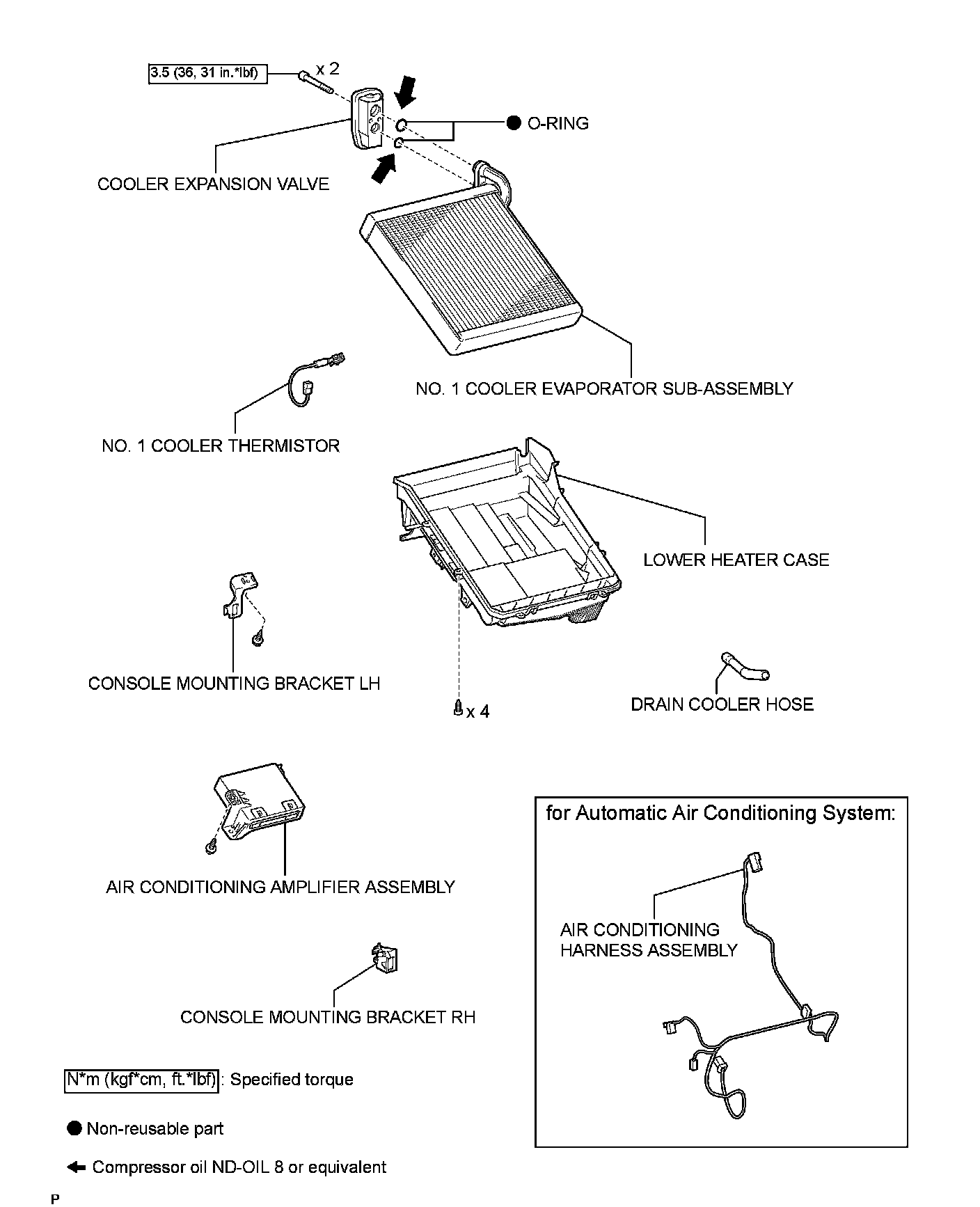

COMPONENTS

ILLUSTRATION
