HEATING / AIR CONDITIONING: SOLAR SENSOR: INSTALLATION

INSTALLATION

1. INSTALL SOLAR SENSOR

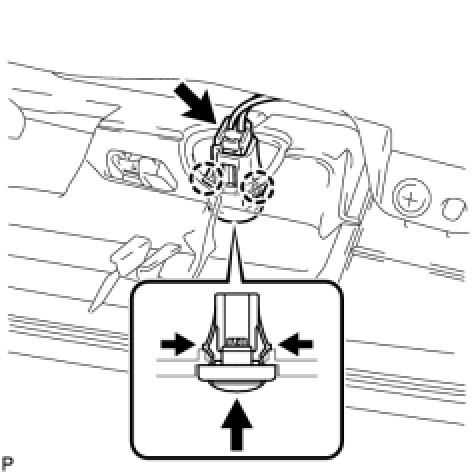

(a) Engage the 2 claws and install the solar sensor.
(b) Connect the connector.
2. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
3. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY Installation
4. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Installation
6. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
7. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY Installation
8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
9. INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag) Installation
10. INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag) Installation
11. INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag) Installation
12. INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag) Installation
13. INSTALL COMBINATION METER ASSEMBLY Installation
14. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
15. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Installation
16. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
17. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
18. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
19. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH Installation
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
21. INSPECT SRS WARNING LIGHT
