POWER OUTLETS (INT): CIGARETTE LIGHTER: INSTALLATION

INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY

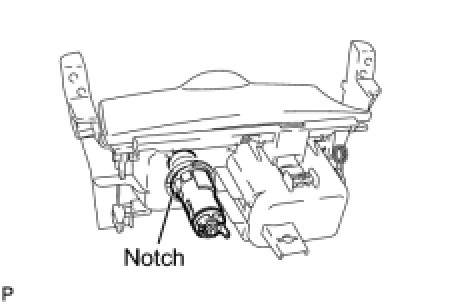

(a) Align the cigarette lighter socket with the notch on the instrument panel box assembly, then install it.

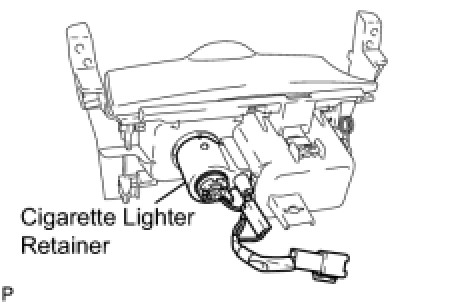

(b) Install the cigarette lighter retainer.

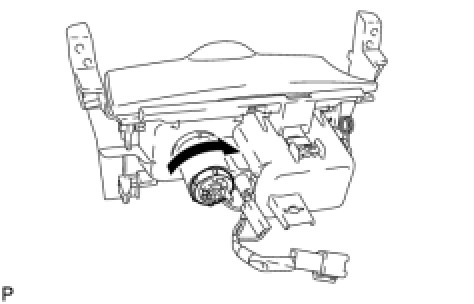

(c) Turn the cigarette lighter nut to install it.

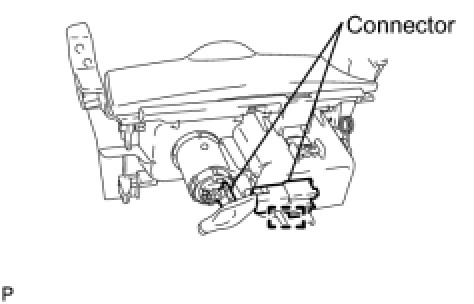

(d) Engage the clamp and connect the connector.
(e) Connect the connector.
2. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation
3. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation
4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH Installation
