2ZR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FUEL SENDER GAUGE ASSEMBLY

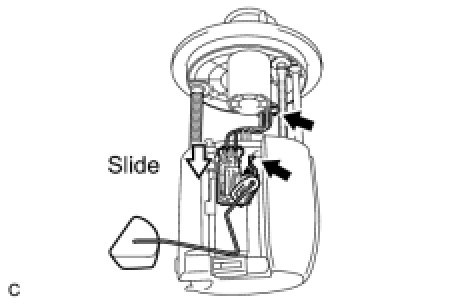

(a) Install the fuel sender gauge assembly by sliding it downward.
NOTE: Do not damage the wire harness.

(b) Connect the connector of the fuel sender gauge assembly.
NOTE: Make sure that the fuel sender gauge arm does not bend.

2. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
(a) Install the fuel suction tube assembly with pump and gauge Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. INSPECT FOR FUEL LEAK Testing and Inspection
