Installation

METER / GAUGE / DISPLAY: COMBINATION METER: INSTALLATION

INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

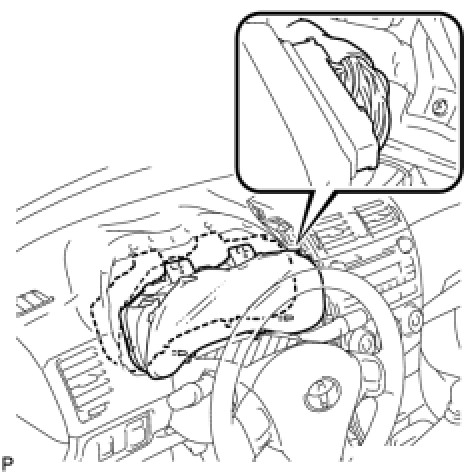

(a) Connect the connector and temporarily install the combination meter assembly.
NOTE: When installing the combination meter assembly, do not damage the upper instrument panel sub-assembly or combination meter assembly.

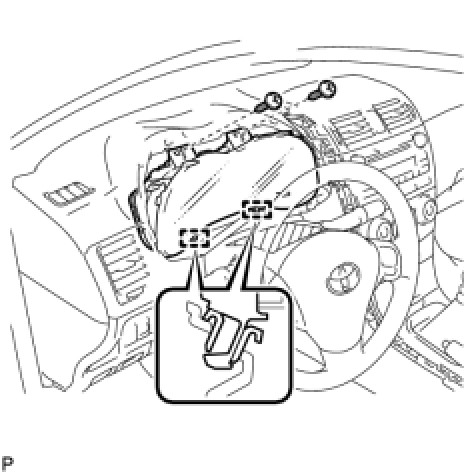

(b) Engage the 2 guides.
NOTICE:
- When installing the combination meter assembly, be careful not to break the guide.
- When installing the combination meter assembly, insert the guides securely into the holes on the upper instrument panel sub-assembly.

(c) Install the combination meter assembly with the 2 screws.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

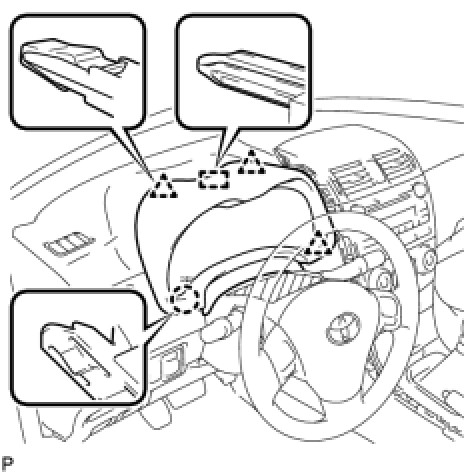

(a) Engage the guide, claw and 3 clips, and install the instrument cluster finish panel assembly.
(b) Remove the applied protective tape on the steering column cover.
3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
