High Mounted Stop Light Assembly (w/o Rear Spoiler)

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY (w/o Rear Spoiler): INSPECTION

INSPECTION

1. INSPECT HIGH MOUNTED STOP LIGHT ASSEMBLY

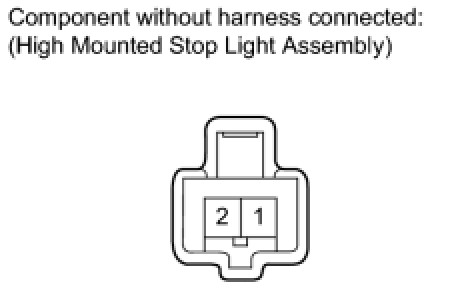

(a) Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.
(b) Check that the high mounted stop light comes on.
OK:
The light comes on.
If the result is not as specified, replace the light assembly.
