Component Tests and General Diagnostics

LIGHTING (INT): PERSONAL LIGHT: INSPECTION

INSPECTION

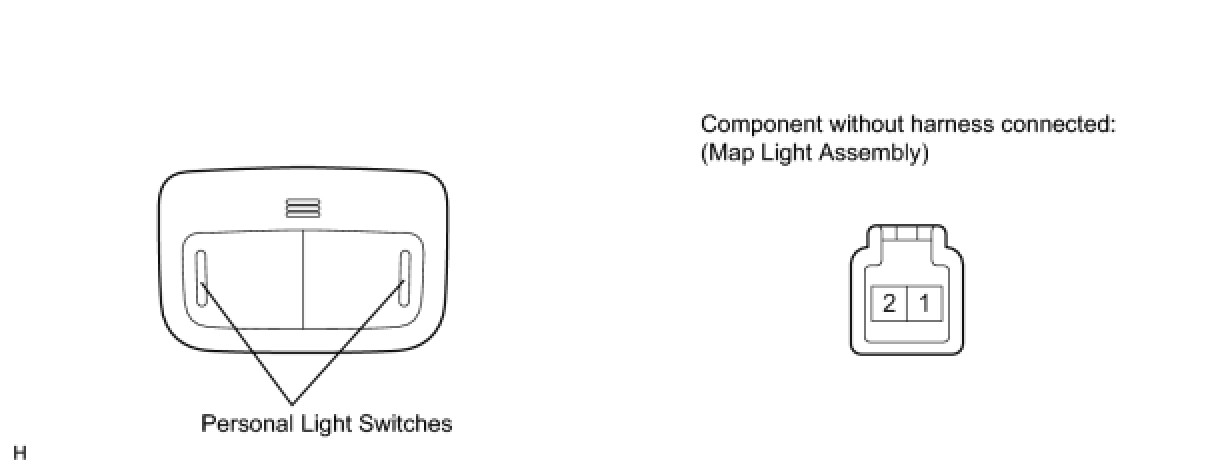

1. INSPECT MAP LIGHT ASSEMBLY (w/o Sliding Roof)





(a) Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.
(b) Check that the personal lights come on.
OK:





If the result is not as specified, replace the bulb or personal light assembly.

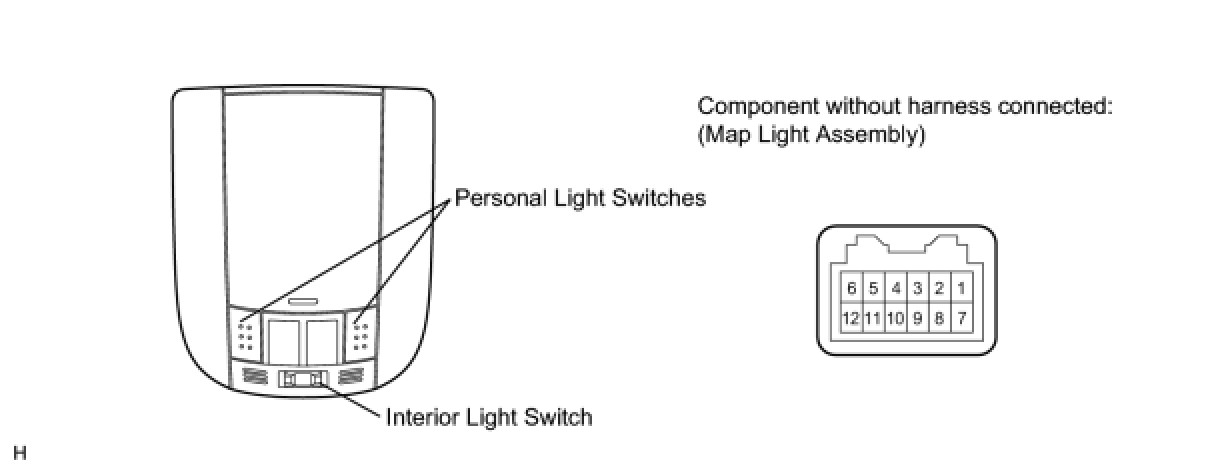

2. INSPECT MAP LIGHT ASSEMBLY (w/ Sliding Roof)

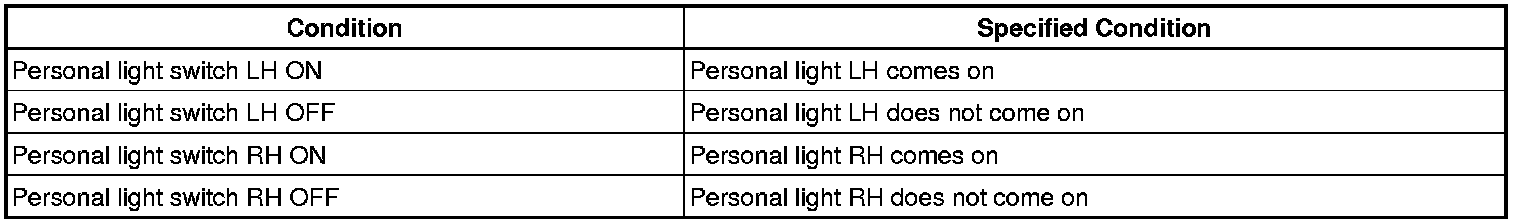

(a) Personal light switch operation




(1) Connect a positive (+) lead from the battery to terminal 6 and a negative (-) lead to terminal 7.
(2) Inspect the personal light operation while the interior light switch is off.
OK:






If the result is not as specified, replace the bulb or map light assembly.

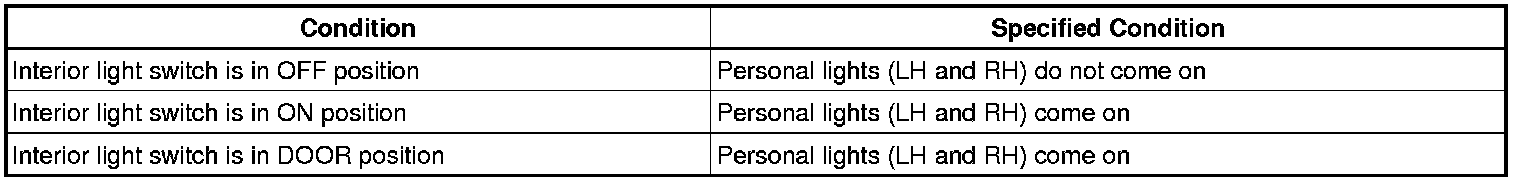

(b) Interior light switch operation
(1) Connect a positive (+) lead from the battery to terminal 6 and a negative (-) lead to both terminals 1 and 7.
(2) Inspect the personal light operation while both of the personal light switches (LH and RH) are off.
OK:






If the result is not as specified, replace the bulb or map light assembly.
