Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM

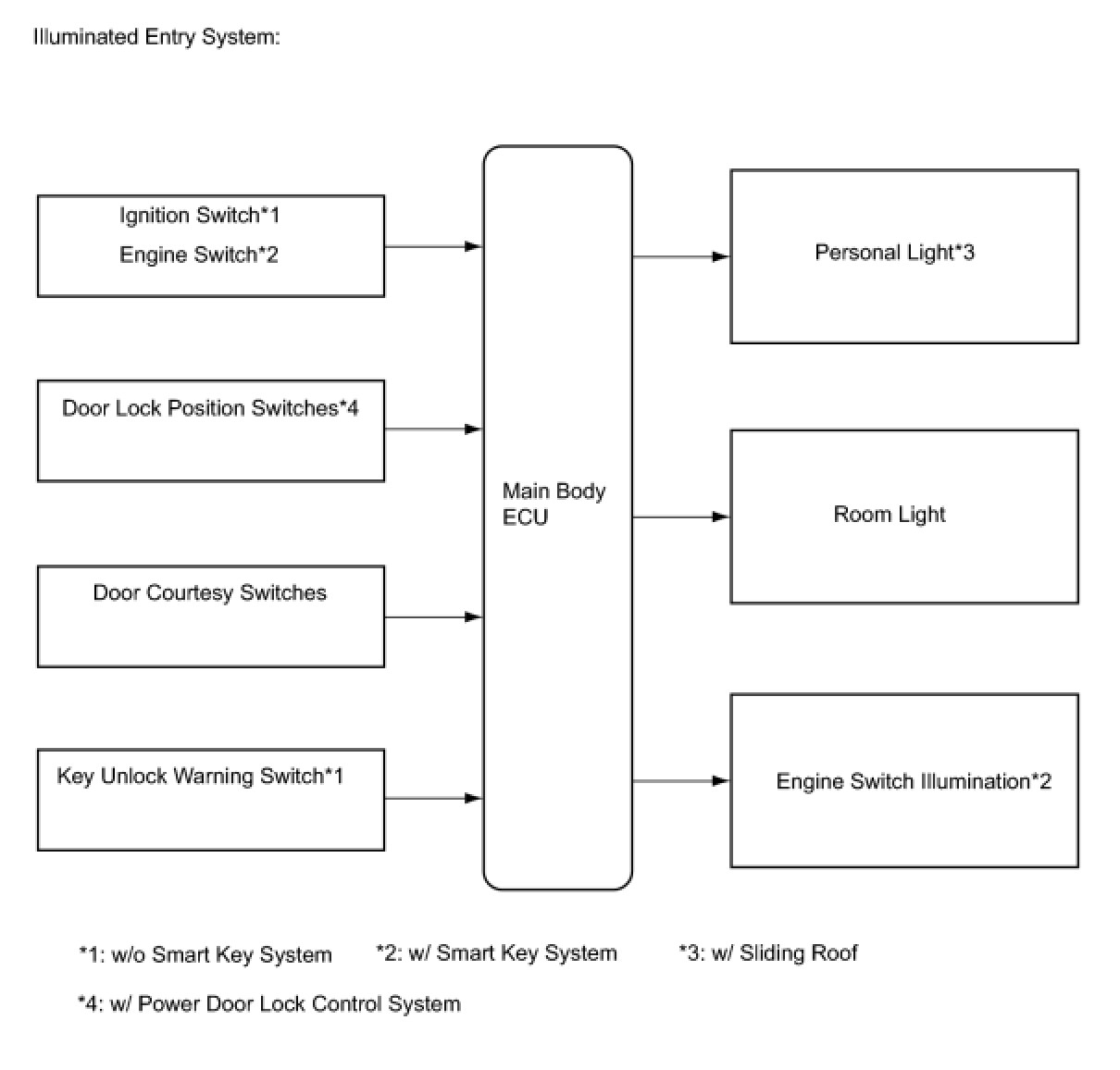

SYSTEM DIAGRAM






LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. ILLUMINATED ENTRY SYSTEM

- The illuminated entry system provides convenience when getting in or out of the vehicle at night.

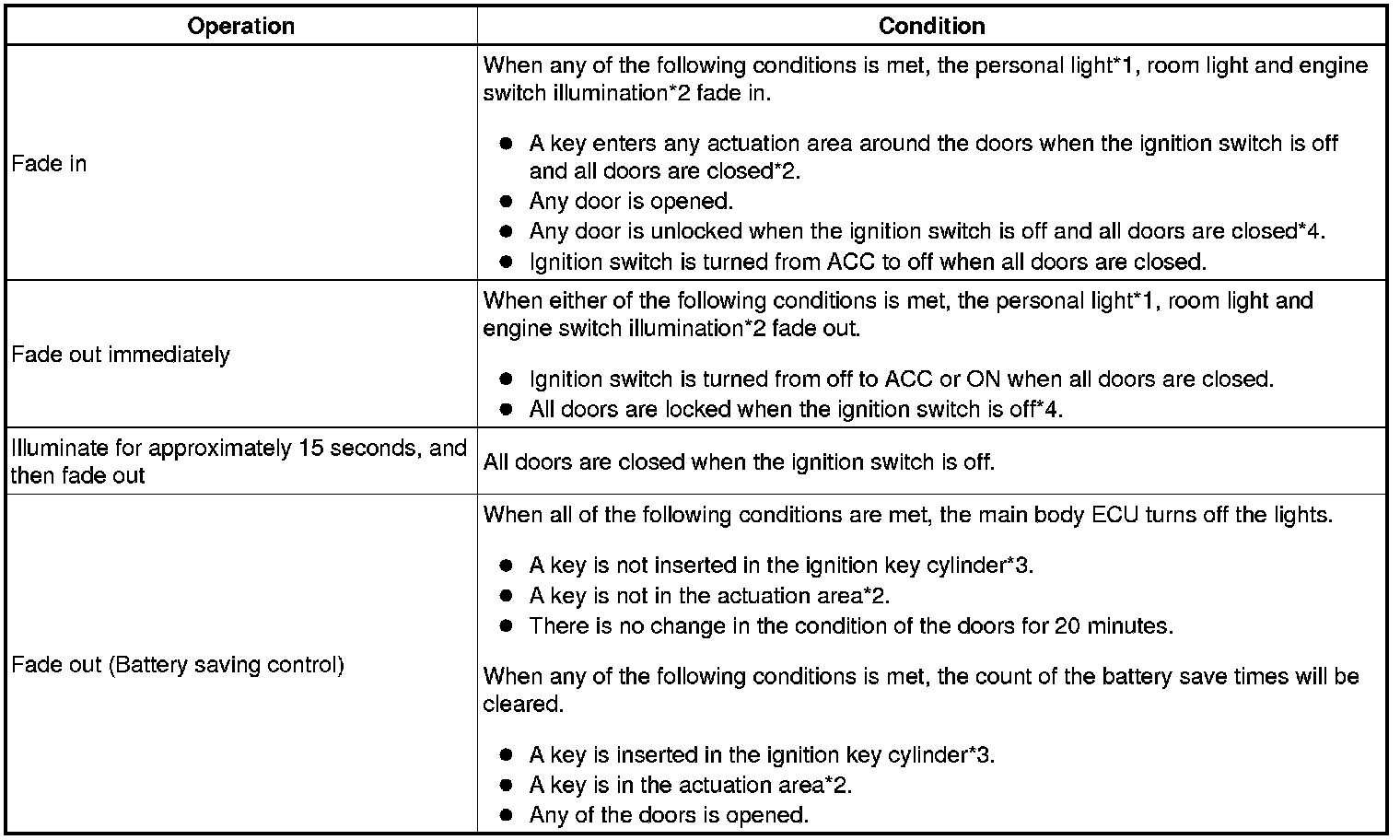

- This function is controlled by the main body ECU. The operation and condition of this control are described below.





HINT:
- *1: w/ Sliding Roof
- *2: w/ Smart Key System
- *3: w/o Smart Key System
- *4: w/ Power Door Lock Control System
