Installation

LIGHTING (EXT): FOG LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY

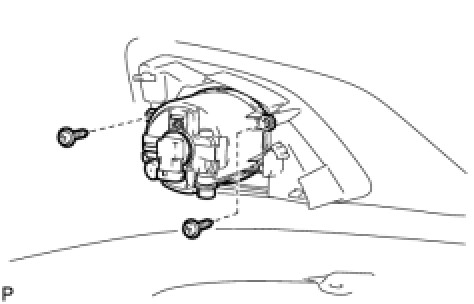

(a) Install the fog light assembly with the 2 screws.
2. INSTALL FRONT BUMPER ASSEMBLY Installation
3. INSTALL NO. 4 ENGINE UNDER COVER Installation
4. INSTALL RADIATOR GRILLE PROTECTOR Installation
5. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments
6. PREPARATION FOR FOG LIGHT AIMING Adjustments
7. FOG LIGHT AIMING INSPECTION Adjustments
8. FOG LIGHT AIMING ADJUSTMENT Adjustments
