Turn Signal and Hazard Warning Light (Except TMC Made)

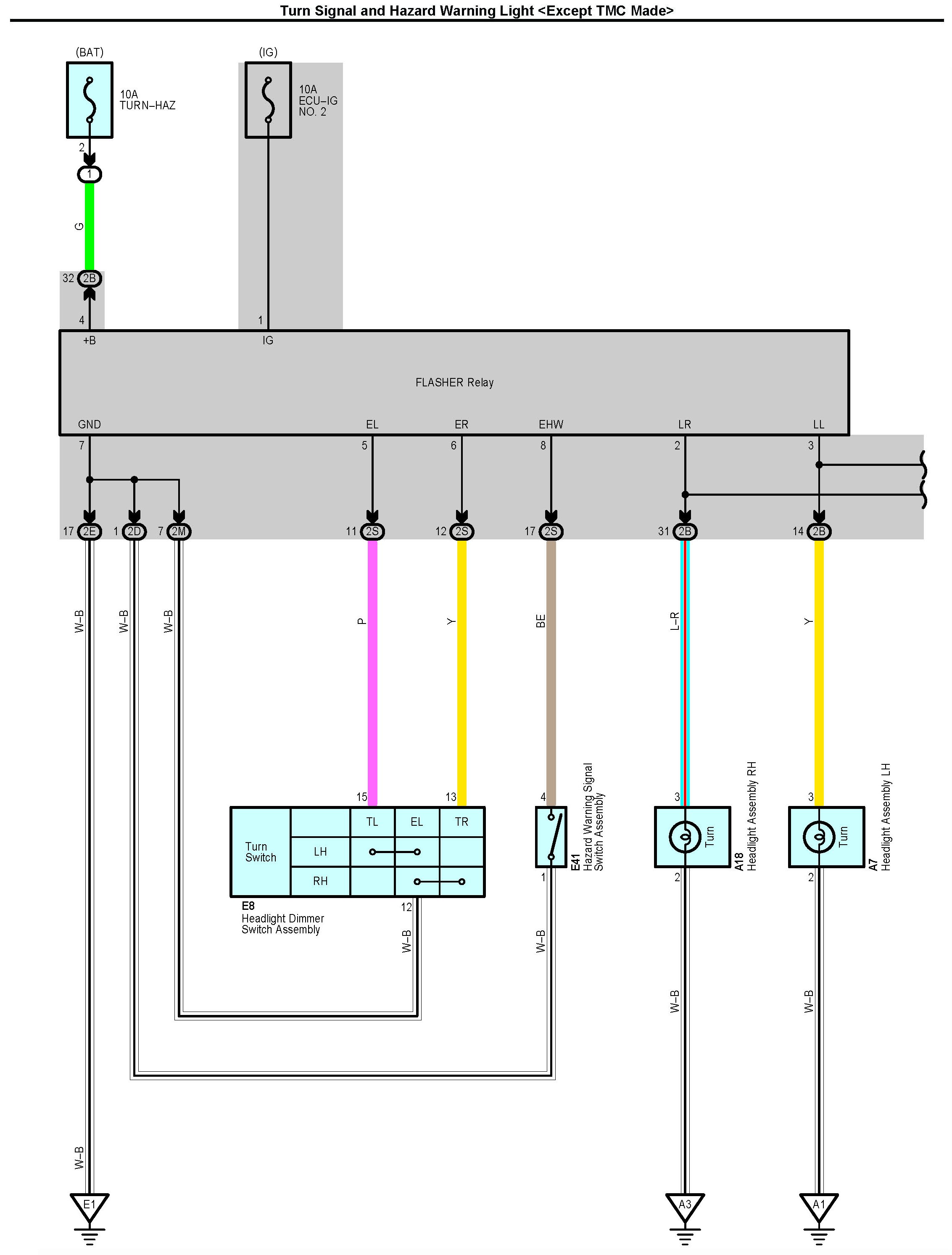

Turn Signal And Hazard Warning Light <Except TMC Made> Part 1:

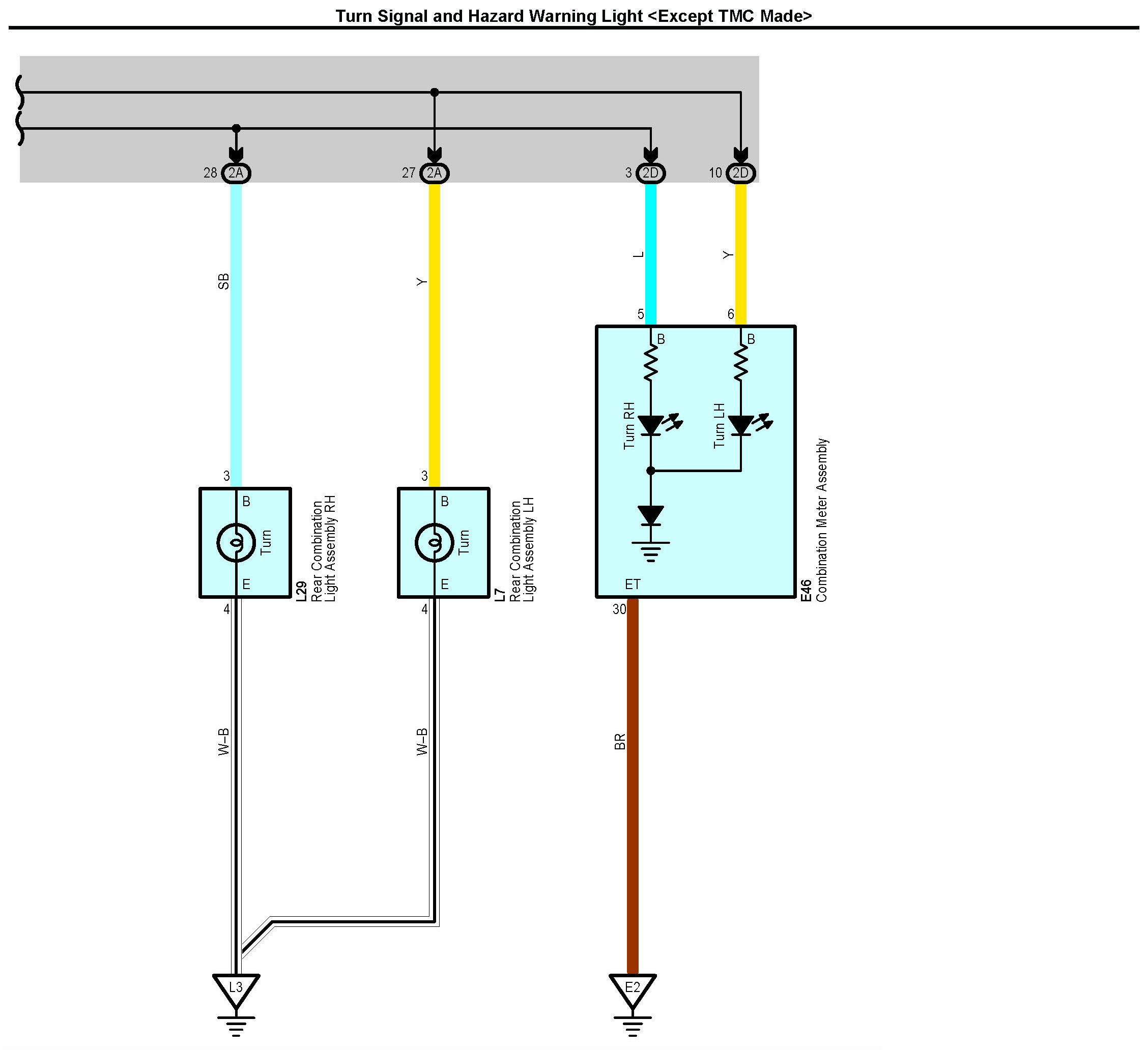

Turn Signal And Hazard Warning Light <Except TMC Made> Part 2:

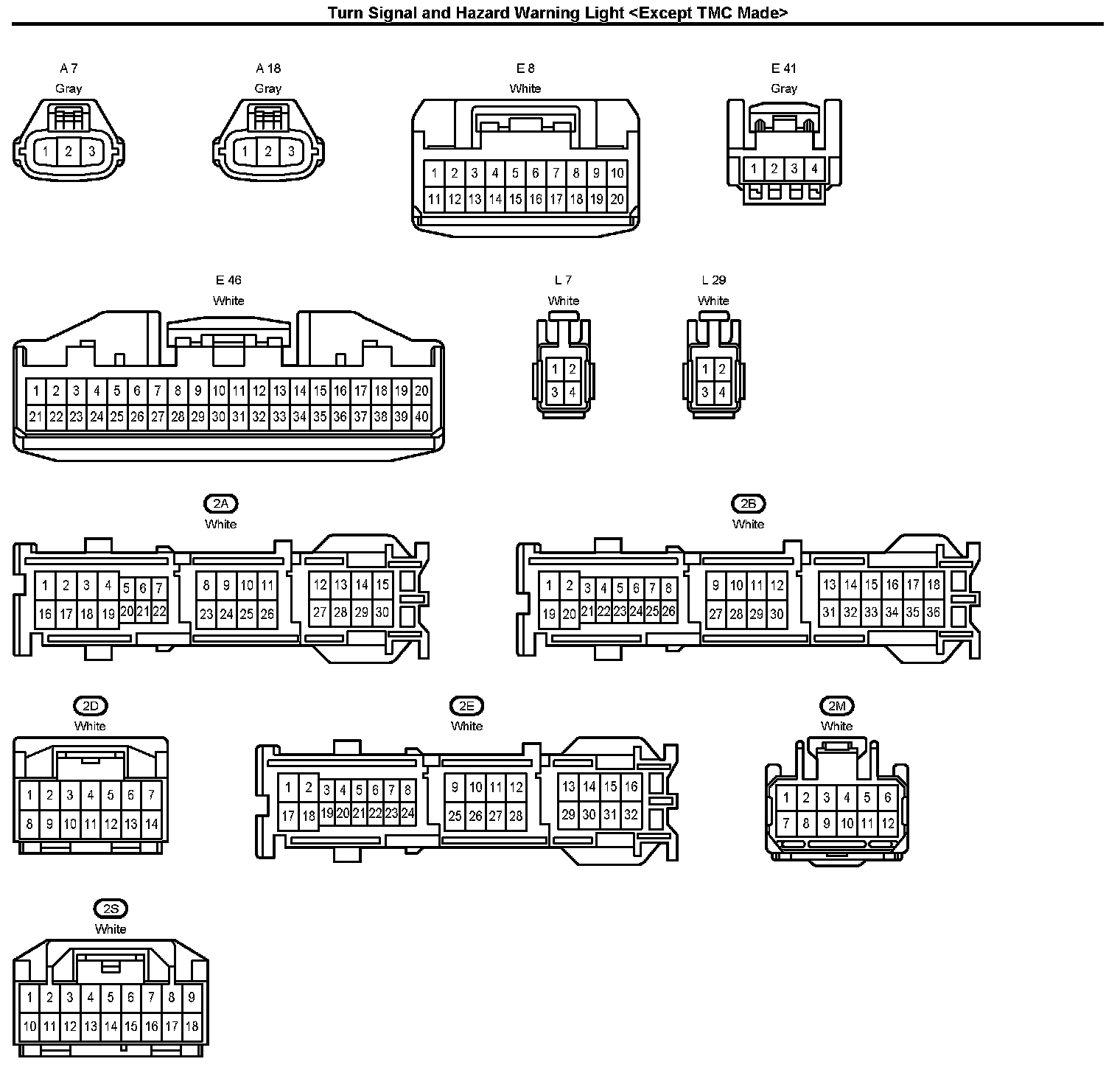

Connectors Part:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
