Removal

HORN: LOW PITCHED HORN: REMOVAL

REMOVAL

1. REMOVE RADIATOR GRILLE PROTECTOR Removal
2. REMOVE NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Removal
3. REMOVE FRONT BUMPER ASSEMBLY Removal

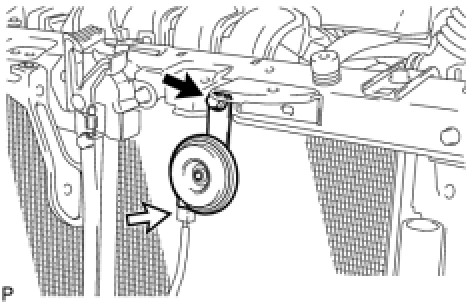

4. REMOVE LOW PITCHED HORN ASSEMBLY





(a) Disconnect the connector.
(b) Remove the bolt and low pitched horn assembly.
