Component Tests and General Diagnostics

HORN: LOW PITCHED HORN: INSPECTION

INSPECTION

1. INSPECT LOW PITCHED HORN ASSEMBLY

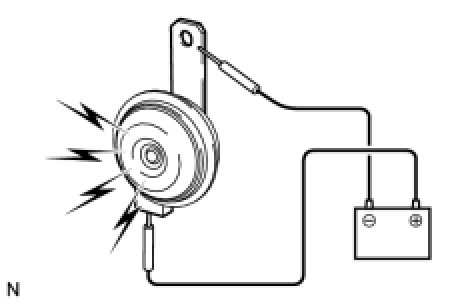

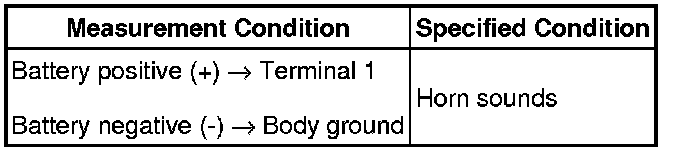

(a) Apply battery voltage and check operation of the horn, as shown in the table below.
Standard:





If the result is not as specified, replace the low pitched horn assembly.
