Installation

LIGHTING (EXT): LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT BULB
(a) Install the license plate light bulb to the license plate light socket.

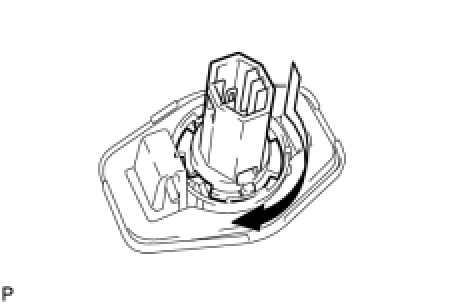

(b) Turn the license plate light bulb and the license plate light socket in the direction indicated by the arrow and install them as a unit.
2. INSTALL LICENSE PLATE LIGHT ASSEMBLY





(a) Engage the 2 claws to install the license plate light assembly.
(b) Connect the connector.
3. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
4. INSTALL LUGGAGE COMPARTMENT DOOR COVER
