Toyota
>>
2009
>>
Corolla L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Interior Lighting System
Interior Lighting System

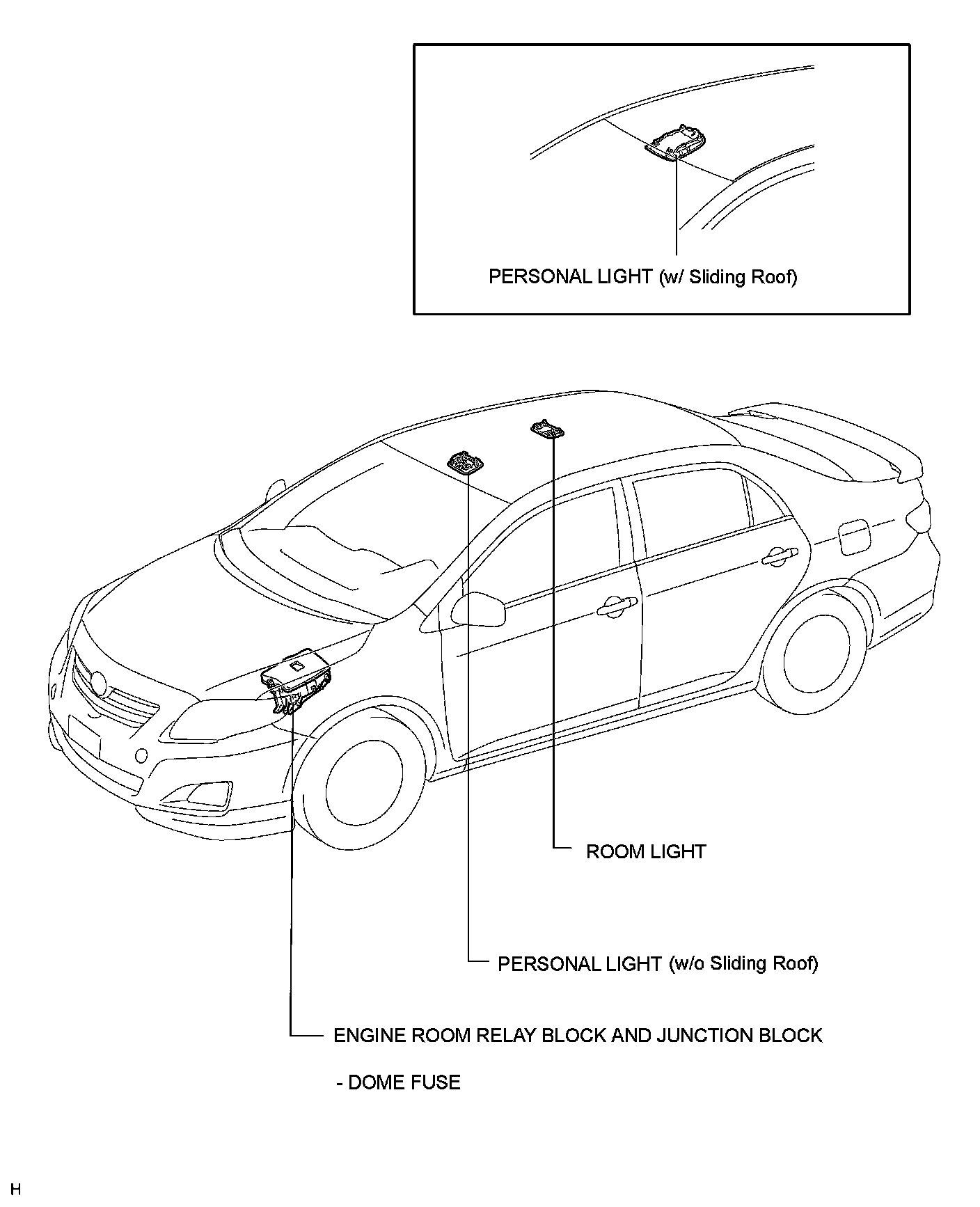

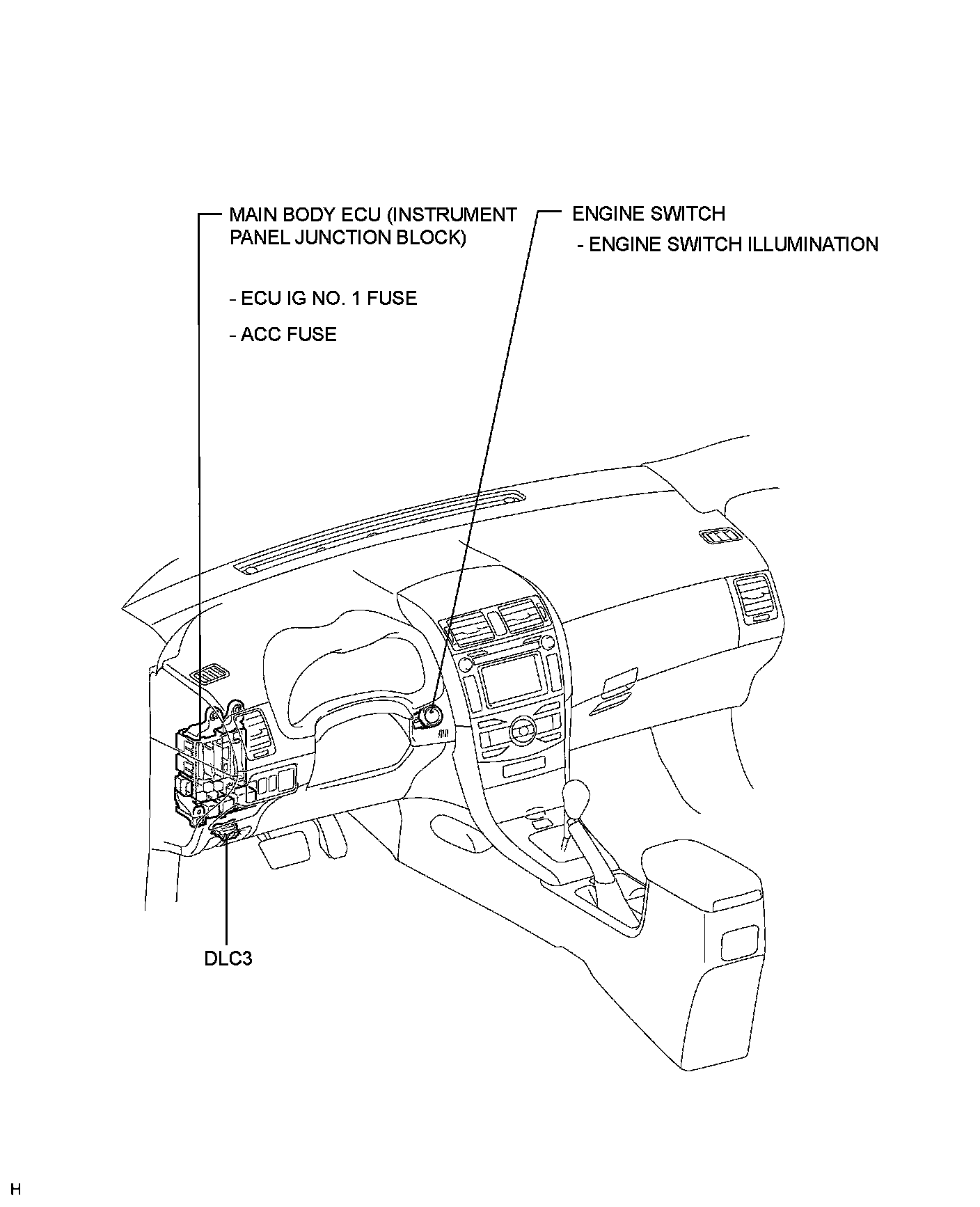

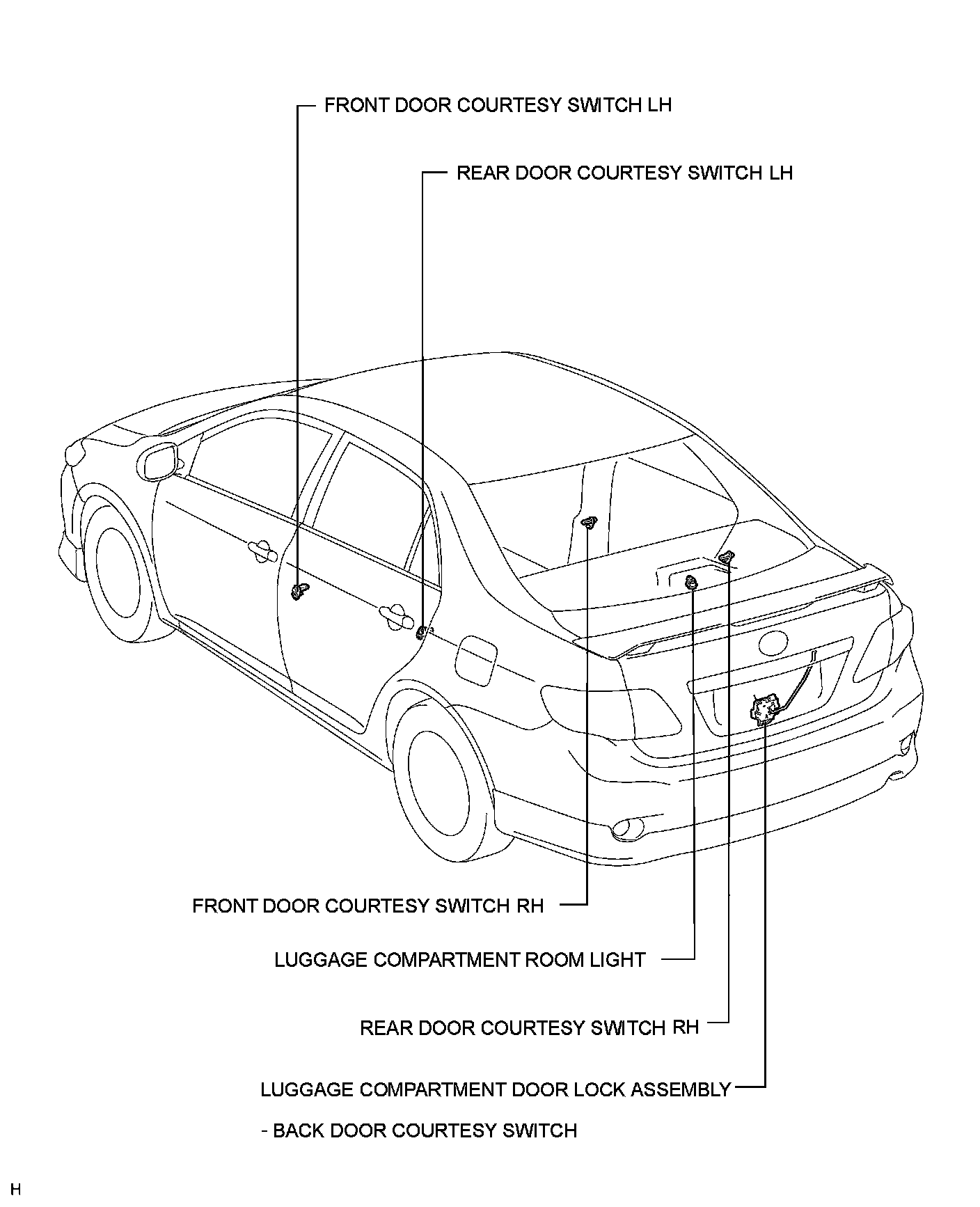

LIGHTING (INT): LIGHTING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
