Component Tests and General Diagnostics

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT: INSPECTION

INSPECTION

1. INSPECT LUGGAGE COMPARTMENT LIGHT ASSEMBLY

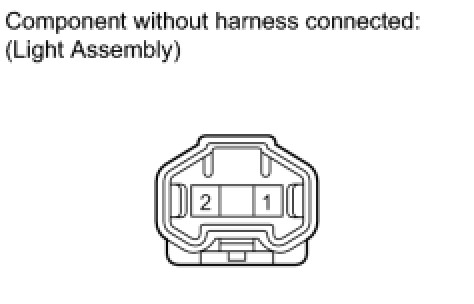

(a) Connect a (+) lead from the battery to terminal 1 and a (-) lead to terminal 2.
(b) Check that the light comes on.
OK:
The light comes on.
If the result is not as specified, replace the bulb or light assembly.
