LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

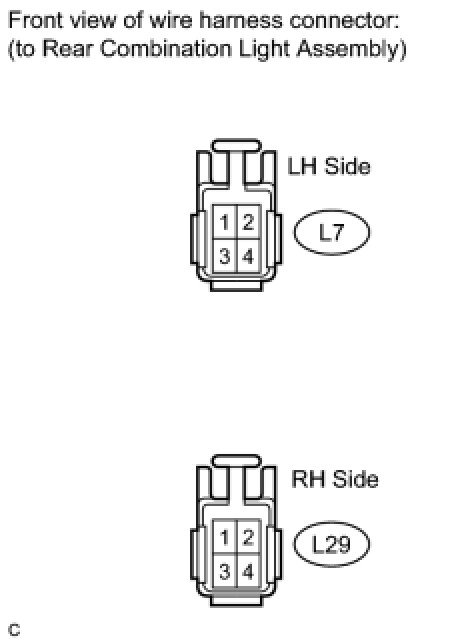

(a) Disconnect the connector from the rear combination light assembly.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

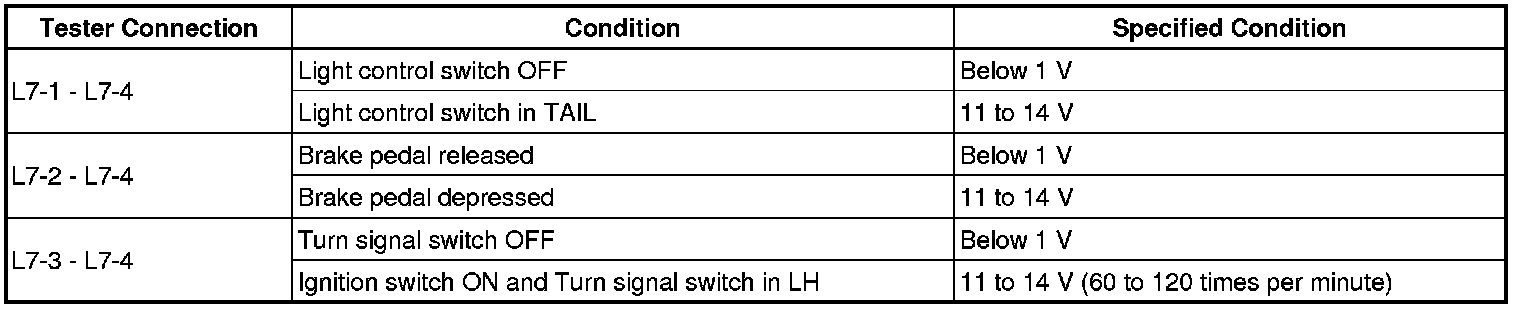

LH Side

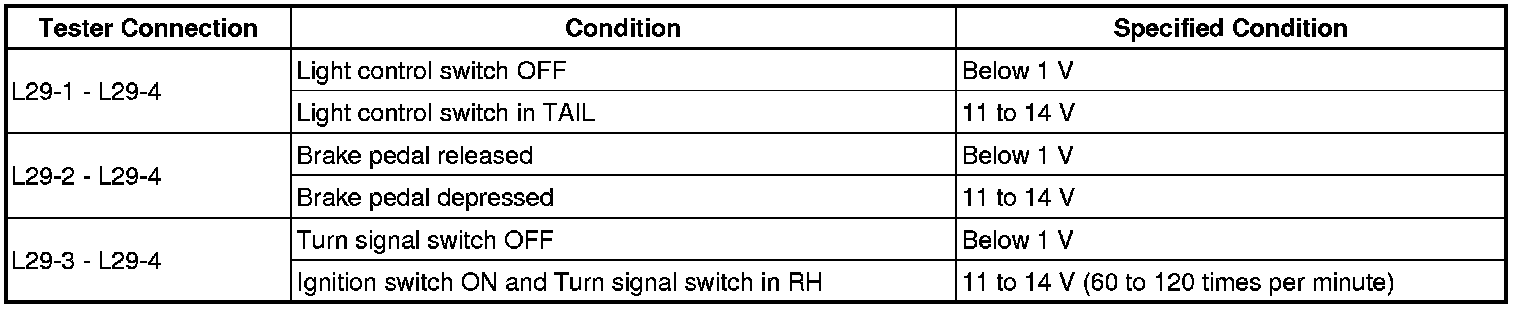

RH Side






If the result is not as specified, there is a malfunction on the wire harness side.
