Wire and Wire In Instrument Panel (Except TMC Made)
Wire and Wire In Instrument Panel (Except TMC Made)

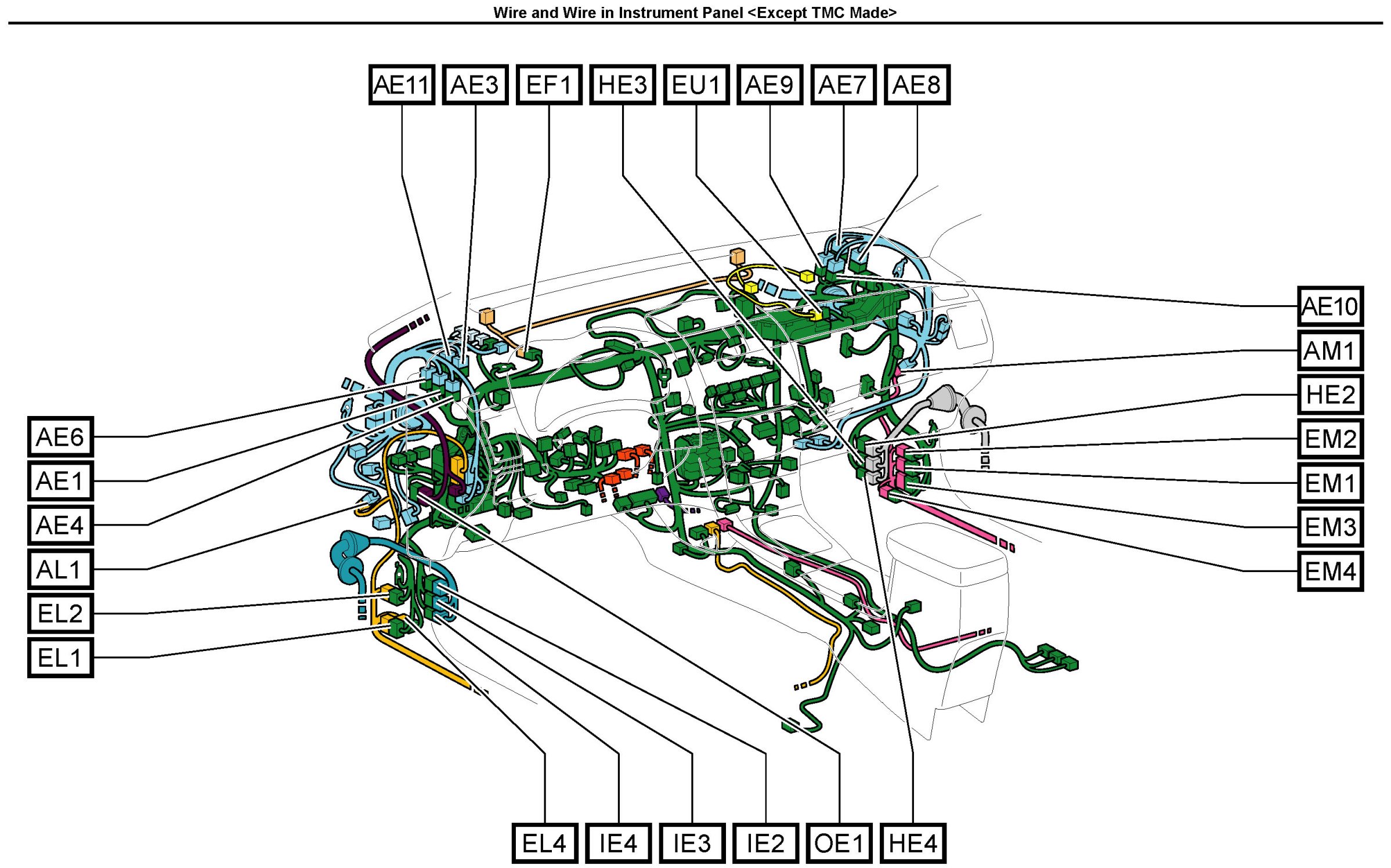

AE1-OE1:

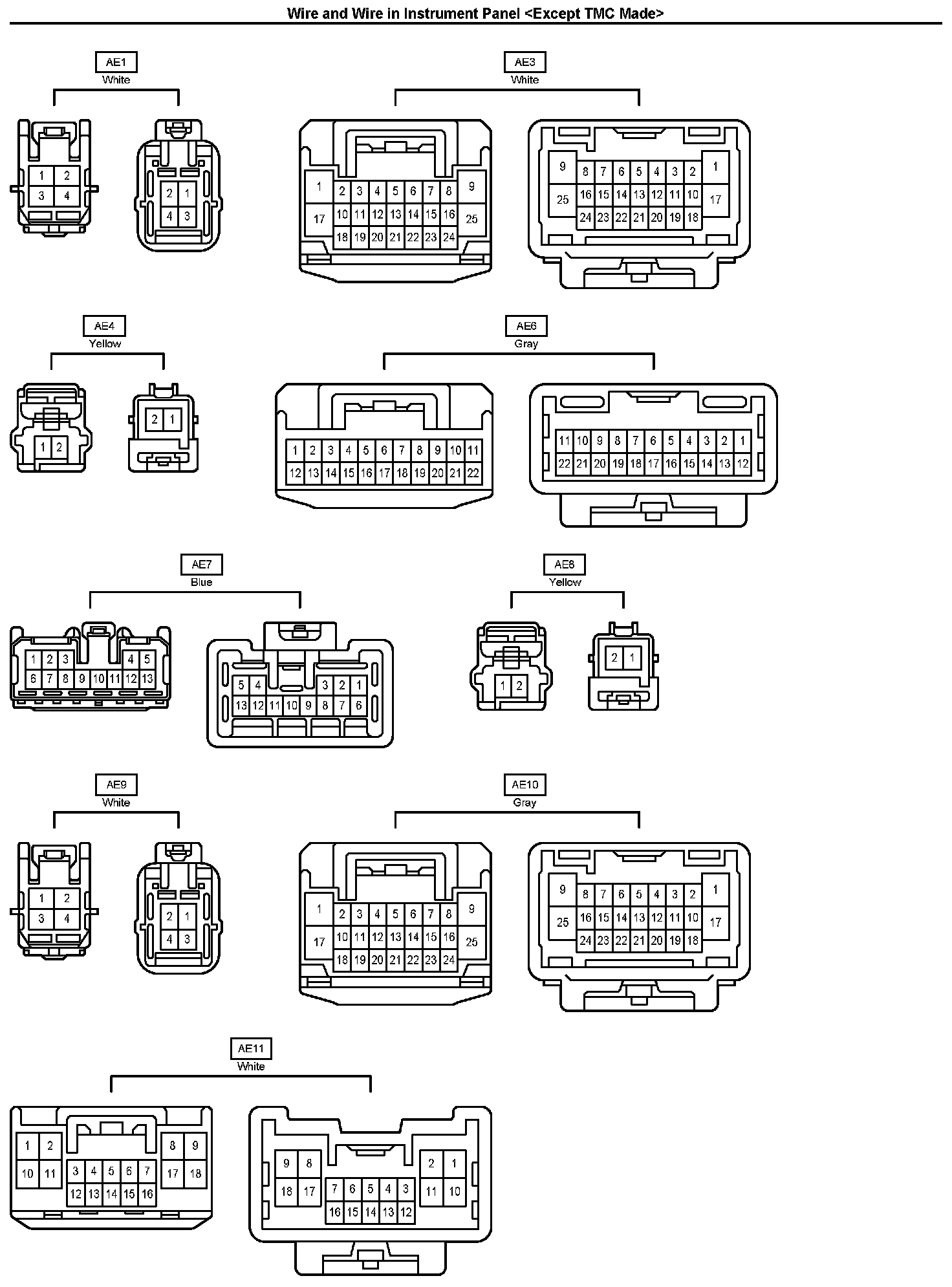

AE1-AE11:

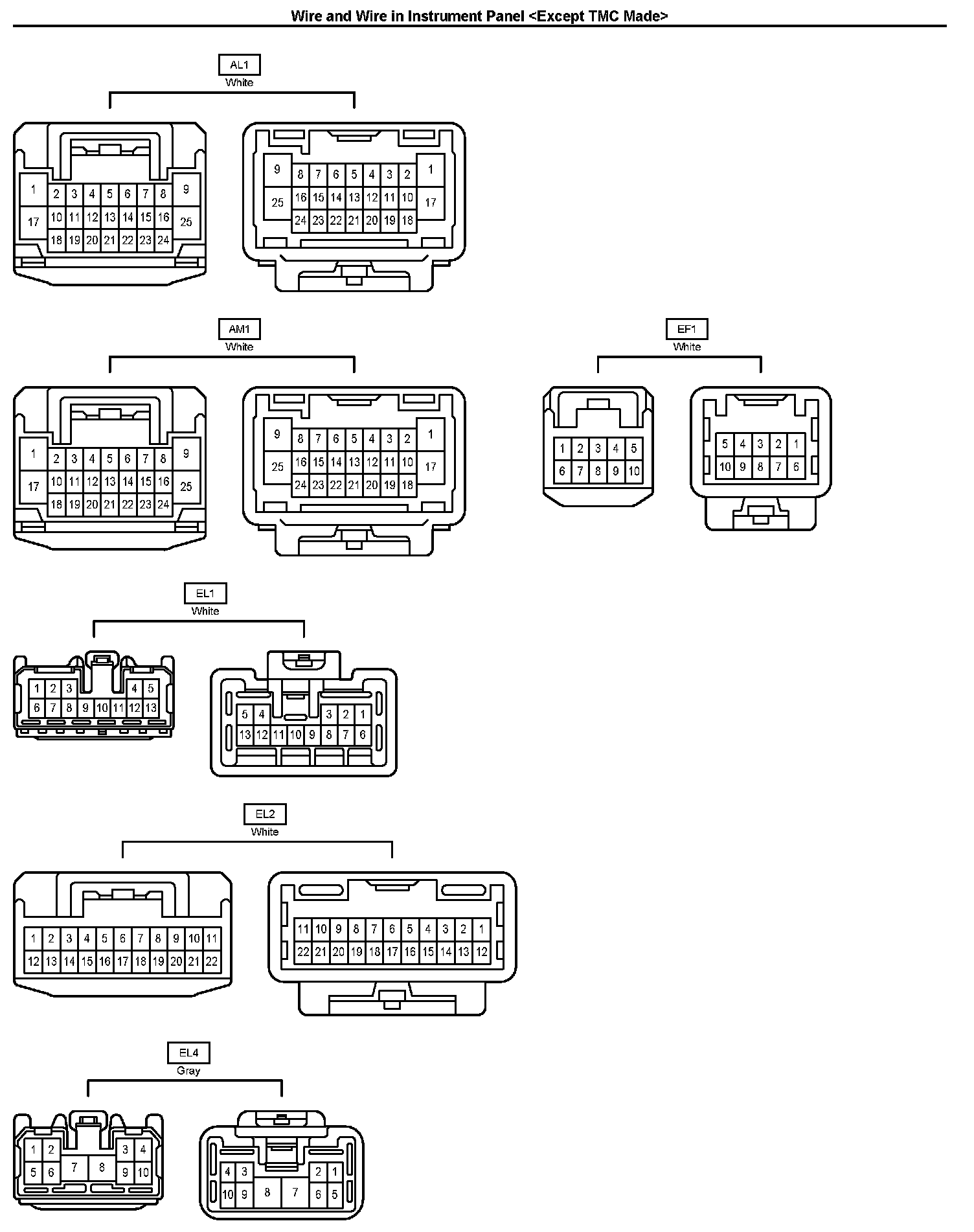

AL1-EL4:

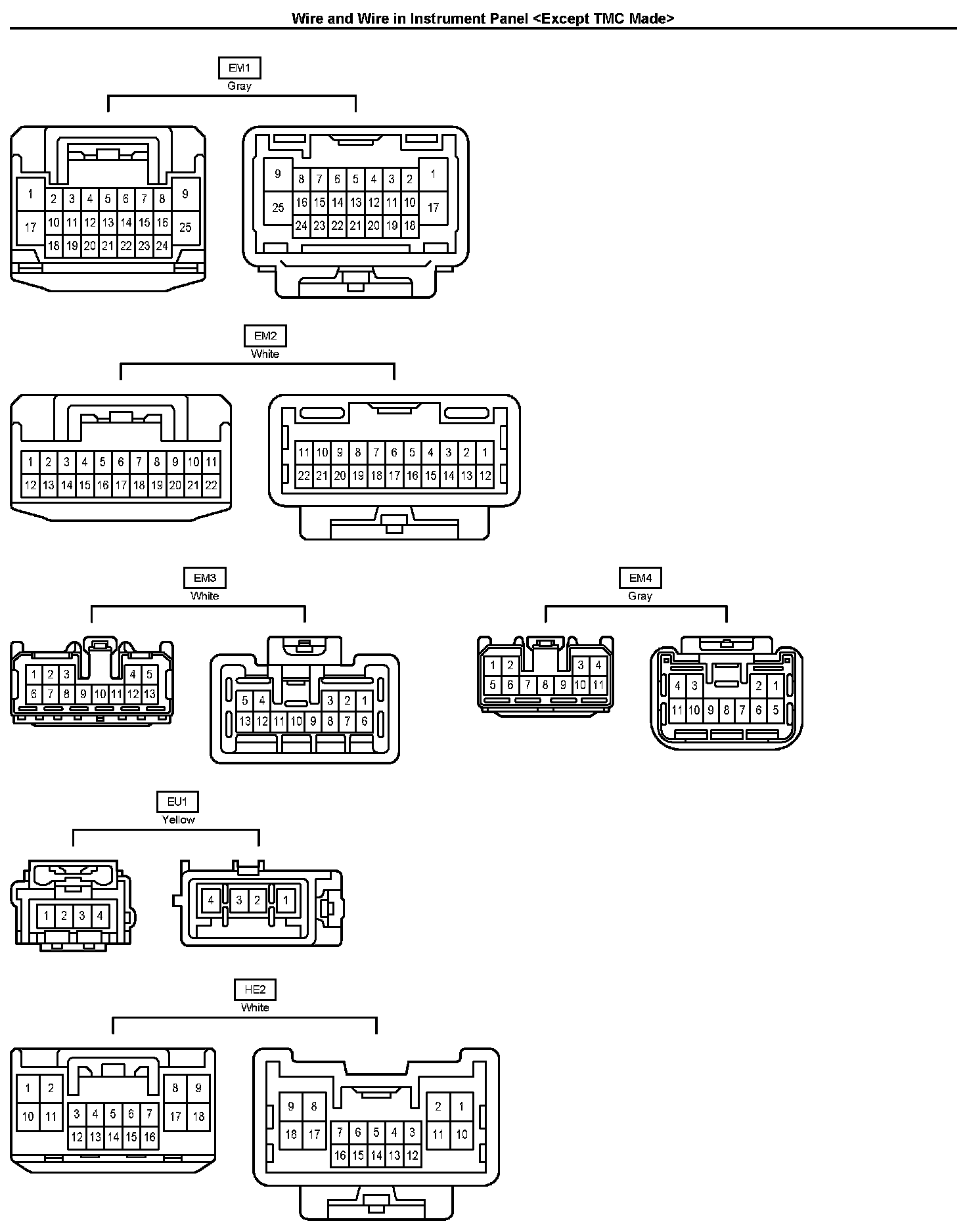

EM1-HE2:

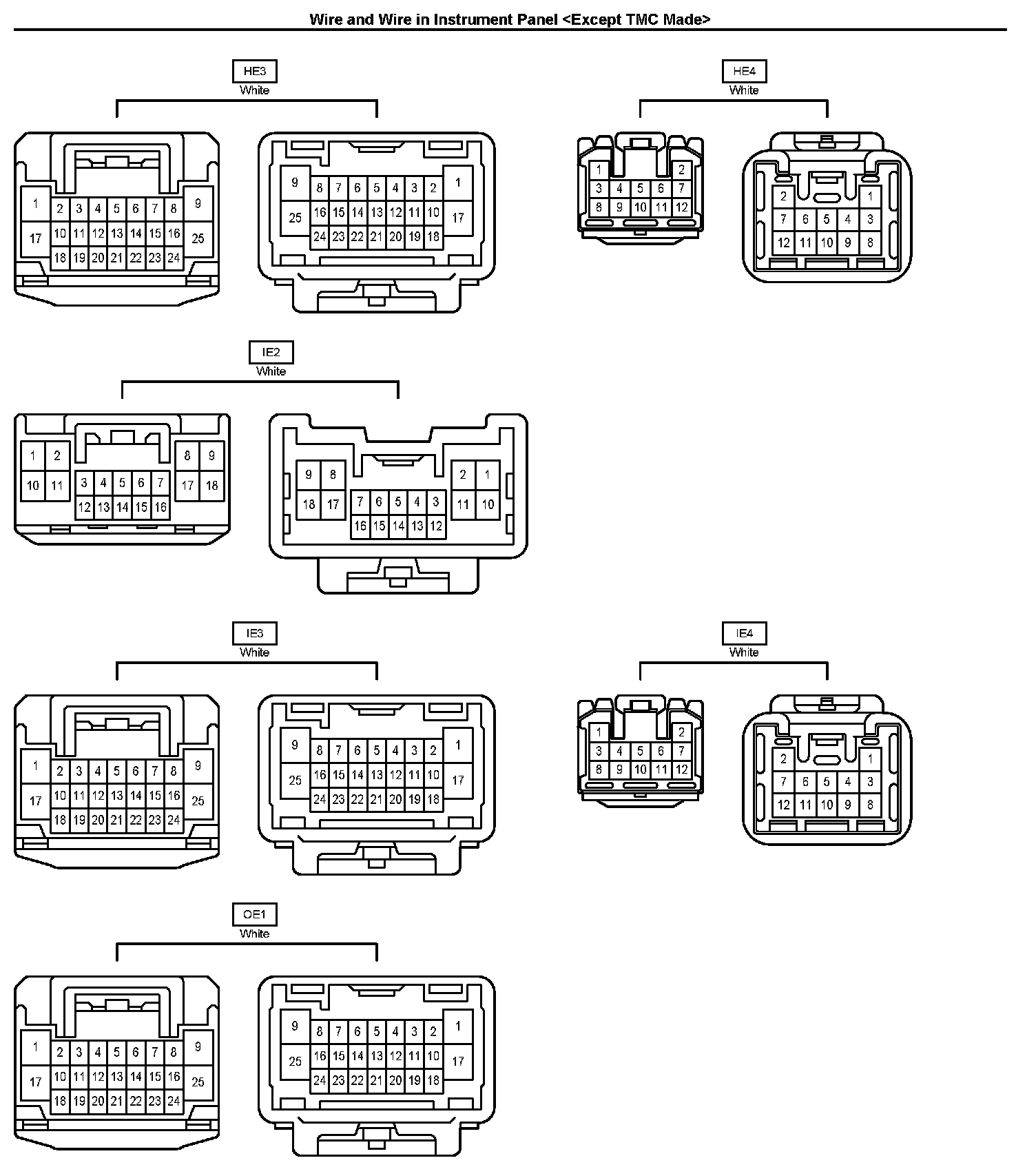

HE3-OE1:
