Wire and Wire In Instrument Panel (TMC Made)
Wire and Wire In Instrument Panel (TMC Made)

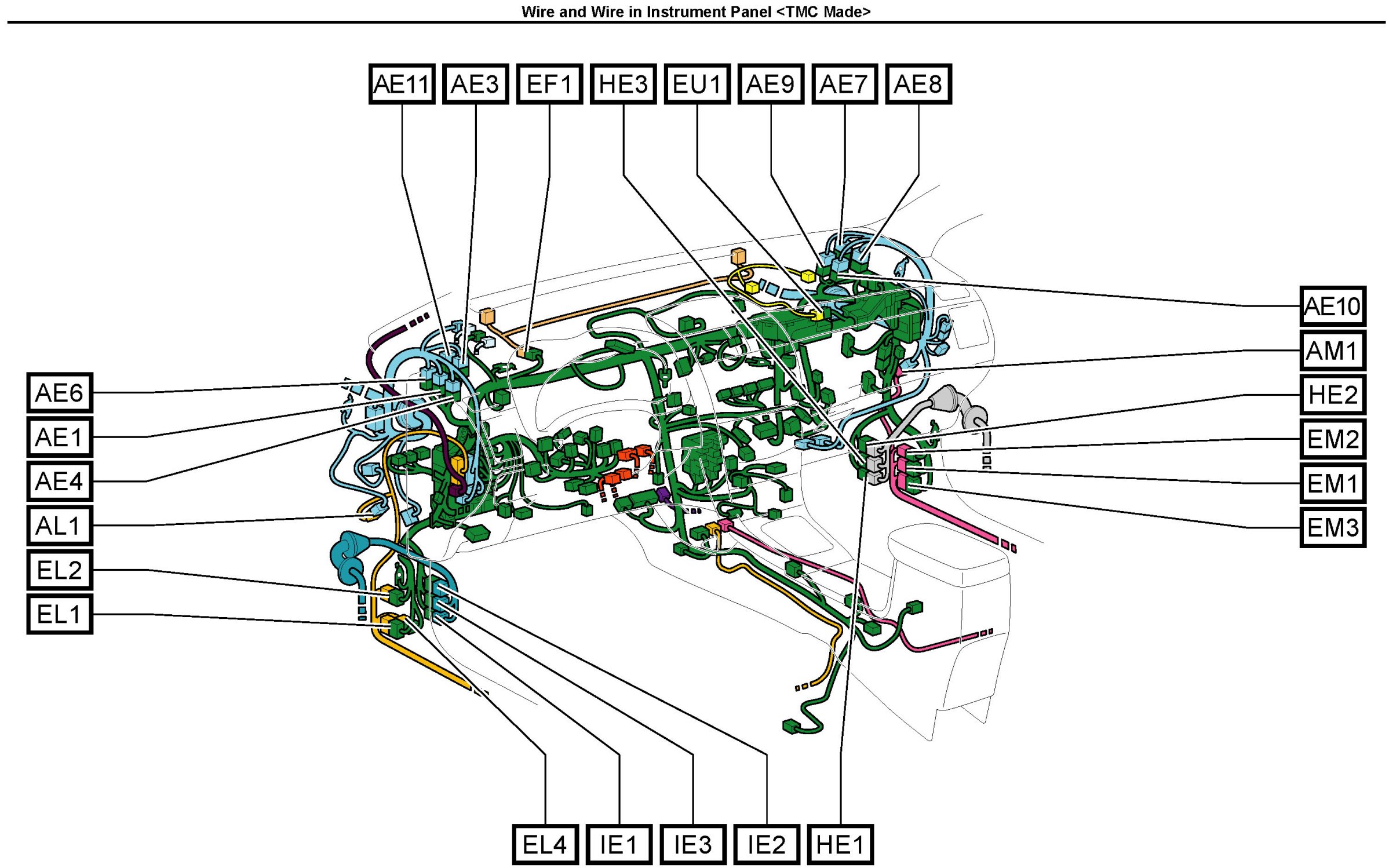

AE1-HE3:

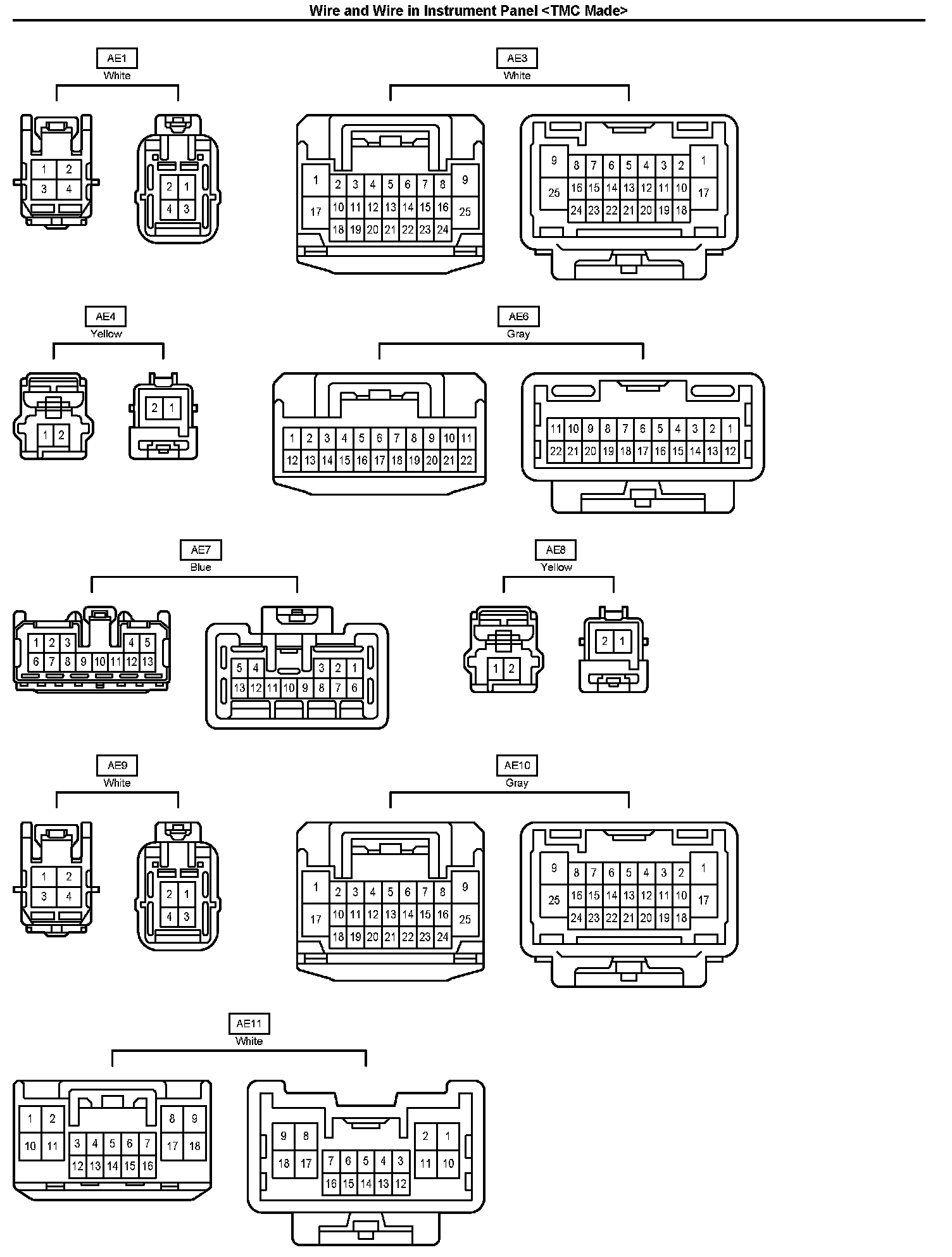

AE1-AE11:

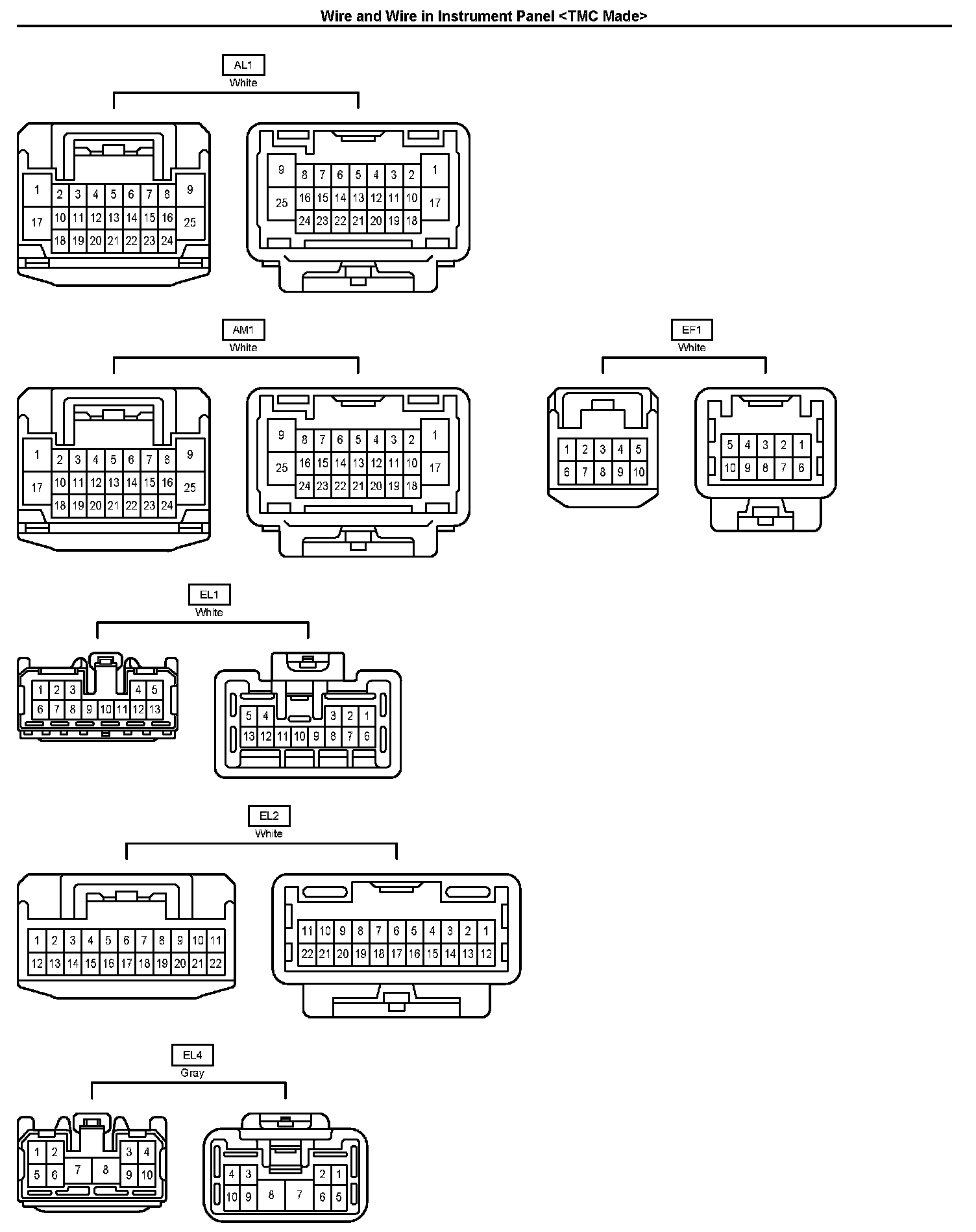

AL1-EL4:

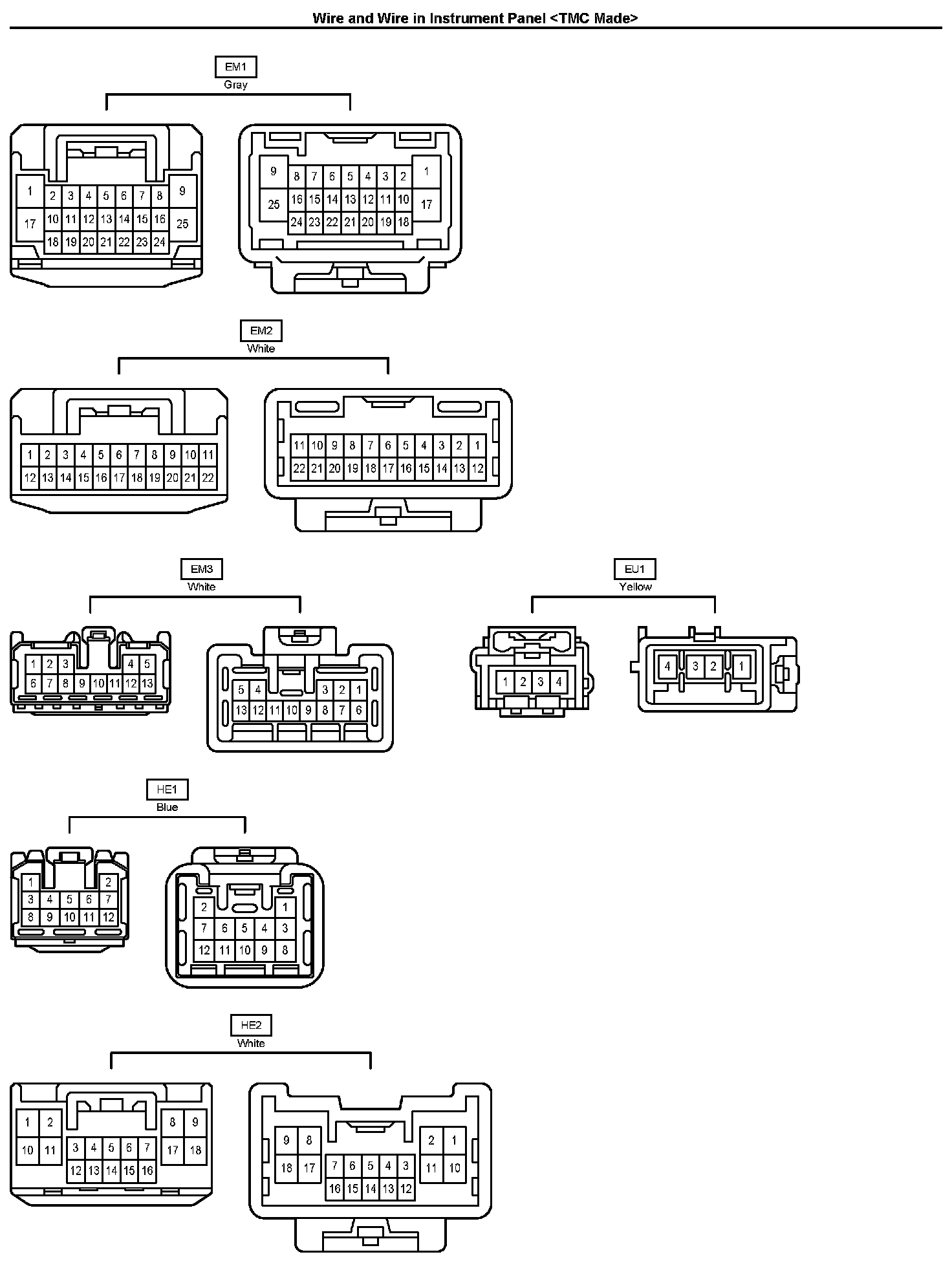

EM1-HE2:

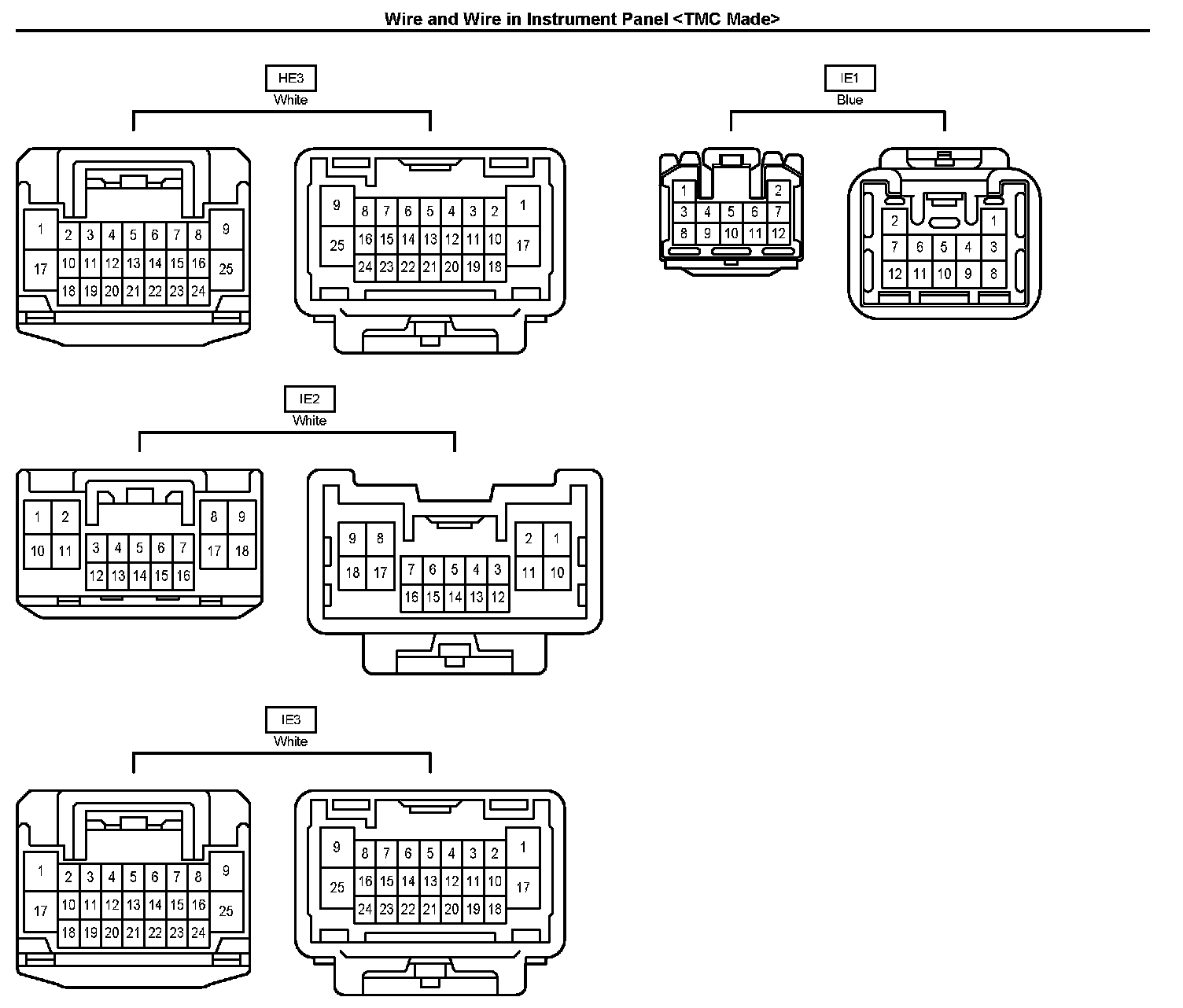

HE3-IE3:
