Installation

POWER OUTLETS (INT): CENTER POWER OUTLET SOCKET: INSTALLATION

INSTALLATION

1. INSTALL CENTER POWER OUTLET SOCKET COVER

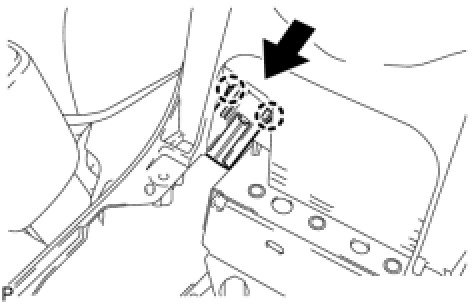

(a) Engage the 2 claws and install the center power outlet socket cover.
2. INSTALL CENTER POWER OUTLET SOCKET ASSEMBLY

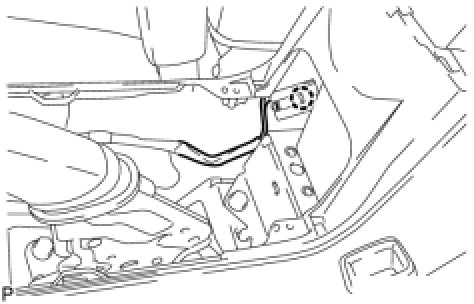

(a) Engage the claw and install the center power outlet socket assembly.

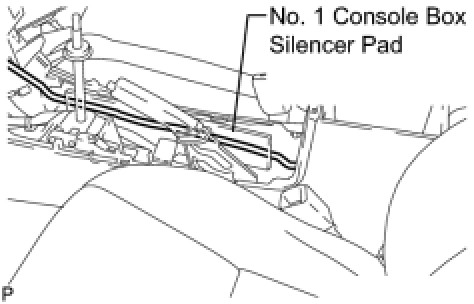

(b) Attach the No. 1 console box silencer pad to secure the wire harness.

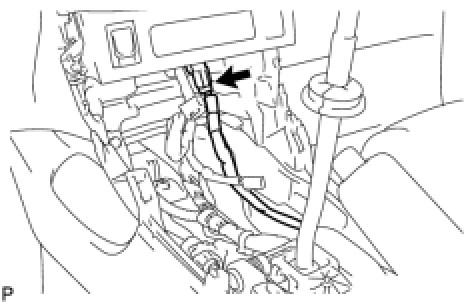

(c) Connect the connector.
3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
4. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation
5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
7. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
10. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH Installation
