Computers and Control Systems: Description and Operation

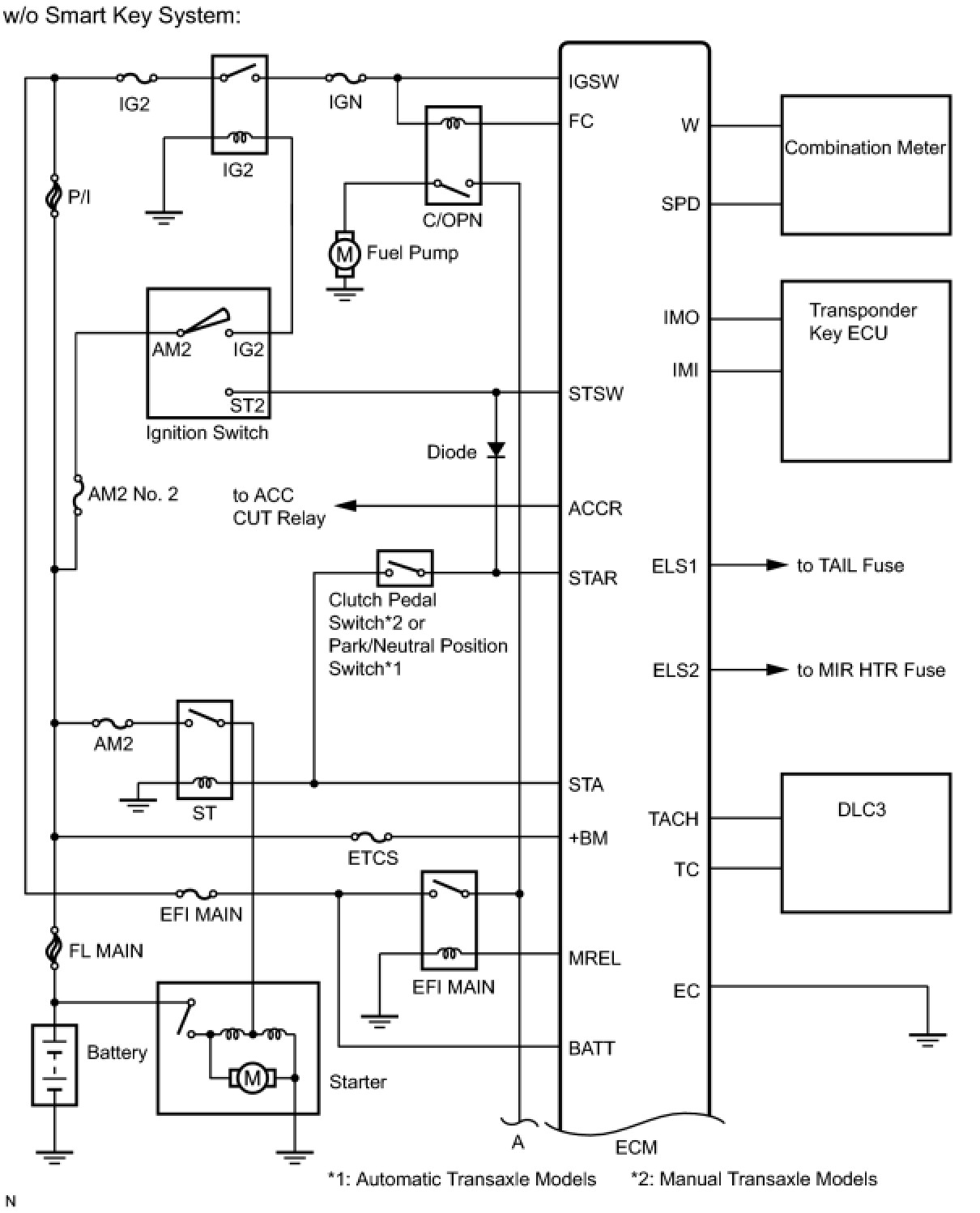

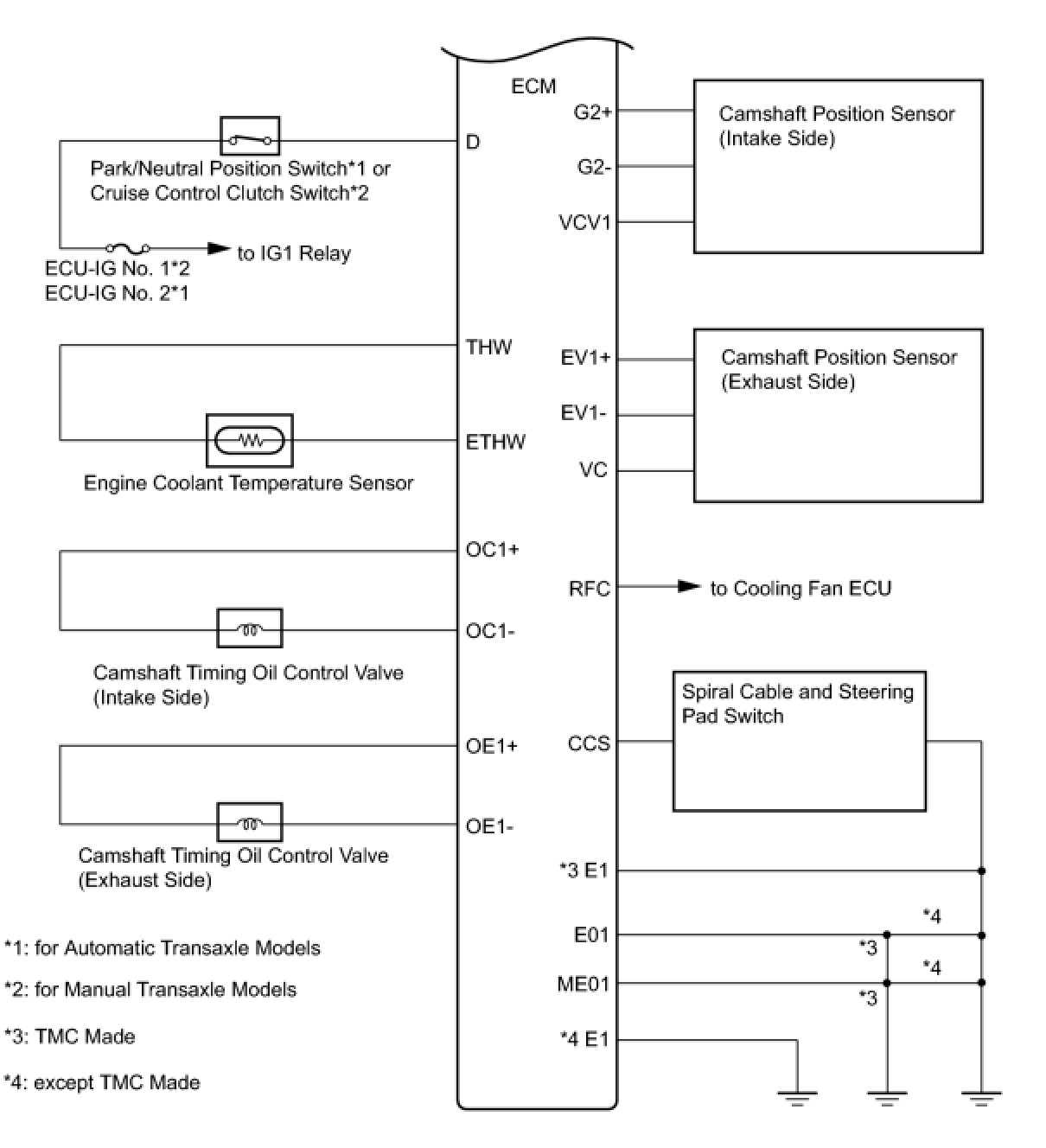

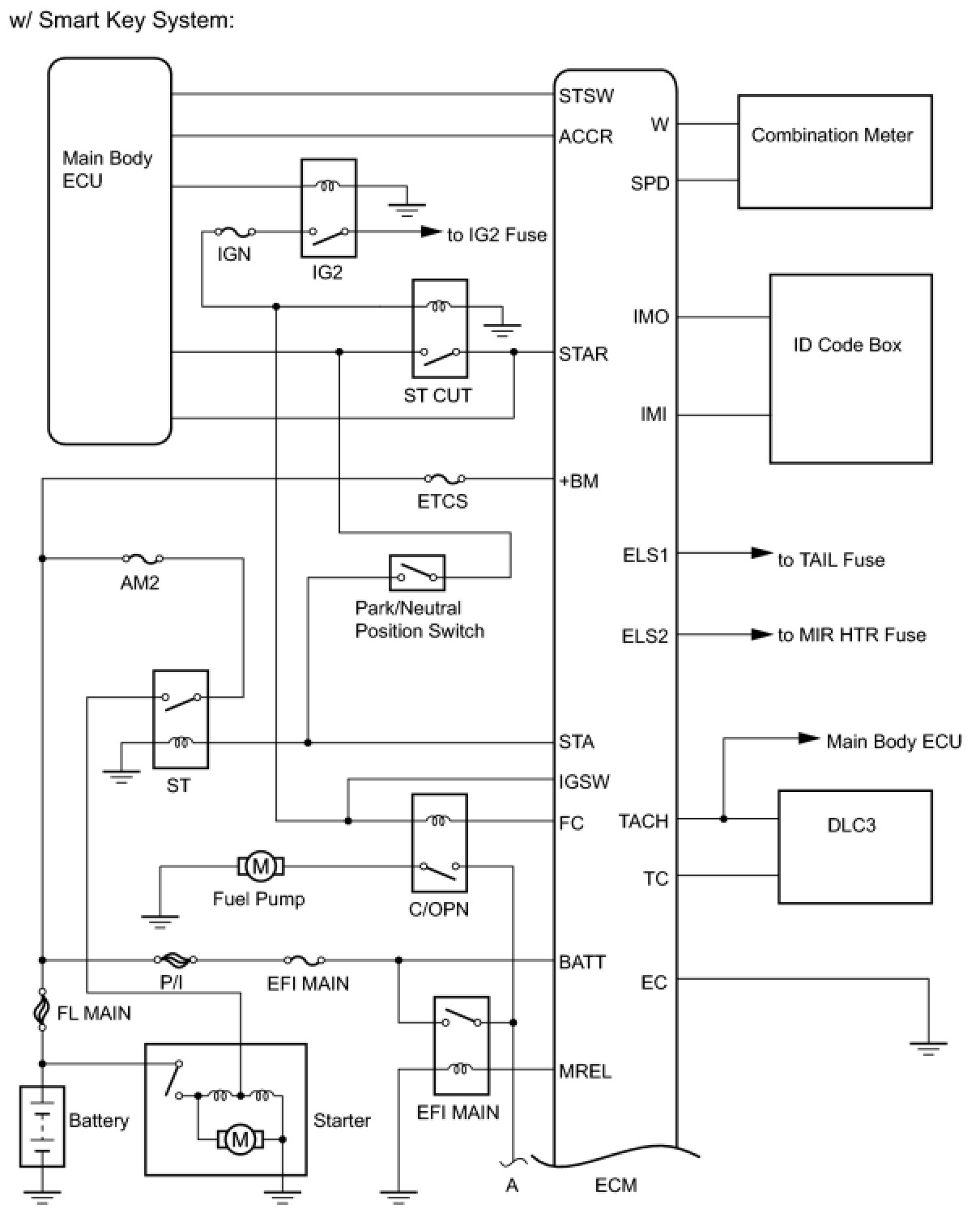

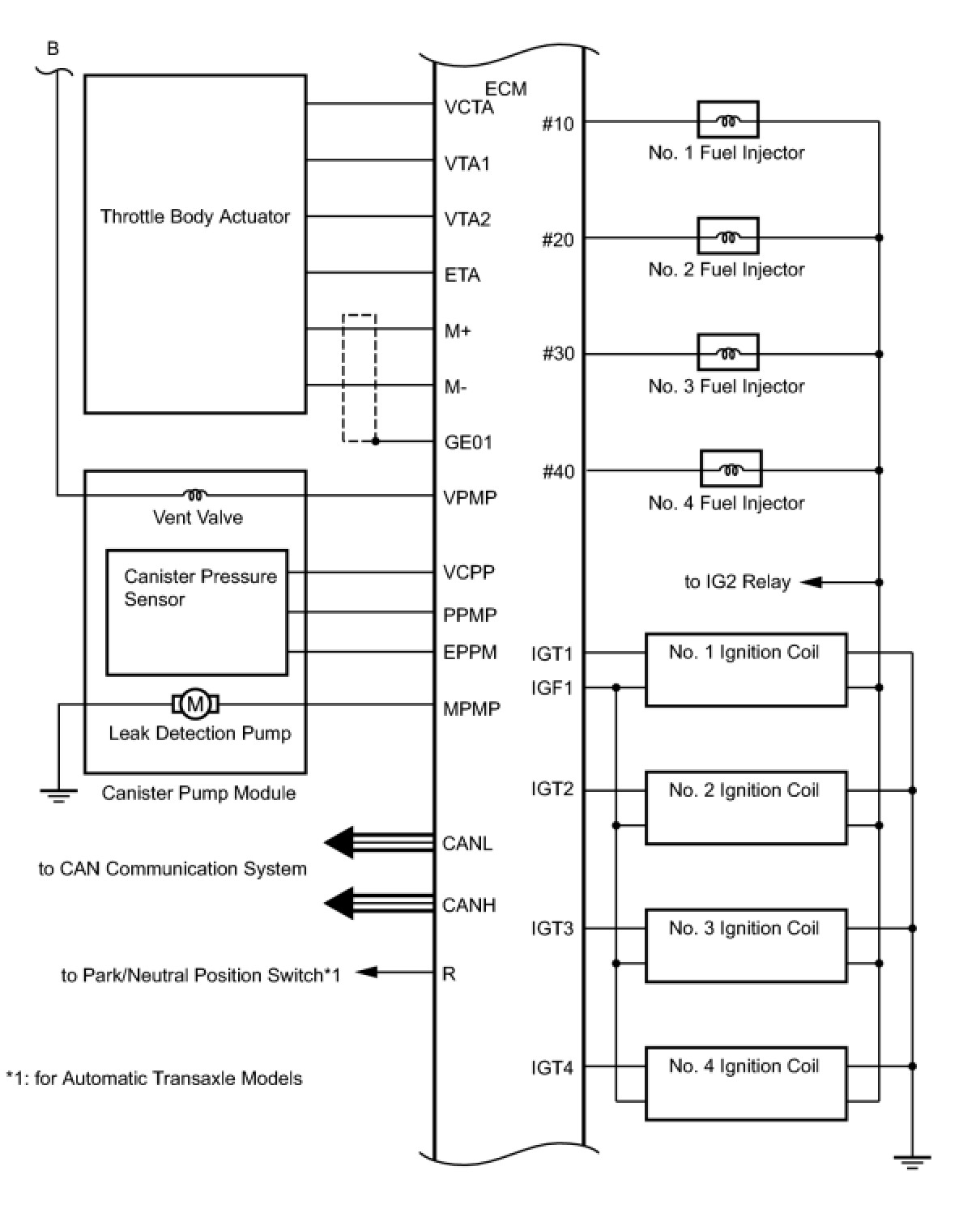

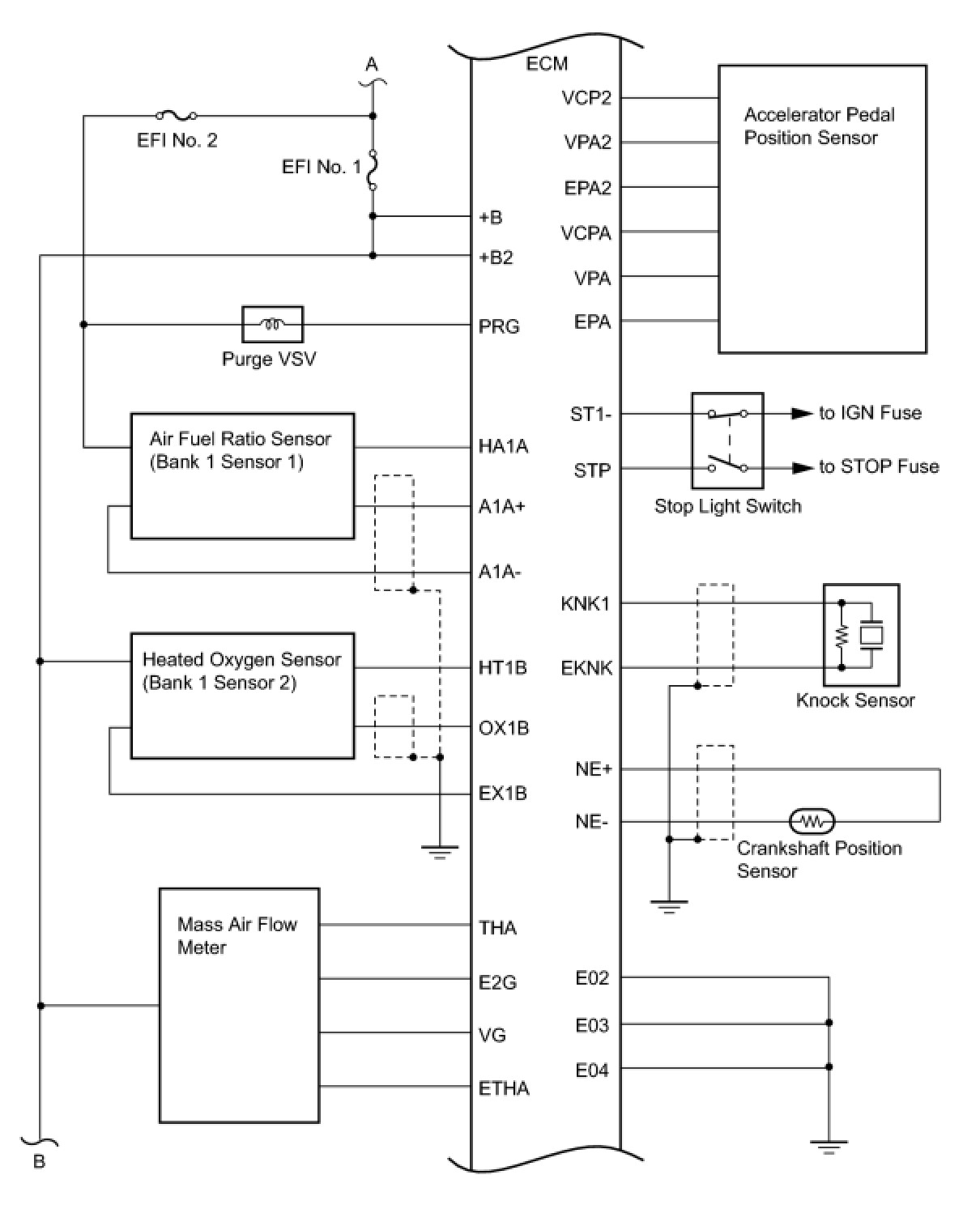

2ZR-FE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
