Heated Oxygen Sensor

2ZR-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: INSPECTION

INSPECTION





1. INSPECT HEATED OXYGEN SENSOR

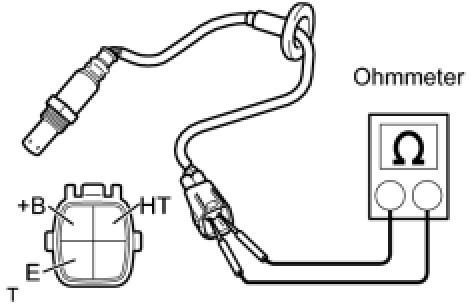

(a) Measure the resistance according to the value(s) in the table below.

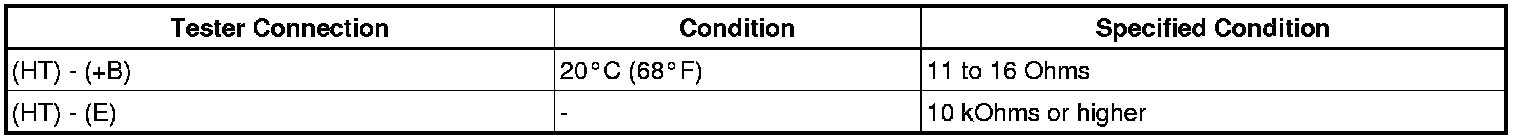

Standard Resistance:





If the result is not as specified, replace the heated oxygen sensor.
