Engine Control (Except TMC Made)

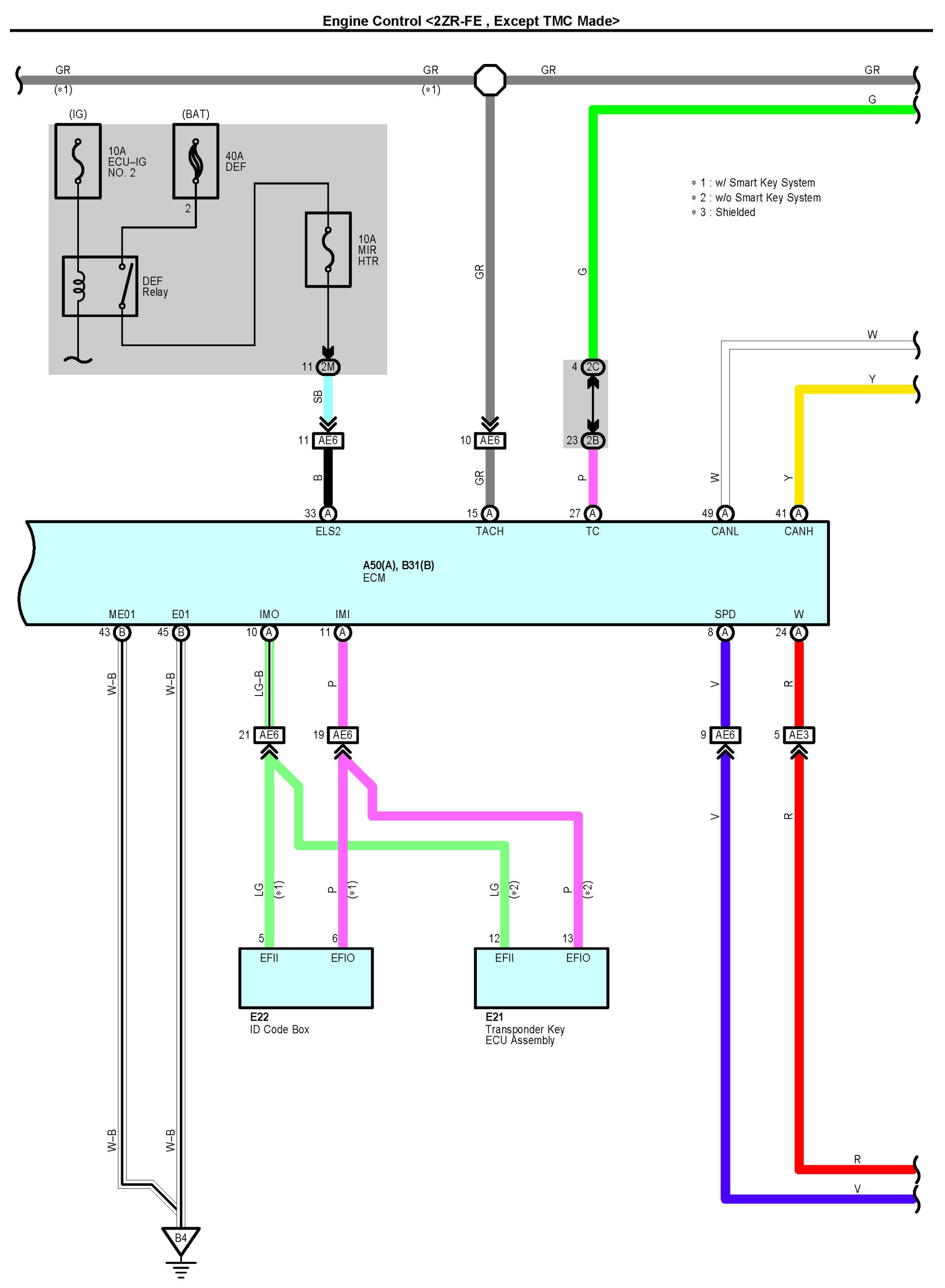

Engine Control <Except TMC Made> Part 10:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Next Diagram: Engine Control Part 11

Previous Diagram: Engine Control Part 9

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
